DIG 7X0A 4 Station Battery Operated Controller | 740A-000

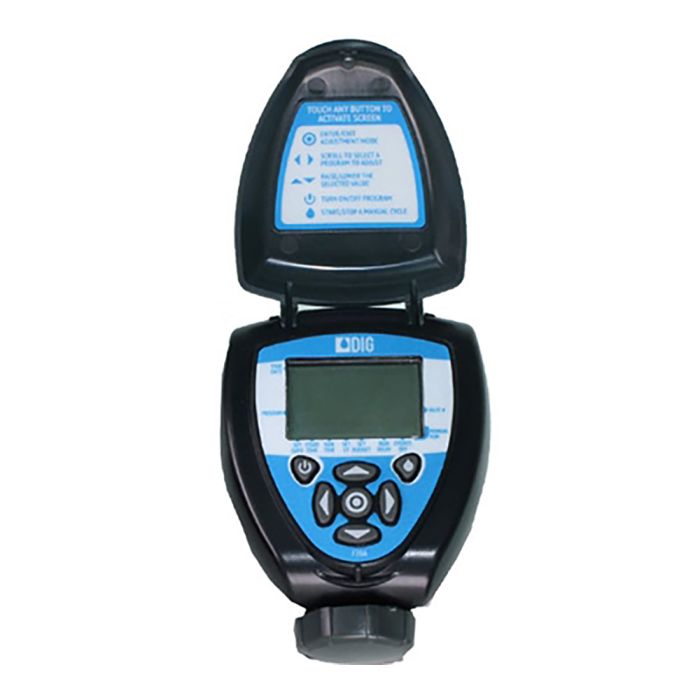

DIG 740A-000 4-Station DC Sprinkler Timer

DIG's waterproof battery operated controllers are designed for challenging sites without AC power for above or below grade installation. The controllers include wire connections for master valve, rain sensor, and up to six DC latching solenoids. Powered by two AA alkaline batteries that last for more than one season, this series offers economical and reliable results with programming versatility and operation simplicity.

The controllers each feature seven buttons with a large, easy-to-read display, EasyFlow navigation, simple icon-based programming with an AM/PM clock, four programs, five start times per day per program in weekly or cyclical operation, watering duration of up to 5 hours and fifty nine minutes in one minute increments per program, manual run by valve or by program, monthly budget, rain delay for up to 99 days, watering restriction by month, and 20 preset smart programs utilizing historical ET.

Combining one of the historical Evapotranspiration preset programs and a rain sensor can help seasonally adjust or prevent unnecessary watering.

• Type: DC Body: IP68
• Power source: two AA alkaline batteries
• Power input per valve: constant 11 volt
• Seven keypad buttons with integrated liquid crystal display
• Wire configurations: up to six 18 inch red wires labeled for each valve, one black wire for master valve, two white wires for common and one looped yellow wire for sensor connections
• Temperature range: 38F to +130F Sensor connection: normally closed 6 inchlooped yellow wire (16 AWG)
• Materials: high impact plastic

• Four programs with five start times per day
• Custom programming schedules with a weekly calendar, odd or even days of the month, or intervals from one to thirty (1-30) days utilizing yearly calendar with leap year
• Durations up to 5 hours and 59 minutes in one-minute increments 20 preset historical ET programs available for 10 climate zones, with 10 for drip irrigation and 10 for spray heads.
• Can be used with any irrigation setup and includes the option to review the new calculated duration
• Monthly seasonal adjustment that modifies the duration from 5% to 200% in 5% increments.
• Also can be used to fine-tune the preset ET program for each month Irrigation suspension (rain delay) for up to 99 days; resumes irrigation automatically
• Program Off button allows the user to turn off the controller and reactivate it as desired
• On/Off button allows the user to turn off the controller system or an individual program and reactivate it as desired
• Daily and monthly programming restriction feature allows controller to bypass irrigation schedules.
• Can be used to comply with city and municipal watering restrictions

• Powered by two AA alkaline batteries with a safe period of 60 seconds to replace batteries without losing settings
• Operates up to six stations, master valve, and a sensor Four Independent programs with five start times per each program see more
• Watering flexibility with a selection of watering frequencies that include weekly, odd or even days of the month, and cyclical with five start times per day per program
• Seven buttons with integrated large display Simple, icon based intuitive programming and EasyFlow navigation
• SimpleSmart historical ET feature for spray heads and drip irrigation that automatically adjusts irrigation schedules monthly
• Can operate any number of valves at the same time with up to three groups on six stations Low battery indicator
• Upon insertion of the batteries the controller follow a start-up sequence to test that each solenoid is close
• Supported by knowledgeable technical support team
• Three year warranty
• Displays if irrigation is scheduled for the day and if any of the additional programming features are active
• Irrigation suspension (rain delay) for up to 99 days Monthly water budgeting of up to 200 % in 5% increments
• Daily and monthly programming restriction options to comply with city and municipal watering restrictions
• After fifteen minutes the controller display turns off automatically to conserve energy
• Semi-automatic and manual operation by valve or by program
• On/Off button allows the user to turn off the controller system or an individual program and reactivate it as desired
• Brackets for solenoid and wall mounting options are included Utilizes RoHS compliant components Solenoid wires can be extended up to 100 feet (18 AWG) Reset option to return controller to default settings excluding time and date Non-volatile memory holds all programs indefinitely without batteries
• Completely waterproof (IP68) Easily retrofits to most manufacturers valves with DIG's S305 DC solenoid and one of DIG's seven adapters
