Febco 825Y RPZ Backflow Preventer 1-1/2 in. FPT | FE825Y-150

SKU
FE825Y-150
Free Shipping on Orders over $149
Sales Price $1,175.63 Our Price $1,687.95 You save 30%
Not Available
Not Available
Not Available

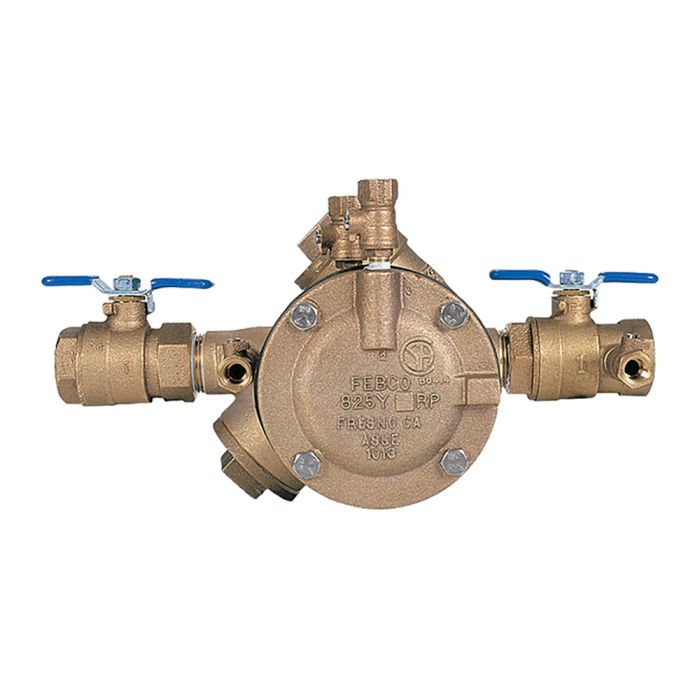

FEBCO? FE825Y-150 1-1/2 in. "Y" Pattern RPZ Backflow Preventer:

Series LF825Y "Y" Pattern Design Reduced Pressure Zone Assemblies are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. They feature a bronze body and threaded ball valve shutoffs. Maximum Working Pressure: 175psi (12.1 bar).

Pressure - Temperature
  • Maximum Working Pressure: 175psi (12.1 bar)
  • Hydrostatic Test Press: 350psi (24.1 bar)
  • Temperature Range: 32?F to 140?F (0?C to 60?C)
Materials
  • Valve Body: Cast Copper Silicon Alloy
  • Elastomers: Nitrile Seat Discs
  • Diaphragms: Nitrile, fabric reinforced
  • Springs: Stainless Steel
Approvals - Standards
  • AWWA C511 Conformance
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Typical Installation: FE825Y-150 1-1/2 in. "Y" Pattern RPZ Backflow Preventer
Features & Benefits
  • Ultimate mechanical protection of portable water, against hazards of cross connection contamination.
  • Meets all specifications of AWWA, ASSE, CSA and approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
  • Modular relief valve for ease of maintenance.
  • Simple Service procedures. All internal parts serviceable in line.
  • Low Head Loss.
  • Spring loaded "Y" type check valves.
  • Internal relief valve pressure sensing passages.
  • Replaceable seat rings on all sizes.
  • End connection - NPT ANSI / ASME B1.20.1
More Information
Brand Febco
Test Cocks 4 FEMALE
Max Working Pressure 175 PSI
Hydrostatic Test Pressure 350 PSI
Temperature Range 32F to 140F
Main Valve Body Materials Bronze
Relief Valve Body Bronze
Elastomers Nitrile
Diaphragms Nitrile, Fabric reinforced
Springs Stainless Steel
Warranty 1 Year
Size 1-1/2 in.
Connection FPT
Lead Free Not Lead Free
Specifications (224.64 kB)
