Hunter I-20 Rotor with Check Valve and Pressure Regulator 6 in. | I20-06-PRB

SKU

I20-06-PRB

Sales Price $29.10 Our Price $52.89 You save 45%

Quantity of 20

$28.52 / each

Overview

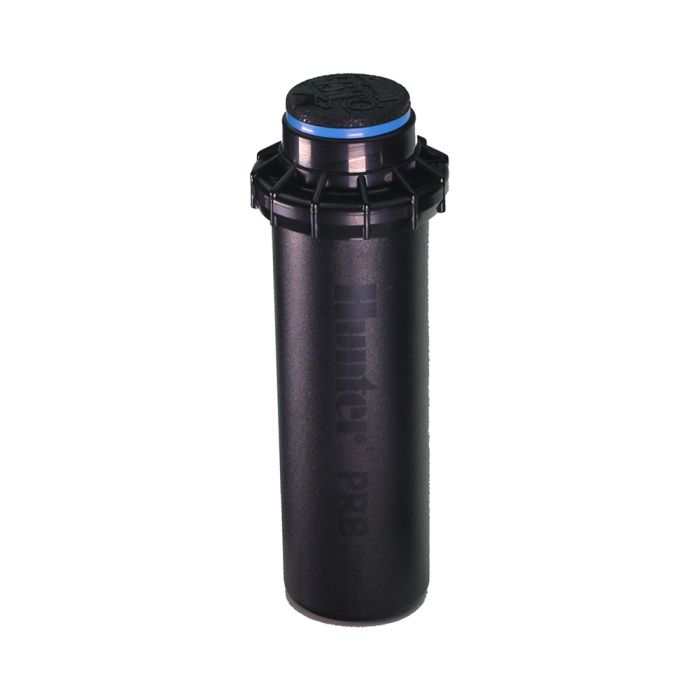

Hunter I-20 Rotor with Check Valve and Pressure Regulator 6 in.

Pop-Up Height: 6 in.
Type: Pressure Regulated Body
Spray Pattern: Part Circle Adjustable (50 - 360)

Features & Benefits

The PGP-04 and I-20 pressure regulated bodies will take incoming pressures of 50-100 PSI and reduce them to 45 PSI. The Hunter PRB rotors allow the nozzles to operate at peak efficiency, saving up to 25 percent more water. Having the pressure regulator in the body allows it to remain in place and functional even if the original riser is removed and replaced for service.

Models: PGP Ultra: 4", I-20: 4", 6"
Arc setting: 50 to 360 degrees
Factory installed rubber cover
Through-the-top arc adjustment
QuickCheck arc mechanism
Water lubricated gear-drive
Warranty period: 5 years
Includes: set of 12 nozzles (8 standard and 4 low angle), 1 adjustment tool per order.

Product Details

Radius: 17' to 46'
Flow rate: 0.36 to 9.8 GPM
Nozzle discharge pressure: 45 PSI
Operating pressure range: 55 to 100 PSI
Precipitation rates: 0.4 in/hr approx.
Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
Overall Height: 10-5/8"
Pop-up Height: 6"
Exposed Diameter: 1-3/4"
Inlet Size: 3/4"

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	Hunter
Type	Pressure Regulated Rotor
Application	Residential And Commercial
Body Height	9-7/8
Inlet Size	3/4 in.
Pressure Range (PSI)	25-70
Warranty	5 Years
Spray Pattern	Part Circle Adjustable (50 - 360)
Spray Radius	17 ft. - 46 ft.
Advanced Features	Check Valve, Pressure Regulation, Flow Shut-Off
Series	I20
Pop-Up Height	6 in.
Riser Material	Plastic
Check Valve	Check Valve
