Hunter I-20 Stainless Steel Rotor with Check Valve and Pressure Regulator 6 in. | I20-06-SS-PRB

SKU
I20-06-SS-PRB
Free Shipping on Orders over $149
Sales Price $36.21 Our Price $65.00 You save 44%
Quantity of 20
$34.06 / each

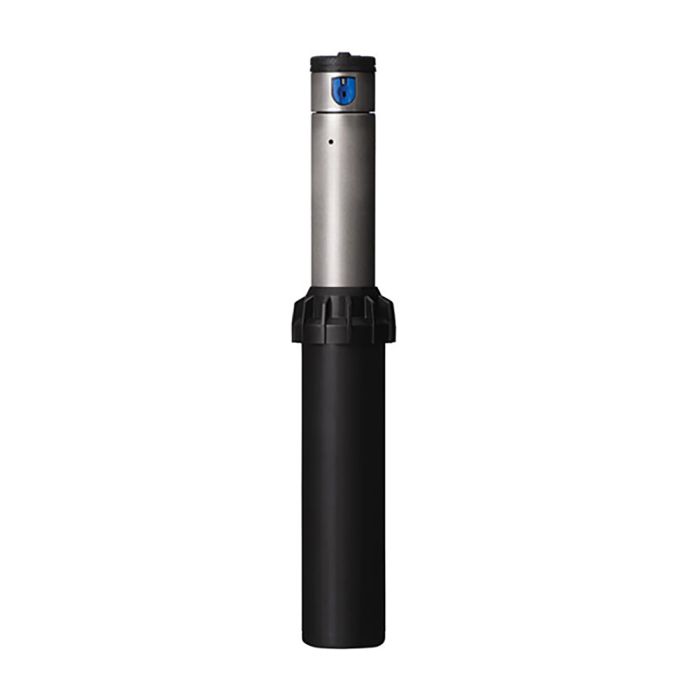

Hunter I-20 Stainless Steel Rotor with Check Valve and Pressure Regulator 6 in.

  • Pop-Up Height: 6 in.
  • With pressure regulation
  • Spray Pattern: Part Circle Adjustable (50 - 360)

Features & Benefits

The PGP-04 and I-20 pressure regulated bodies will take incoming pressures of 50-100 PSI and reduce them to 45 PSI. The Hunter PRB rotors allow the nozzles to operate at peak efficiency, saving up to 25 percent more water. Having the pressure regulator in the body allows it to remain in place and functional even if the original riser is removed and replaced for service.

  • Models: PGP Ultra: 4", I-20: 4", 6"
  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • QuickCheck arc mechanism
  • Water lubricated gear-drive
  • Warranty period: 5 years
  • Includes: set of 12 nozzles (8 standard and 4 low angle). 1 adjustment tool per order.

Product Details

  • Radius: 17' to 46'
  • Flow: 0.36 to 9.8 GPM
  • Nozzle discharge pressure: 45 PSI
  • Operating pressure range: 55 to 100 PSI
  • Precipitation rates: 0.4 in/hr approximately
  • Nozzle trajectory: Std = 25°, Low Angle = 13°
More Information
Brand Hunter
Type Rotor
Application Residential And Commercial
Body Height 9-7/8
Inlet Size 3/4 in.
Pressure Range (PSI) 25-70
Warranty 5 Years
Spray Pattern Part Circle Adjustable (50 - 360)
Spray Radius 17 ft. - 46 ft.
Advanced Features Check Valve, Pressure Regulation, Flow Shut-Off
Series I20
Pop-Up Height 6 in.
Riser Material Stainless Steel
Check Valve Check Valve
Specifications (499.79 kB)
