Hunter ICV Inline Valve with Flow Control 1 in. FPT | ICV-101G

SKU
ICV-101G
Sales Price $93.37 Our Price $159.19 You save 41%

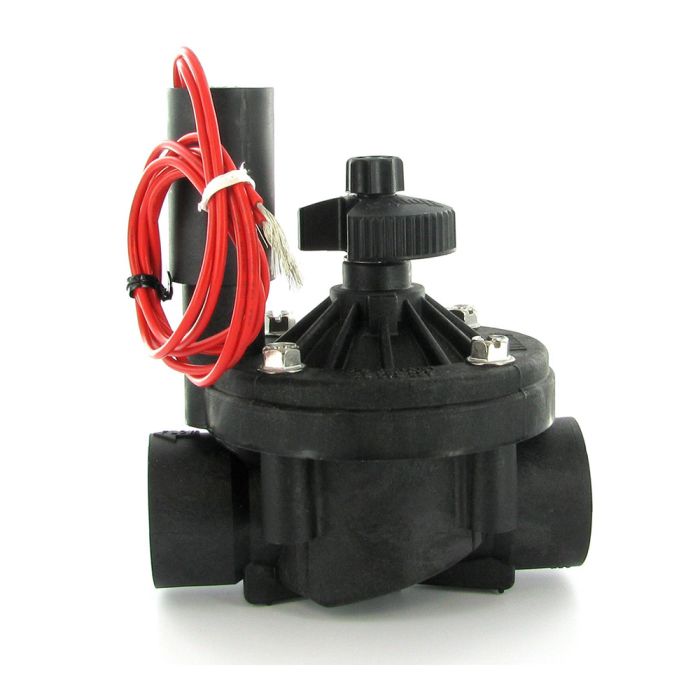

Hunter ICV-101G 1 in. FPT Valve with Flow Control

  • 1" Hunter ICV-101G Valve
  • With Flow Control
  • 1" Female Threaded Inlet/ Outlet

Features & Benefits

The Hunter ICV Series Irrigation Valve: An Industrial Strength Plastic Sprinkler Valve that Offers Superior Durability. The Hunter ICV commercial sprinkler valve is a prime example of today's technological capabilities. This new irrigation and sprinkler valve is as rugged, durable and reliable as any commercial sprinkler valve on the market, even those made of solid brass.

The Hunter ICV-Series Valve can withstand a pressure rating of up to 200 psi and can handle the continual hammering that such forces will produce. The Hunter ICV-Series Valve is designed to handle the wide range of conditions that different commercial sites will bring; this irrigation valve offers a fabric reinforced diaphragm that provides flow control as a standard feature.

In addition; the Hunter ICV Valve is extremely easy to service; since the valve's bonnet fasteners can be loosened and tightened using a variety of common contractor tools. For a long-lasting valve that can deliver reliable performance in commercial sprinkler and irrigation systems, this is the heavy duty workhorse you're after.

  • Glass-filled nylon construction: 200 psi rated for maximum strength and sturdiness
  • External and Internal manual bleed allows quick and easy "at the valve" activation
  • Double-beaded diaphragm seal design assures leak-free performance
  • Fabric reinforced diaphragm ensures greater performance in all water condition and provides reliable operation up to 200 psi
  • Optional DC latching solenoids enable Hunter's battery-powered controllers
  • Captive bonnet bolts provide hassle-free valve maintenance
  • Low flow capability allows for use of Hunter's micro irrigation products
  • Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
  • Optional Filter Sentry system automatically cleans the filter
  • Optional Accu-Sync pressure regulator maintains a safe, constant water pressure level
  • Temperature Rating: 150°F (66°F)
  • Warranty period: 5 Years

Product Details

  • ICV-101G: 0.1 to 40 GPM
  • ICV-151: 20 to 150 GPM
  • ICV-201G: 40 to 200 GPM
  • ICV-301: 150 to 300 GPM
  • Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles

ICV-101G

  • Inlet Diameter: 1"
  • Height: 5½"
  • Length: 4¾"
  • Width: 4"

ICV-151

  • Inlet Diameter: 1½"
  • Height: 7⅛"
  • Length: 6⅞"
  • Width: 5½"

ICV-201G

  • Inlet Diameter: 2"
  • Height: 7⅛"
  • Length: 6⅞"
  • Width: 5½"

ICV-301

  • Inlet Diameter: 3"
  • Height: 10¾"
  • Length: 9"
  • Width: 7⅜"

Filter Sentry



Hunter ICV Pressure Loss Charts
GPM 1" 1 ½" 2" GLOBE ANGLE
0.1 2.0 - - - -
0.5 2.0 - - - -
1.0 2.0 - - - -
5.0 4.0 - - - -
10.0 3.0 - - - -
15.0 4.0 - - - -
20.0 3.0 1.5 - - -
30.0 4.0 1.5 - - -
40.0 7.0 1.7 0.8 - -
50.0 - 2.2 1.2 - -
60.0 - 3.0 1.7 - -
75.0 - 3.9 2.4 - -
90.0 - 5.5 3.2 - -
100.0 - 7.0 4.2 - -
120.0 - 10.9 6.5 - -
135.0 - 12.7 7.9 - -
150.0 - 16.2 9.8 2.5 1.9
175.0 - - 13.3 3.0 2.4
200.0 - - 17.7 4.1 3.3
225.0 - - - 5.3 4.3
250.0 - - - 6.7 5.5
275.0 - - - 8.3 6.9
300.0 - - - 10.1 8.5



Related Articles & Videos

Articles

Videos

More Information
Brand Hunter
Product Type Inline Valves
Body Material Glass-Filled Nylon
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Application Residential and Commercial
Solenoid Yes
Warranty 5 Years
Size 1 in.
Brochure (279.31 kB)
Cutsheet (433.52 kB)
Specifications (203.64 kB)
