Hunter ICV Inline Valve with Flow Control 2 in. FPT | ICV-201G

Name: Hunter ICV Inline Valve with Flow Control 2 in. FPT | ICV-201G
Brand: Hunter
SKU: ICV-201G
Price: 144.33 USD
Availability: InStock

SKU

ICV-201G

Sales Price $144.33 Our Price $297.95 You save 52%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

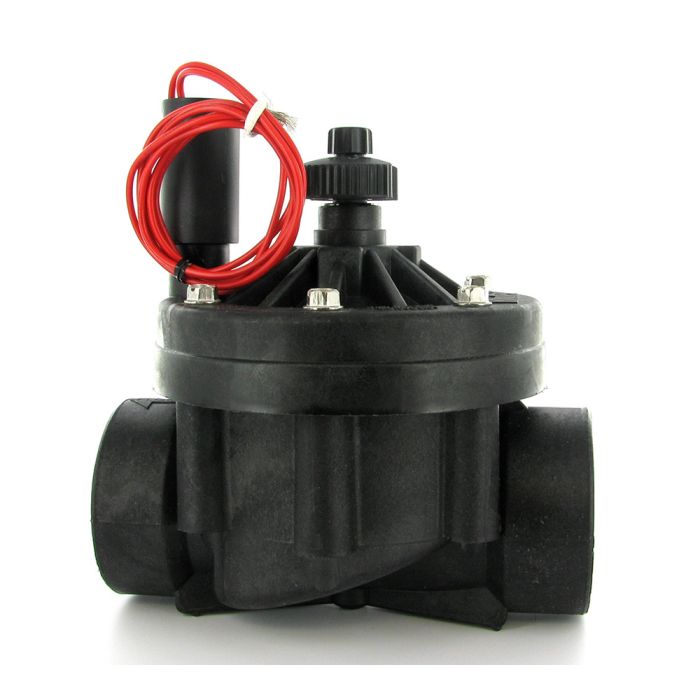

Hunter ICV-201G 2 in. Valve with Flow Control

2" Hunter ICV-151G Valve
With Flow Control
2" Female Threaded Inlet/ Outlet

Features & Benefits

The Hunter ICV Series Irrigation Valve: An Industrial Strength Plastic Sprinkler Valve that Offers Superior Durability

The Hunter ICV commercial sprinkler valve is a prime example of today's technological capabilities. This new irrigation and sprinkler valve is as rugged, durable and reliable as any commercial sprinkler valve on the market, even those made of solid brass. The Hunter ICV-Series Valve can withstand a pressure rating of up to 200 psi and can handle the continual hammering that such forces will produce. The Hunter ICV-Series Valve is designed to handle the wide range of conditions that different commercial sites will bring; this irrigation valve offers a fabric reinforced diaphragm that provides flow control as a standard feature. In addition; the Hunter ICV Valve is extremely easy to service; since the valve's bonnet fasteners can be loosened and tightened using a variety of common contractor tools. For a long-lasting valve that can deliver reliable performance in commercial sprinkler and irrigation systems, this is the heavy duty workhorse you're after.

Glass-filled nylon construction: 200 psi rated for maximum strength and sturdiness
External and Internal manual bleed allows quick and easy "at the valve" activation
Double-beaded diaphragm seal design assures leak-free performance
Fabric reinforced diaphragm ensures greater performance in all water condition and provides reliable operation up to 200 psi
Optional DC latching solenoids enable Hunter's battery-powered controllers
Captive bonnet bolts provide hassle-free valve maintenance
Low flow capability allows for use of Hunter's micro irrigation products
Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
Optional Filter Sentry system automatically cleans the filter
Optional Accu-Sync pressure regulator maintains a safe, constant water pressure level
Temperature Rating: 150°F (66°F)
Warranty period: 5 Years

Product Details

Operating Specifications

ICV-101G: 0.1 to 40 GPM
ICV-151: 20 to 150 GPM
ICV-201G: 40 to 200 GPM
ICV-301: 150 to 300 GPM
Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles

Dimensions

ICV-101G

Inlet Diameter: 1"
Height: 5½"
Length: 4¾"
Width: 4"

ICV-151

Inlet Diameter: 1½"
Height: 7⅛"
Length: 6⅞"
Width: 5½"

ICV-201G

Inlet Diameter: 2"
Height: 7⅛"
Length: 6⅞"
Width: 5½"

ICV-301

Inlet Diameter: 3"
Height: 10¾"
Length: 9"
Width: 7⅜"

Filter Sentry

HUNTER ICV PRESSURE LOSS CHARTS
GPM	1"	1 ½"	2"	GLOBE	ANGLE
0.1	2.0	-	-	-	-
0.5	2.0	-	-	-	-
1.0	2.0	-	-	-	-
5.0	4.0	-	-	-	-
10.0	3.0	-	-	-	-
15.0	4.0	-	-	-	-
20.0	3.0	1.5	-	-	-
30.0	4.0	1.5	-	-	-
40.0	7.0	1.7	0.8	-	-
50.0	-	2.2	1.2	-	-
60.0	-	3.0	1.7	-	-
75.0	-	3.9	2.4	-	-
90.0	-	5.5	3.2	-	-
100.0	-	7.0	4.2	-	-
120.0	-	10.9	6.5	-	-
135.0	-	12.7	7.9	-	-
150.0	-	16.2	9.8	2.5	1.9
175.0	-	-	13.3	3.0	2.4
200.0	-	-	17.7	4.1	3.3
225.0	-	-	-	5.3	4.3
250.0	-	-	-	6.7	5.5
275.0	-	-	-	8.3	6.9
300.0	-	-	-	10.1	8.5

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	Hunter
Body Material	Glass-Filled Nylon
Flow Control	Flow Control
Valve Type	In-Line
Connection	FPT
Type	Inline Valve
Application	Residential and Commercial
Solenoid	Yes
Warranty	5 Years
Size	2 in.
