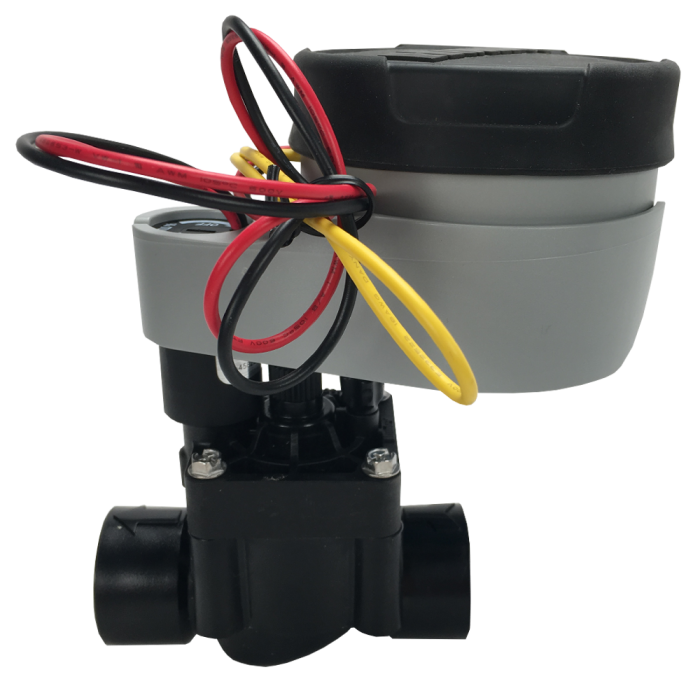

Includes 1 Valve (PGV-101G) and 1 DC Latching Solenoid
1" Hunter PGV-101G Valve
With Flow Control
1" Female Threaded Inlet/ Outlet
For isolated sites, power-restricted areas, or the special needs of drip zones, the Hunter Node is the smart, reliable solution. The Node mounts to a valve solenoid quickly and easily, and without screws, drills or additional wires. The unit's solid construction and waterproof exterior ensure it can handle the harsh environment of a valve box. Once placed in a valve box, the Node is operated by one or two 9V batteries, which provide standard or extended power throughout the season. Along with exceptional reliability, the Node features an easy-to-program LCD screen, the ability to control a Master Valve, and uses standard Hunter controller programming with 3 programs and 4 start times per program. The array of programming options and rugged reliability make the Node a compact, but powerful irrigation controller with the flexibility of battery power.
Features & Benefits
Standard Hunter controller programming. As easy to program as any other Hunter controller. 3 programs (A, B, C) and up to 4 start times each
Control up to six zones. Models available in 1, 2, 4, and 6 station operation
Waterproof and fully submersible to 12 ft. No moisture intrusion, even in flooded valve box environments
Long battery life. Operates on one or two 9 volt batteries to ensure long operation
Rain Sensor compatible. Ensure irrigation does not occur during rain events by connecting a Rain sensor
Master Valve compatible. Ability to operate a master valve (only available with 2, 4, or 6 station models)
Compatible with Hunter Solar Panel. Maintenance free operation and no need to change or check battery condition
Seasonal Adjustment (10-150%) allows for quick changes to all run times through a percentage scale
Controller: 3-1/2 in. diameter, 2-1/2 in. tall
Heavy-duty Hunter solenoid: Provides dependable operation and long life
High grade construction, 150 PSI rating: Made of durable materials to resist wear
External and Internal manual bleed: Easy to use and keeps valve box dry. All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
Rigid diaphragm support: Works to prevent stress failure in tough conditions, ensures leak-free performance
Globe and angle configurations: Easy to use in any application
Captive bonnet bolts and solenoid plunger: No lost parts during servicing
Low flow capability allows use of Hunter's micro irrigation products
Accu-Sync pressure regulator compatible: Dial setting pressure regulation for precise system control
Temperature rating: 150°F
Warranty period: 2 years
Standard controller programming wth 3 programs and 4 start times each
Max run time of 6 hours
Seasonal adjustment 10-150%
Accepts single or double 9 volt batteries for extended life
Battery Life Indicator
Master Valve Operation (available on 2, 4, 6 station models)
Compatilbe with Hunter Clik Sensors and other micro-switch type weather sensors (wirleess sensors not compatible)
Sensor Bypass Function
Waterproof to 12 ft.
Easy Retrieve Memory
Compatible with Hunter Solar Panel
The Choice for New Installations or Retrofits
The Hunter Node is an easy addition to an existing system or the ideal choice for an entirely new one. For that extra zone you have that's not wired to your present controller, simply purchase a NODE-100 and attach it to the valve quickly and easily. Or, if you're installing irrigation for the first time in an area that has no direct power access, simply order the Node factory-installed on a PGV 1 in. flow control valve.
Single or Double 9V Battery Life with Constant Readout
When it comes to battery-powered controllers, there are generally two common issues that inevitably arise. The first is that one 9V battery may not last through a season. The second is that it is difficult to know how much battery life a unit has left without laborious tracking. The Node solves both of these problems with two smart innovations: The option to add a second 9V battery for extended power, and a battery life-status indicator on the LCD display. With battery life guaranteed to last through an entire season and a constant power-level readout, the need for in-season replacement becomes eliminated, and allows operators to install a new battery only when it is absolutely necessary. For maintenance-free operation year-round, the optional Solar Panel can be added to Node quickly and easily.
The NODE is fully submersible and resists all moisture intrusion in water, mud, and debris as deep as 12 ft.
Control A Single Zone The Easy Way With The Hunter NODE 1 Station Battery Operated Controller
Learn More About The Innovative Hunter PGV-101G Valve
The NODE-100-Valve includes one of Hunter's best irrigation valves; the PGV-101G. This valve has 1-inch connections that are female threaded. The PGV series is known for its long-lasting and reliable solenoid as well as flow control capabilities. The included DC latching solenoid provides dependable operation and long life for your NODE-100-Valve product.
Key Components Of The Node-100 Valve
Select Programming Function
Control Selected Display
Advance The Selected Display
Navigate Previous Displays
Check Out The Node-100 Controller Features And Benefits
The NODE-100 controller is a small, durable device that is designed to control a single valve. This battery-operated controller is water-resistant and built to last. The long battery life allows the customers to keep their irrigation system running with 9-volt batteries. The NODE-100 is compatible with Hunter's innovative line of rain sensors and solar panels.
Learn How To Program A Hunter Node 100 Controller From Our Tutorials
Sprinkler Warehouse provides how-to guides and Hunter's 100-NODE controller manual to assist our customers with programming and accessories connections. Work faster and smarter with the two-in-one NODE-100-Valve combo. The NODE-100-Valve has the capability to operate a single station, allowing for complete control of that zone and its watering times. To learn more about this innovative controller and valve combination, check out Sprinkler School's articles and video tutorial series.
Why Choose The Node-100 Valve For Your Irrigation Needs
When water irrigation is necessary for isolated sites or power-restricted areas, the Hunter Node controller is a reliable solution. The NODE-100-Valve product includes the single station battery-operated controller, PGV-101G valve, a rubber controller face cover, and durable plastic mounting parts for easy installation. This product can easily fit a round a standard-sized valve box and is designed for water resistance and long-lasting operation.
Frequently Asked Questions
What size valve is the NODE-100-Valve?
The NODE-100-Valve product includes the Hunter PGV-101G valve. This valve has a 1-inch female threaded inlet and outlets for easy installation to PVC pipes and adapters. While other NODE controller models are available for purchase at Sprinkler Warehouse, the NODE and valve combo is currently only available with the PGV-101G Hunter valve.
Is the NODE-100-Valve battery or solar powered?
As a base product, the NODE-100 is a battery-operated controller that requires the use of 9-volt batteries to operate. However, the controller is compatible with the optional Hunter solar panel accessory. This add-on accessory allows for maintenance-free operation by replacing the need for batteries. The Solar Panel accessory is available for purchase, separately at Sprinkler Warehouse and comes fully charged out of the box so our customers can get to work watering their properties instantly.
Does the NODE-100-Valve have flow control?
Yes, the NODE-100-Valve has flow control and low flow capability that works well with Hunter's micro-irrigation products. As a single station controller and valve combo, this product is a great solution for drip irrigation landscapes and more. The flow specs for this product are 0.2 to 120 GPM (0.04 to 27.2 m3/hr; 0.7 to 454.2 l/min).
