Hunter PGJ Rotor 6 in. | PGJ-06

SKU

PGJ-06

Sales Price $19.95 Our Price $39.99 You save 50%

Quantity of 25

$19.07 / each

Overview

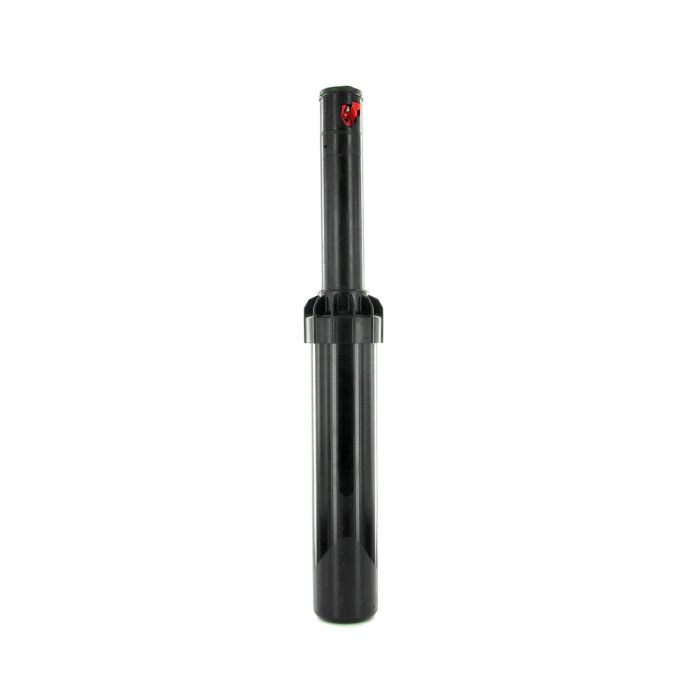

Hunter PGJ Rotor 6 in.

Hunter PGJ Rotor
No Check Valve
Pop-Up Height: 6 inches

Features & Benefits

The PGJ was built to bring all the efficient benefits of rotary sprinklers to applications that typically call for a spray. Its many features include a rack of easy-to-install-and-change, water-efficient nozzles, easy arc adjustment, and all the safety and durability that comes with a rubber cover.

The PGJ is capable of working in tandem with larger rotors to combine big and small areas in a single zone, offering a convenience and efficiency that sprays do not. When used in the right application, the PGJ allows fewer heads to perform more efficiently at a more economical price.

Models: 6"
Arc setting: 40 to 360 degrees
Nozzle choices: 8
Nozzle range: 0.75 to 5.0
Standard factory installed nozzle: 2.0 only
Factory installed rubber cover
Through-the-top arc adjustment
Quick check arc mechanism
Water lubricated gear-drive
1 adjustment tool per shipment

Product Details

Radius: 15' to 37'
Flow rate: 0.64 to 5.3 GPM
Recommended pressure range: 30 to 50 PSI
Operating pressure range: 20 to 100 PSI
Precipitation rates: 0.6 in/hr approx.
Nozzle trajectory: 14 degrees approx.
Overall Height: 9-1/8"
Pop-up Height: 6"
Exposed Diameter: 1-1/8"
Inlet Size: ½" female NPT

Related Articles & Videos

Articles

Videos

PGJ Red Nozzle Performance Data
NOZZLE	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
.75
	30	15	0.64	0.55	0.63
	40	16	0.75	0.56	0.65
	50	17	0.85	0.57	0.65
1.0
	30	18	0.85	0.51	0.58
	40	19	1.0	0.53	0.62
	50	19	1.1	0.59	0.68
1.5
	30	21	1.3	0.57	0.66
	40	22	1.5	0.60	0.69
	50	22	1.7	0.68	0.78
2.0
	30	24	1.7	0.57	0.66
	40	25	2.0	0.62	0.71
	50	25	2.3	0.71	0.82
2.5
	30	27	2.2	0.58	0.67
	40	28	2.5	0.61	0.71
	50	28	2.8	0.69	0.79
3.0
	30	30	2.5	0.53	0.62
	40	31	3.0	0.60	0.69
	50	31	3.4	0.68	0.79
4.0
	30	33	3.7	0.65	0.76
	40	34	4.0	0.67	0.77
	50	34	4.3	0.72	0.83
5.0
	30	36	4.7	0.70	0.81
	40	37	5.0	0.70	0.81
	50	37	5.3	0.75	0.86
Bold = Recommended pressure
Note: All precipitation rates calculated for 180° operation. For the precipitation rate for a 360° sprinkler, divide by 2.

Specs

More Information
Brand	Hunter
Product Type	Rotors
Application	Residential
Body Height	9-1/8
Inlet Size	1/2 in.
Pressure Range (PSI)	30-50
Warranty	2 Years
Spray Pattern	Part Circle Adjustable (40 - 360)
Spray Radius	15 ft. - 37 ft.
Series	PGJ
Pop-Up Height	6 in.
Riser Material	Plastic
Check Valve	No Check Valve
