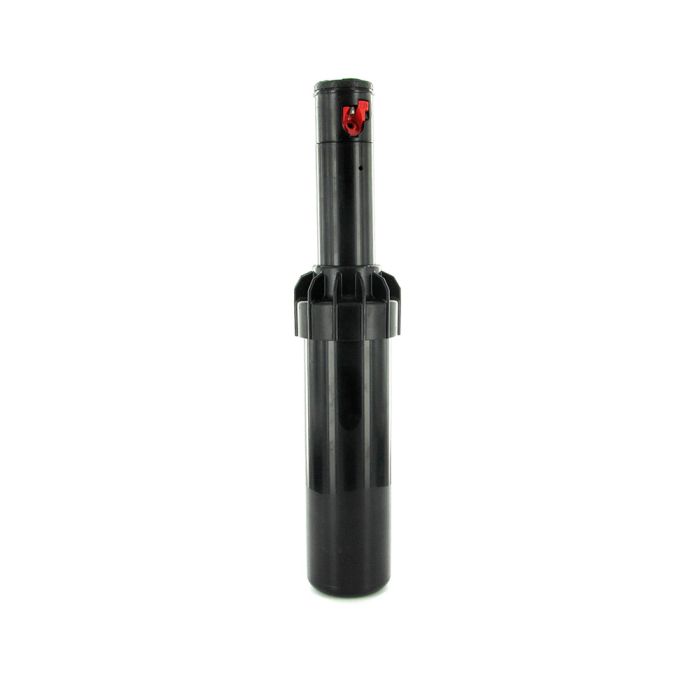

Hunter PGJ Rotor 4 in. | PGJ-04

Name: Hunter PGJ Rotor 4 in. | PGJ-04
Brand: Hunter
SKU: PGJ-04
Price: 11.95 USD
Availability: InStock

SKU

PGJ-04

Sales Price $11.95 Our Price $26.20 You save 54%

Quantity of 25

$11.95 / each

Overview

Hunter PGJ Rotor 4"

Overview

Hunter PGJ Rotor
No Check Valve
Pop-Up Height: 4 inches

Features & Benefits

The PGJ was built to bring all the efficient benefits of rotary sprinklers to applications that typically call for a spray. Its many features include a rack of easy-to-install-and-change, water-efficient nozzles, easy arc adjustment, and all the safety and durability that comes with a rubber cover.

The PGJ is capable of working in tandem with larger rotors to combine big and small areas in a single zone, offering a convenience and efficiency that sprays do not. When used in the right application, the PGJ allows fewer heads to perform more efficiently at a more economical price.

Models: 4"
Arc setting: 40 to 360 degrees
Nozzle choices: 8
Nozzle range: 0.5 to 4.0
Standard factory installed nozzle: 2.0 only
Factory installed rubber cover
Through-the-top arc adjustment
Quick check arc mechanism
Water lubricated gear-drive
1 adjustment tool per shipment
Product Details
Radius: 15' to 37'
Flow rate: 0.64 to 5.3 GPM
Recommended pressure range: 30 to 50 PSI
Operating pressure range: 20 to 100 PSI
Precipitation rates: 0.6 in/hr approx.
Nozzle trajectory: 14 degrees approx.
Overall Height: 7-1/8"
Pop-up Height: 4"
Exposed Diameter: 1-1/8"
Inlet Size: 1/2" female NPT

PGJ PERFORMANCE DATA
Nozzle	Pressure PSI	Radius ft.	Flow GPM	Precip ∎	in/hr ∆
0.50	30	14	0.42	0.41	0.48
	40	15	0.50	0.43	0.49
	50	16	0.58	0.44	0.50
0.75	30	15	0.64	0.55	0.63
	40	16	0.75	0.56	0.65
	50	17	0.85	0.57	0.65
1.0	30	18	0.85	0.51	0.58
	40	19	1.0	0.51	0.59
	50	19	1.11	0.57	0.66
1.5	30	21	1.3	0.57	0.66
	40	22	1.5	0.60	0.69
	50	22	1.7	0.67	0.77
2.0	30	24	1.7	0.55	0.64
	40	25	2.0	0.62	0.71
	50	25	2.3	0.71	0.82
2.5	30	27	2.2	0.58	0.67
	40	28	2.5	0.60	0.69
	50	28	2.8	0.68	0.79
3.0	30	30	2.5	0.53	0.62
	40	31	3.0	0.60	0.69
	50	31	3.4	0.68	0.79
4.0	30	33	3.7	0.65	0.76
	40	33	4.0	0.71	0.82
	50	34	4.3	0.72	0.83

Bold = Recommended Pressure

Note: All precipitation rates are calculated for 180º operation. For the precipitation rate for a 360º sprinkler, divide by 2.

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	Hunter
Product Type	Rotors
Application	Residential
Body Height	7-1/8
Inlet Size	1/2 in.
Pressure Range (PSI)	30-50
Warranty	2 Years
Spray Pattern	Part Circle Adjustable (40 - 360)
Spray Radius	15 ft. - 37 ft.
Series	PGJ
Pop-Up Height	4 in.
Riser Material	Plastic
Check Valve	No Check Valve
