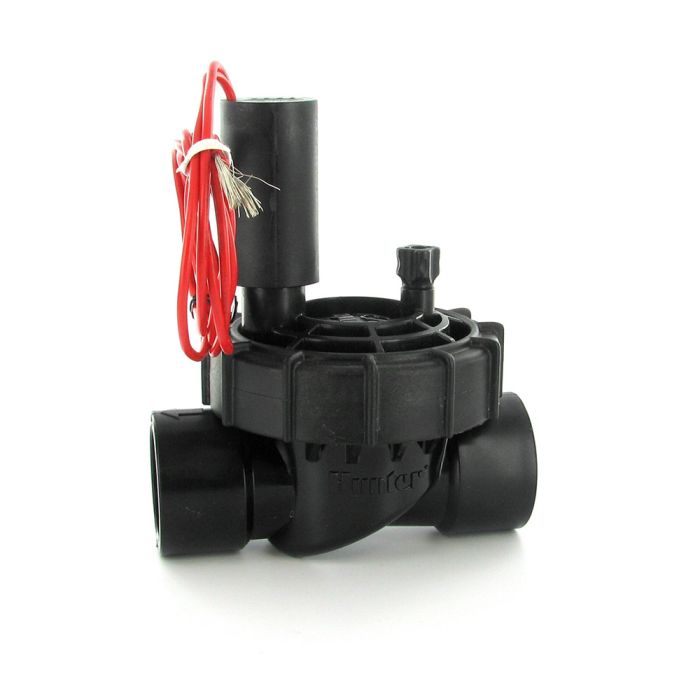

Hunter PGV Jar Top Valve 1 in. Slip | PGV-100JTG-S

In stock
SKU
PGV-100JTG-S
Free Shipping on Orders over $149
Sales Price $13.85 Our Price $24.54 You save 44%
Case of 20
$13.57 / each

Hunter PGV-100JTG-S 1 in. Slip x Slip Jar-Top Valve w/out Flow Control

  • 1" Hunter PGV-100JTG Valve
  • Without Flow Control
  • 1" Slip Inlet/ Outlet

Features & Benefits

The Hunter PGV Jar-Top Residential Irrigation Valve offers convenience to the max, ease of service, and simplicity - An all-in-one package!

This unique valve combines Hunter's innovative technology and versatility when it comes to installing and maintaining the unit. The Hunter PGV Jar-Top Valve can handle the most demanding of situations with it's PVC construction and leak-proof diaphragm. Not to mention the many different installation and configuration styles the Hunter PGV Jar-Top Valve has to offer. The performance quality of the Hunter PGV residential valve is durable, reliable and also versatile. It gets the job done!

  • Jar-Top Bonnet:Intuitive design makes it easy to access the valve; no tools necessary
  • Fully-encapsulated Hunter Solenoid: Provides dependable operation and long life
  • Internal manual bleed: Easy to use and keeps valve box dry: All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
  • Flow control option: Adjusts the flow of each zone on a system to deliver optimum nozzle performance
  • Rigid diaphragm support: Works to prevent stress failure in tough conditions
  • Common Parts to Other Hunter Valves: Diaphragm is interchangeable with PGV, SRV and PGV-ASV series 1" valves; solenoid fits all Hunter plastic valves
  • Wide Variety of Body Styles: Easy installation for all types of connections

Product Details

  • Low: .2 to 30 GPM (0.04 to 6.81 m3/hr; 0.7 to 113.5 l/min)
  • Pressure: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
  • Ambient temperature: up to 150° F (66° C)
  • Heavy-duty solenoid: 24VAC, 370mA inrush current, 190mA holding current, 60 cycles; 475mA inrush current, 230mA holding current, 50 cycles

Dimensions

  • 1" Globe: 5 1/2" H x 4 3/4" L x 3 1/4" W
  • 1" Male x Male: 5 1/2" H x 5 1/4" L x 3 1/4" W
  • 1" Male x Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W
  • 1" Male x 1 1/4" Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W
PGV PRESSURE LOSS IN PSI
FLOW GPM 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE
1 1.1 1.0 - - - -
5 1.9 1.0 - - - -
10 1.9 1.0 - - - -
15 1.6 1.0 - - - -
20 3.3 2.0 3.0 3.0 1.0 1.0
30 6.1 3.0 3.0 3.0 1.0 2.0
40 - - 3.0 3.0 2.0 2.0
50 - - 4.0 3.5 1.0 1.0
60 - - 5.0 4.0 2.0 2.0
80 - - 5.5 4.5 3.0 2.0
100 - - - - 5.0 3.0
120 - - - - 6.0 5.0



PGV PRESSURE LOSS IN BARS
M3/HR 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE
0.23 0.08 0.07 - - - -
1.14 0.13 0.07 - - - -
2.27 0.13 0.07 - - - -
3.41 0.11 0.07 - - - -
4.54 0.23 0.14 0.21 0.21 0.07 -
6.81 0.42 0.21 0.21 0.21 0.07 -
9.08 - - 0.21 0.21 0.14 -
11.36 - - 0.28 0.24 0.14 -
13.63 - - 0.34 0.28 0.14 -
18.17 - - 0.38 0.31 0.14 -
22.71 - - - - 0.21 -
27.25 - - - - 0.34 -



Related Articles & Videos

Articles

Videos

More Information
Brand Hunter
Type Valve
Body Material Plastic
Application Residential
Solenoid Yes
Warranty 2 Years
Size 1 in.
Connection Slip
Flow Control No Flow Control
Valve Type Jar Top
