Working in a sprinkler trench is tough enough-don't make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps or frustrating barbed fittings. Hydro-Rain offers a better way: Blu-Lock. Everything you do from the valve out, you can now do faster and easier with Blu-Lock. Primer? Glue? Clamps? Tools?
With the Blue-Lock system, you don't need them! Simply stated, Blu-Lock by Hydro-Rain is the fastest, greenest, irrigation installation method in the world. Blu-Lock is for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.
Every fitting installed from the valve out, you can now install faster and easier with Blu-Lock fittings. Simply stated, Blu-Lock by Hydro-Rain is the fastest, greenest, irrigation installation method in the world.
| 1" (2,54 CM) PIPE PRESSURE LOSS* | ||
|---|---|---|
| FLOW (GPM) | VELOCITY (FPS) | PRESSURE LOSS (PSI) |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | 1.48 | 0.46 |
| 5 | 1.86 | 0.76 |
| 6 | 2.23 | 1.06 |
| 7 | 2.60 | 1.37 |
| 8 | 2.97 | 1.80 |
| 9 | 3.34 | 2.23 |
| 10 | 3.71 | 2.76 |
| 11 | 4.08 | 3.07 |
| 12 | 4.45 | 3.85 |
| 13 | 4.83 | 4.45 |
| 14 | 5.2 | 5.10 |
| 15 | 5.57 | 5.76 |
| 20 | 7.42 | 9.90 |
| 25 | 9.98 | 14.90 |
* For non-constant pressure valve-out outdoor irrigation connections only. Working in a sprinkler trench is tough enough dont make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps, or frustrating barbed fittings. Hydro-Rain offers a better way: Blu-Lock push-ngo lateral sprinkler pipe fittings for HDPE and swing pipe.
| PSI VS. FLOW RATE | |
|---|---|
| PSI | 1 IN. GPM |
| 40 | 11 |
| 50 | 13 |
| 60 | 14 |
| 70 | 16 |
* Measured in 100' lengths
Articles
Videos
| Brand | Hydro-Rain |
|---|---|
| Reducing | YES |
| Color | Black |
| Max Working Pressure | 125 PSI |
| Burst Pressure | 250 PSI |
| Working Pressure | 10-125 PSI |
| Warranty | 1 Year |

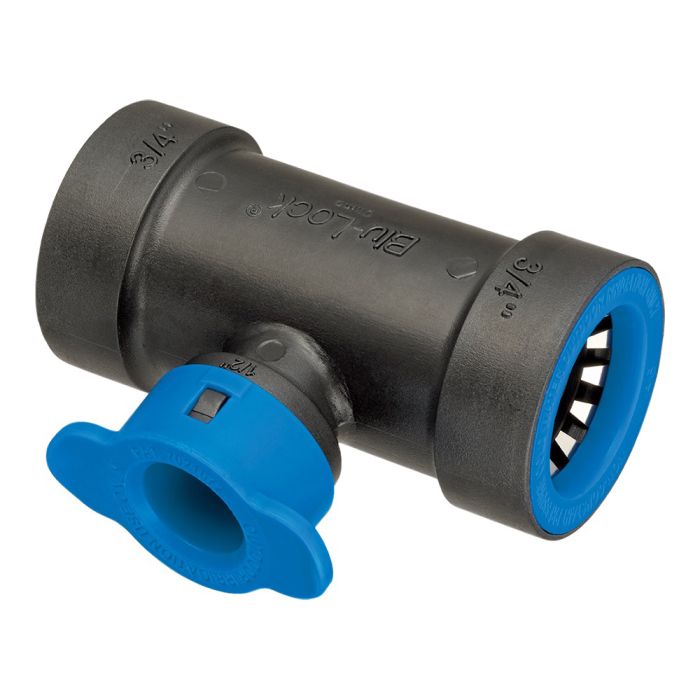

| Size | 3/4 in. x 3/4 in. x 1/2 in. |
| Type | Blu-Lock Reducing Tee |
