Irritrol 2400 Inline Valve 1 in. FPT | 2400T

Name: Irritrol 2400 Inline Valve 1 in. FPT | 2400T
Brand: Irritrol
SKU: 2400T
Price: 17.35 USD
Availability: InStock

SKU

2400T

Sales Price $17.35 Our Price $28.95 You save 40%

Overview

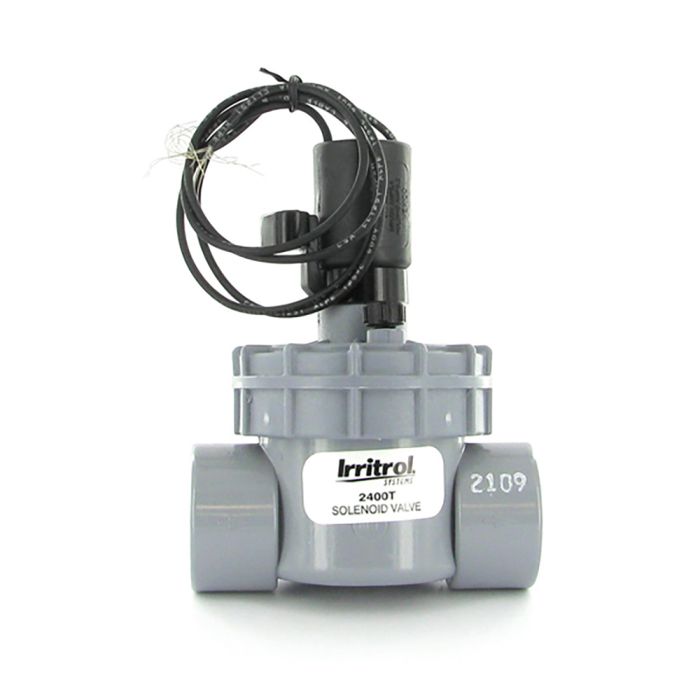

Irritrol 2400T 1 in. FPT Valve without Flow Control

1" Irritrol 2400T Valve
Without Flow Control
1" Female Threaded Inlet/ Outlet

Features & Benefits

The Irritrol 2400 Series globe and 2600 Series angle valves are popular with users because of the convenience of their threaded bonnets, the reliability of their double-beaded diaphragm and the durability of their heavy-duty, corrosion and UV-resistant PVC construction. Fast and easy to install and service, these 1-inch residential plastic valves offer an encapsulated solenoid, internal/external bleed, an optional flow control feature, and are available in multiple configurations.

Threaded Bonnet Design: Allows easy servicing without removal from the system
Rugged, Double-Beaded SANTOPRENE Diaphragm: Ensures a leak-proof seal
Internal and External Bleed (Flush Mode): Allows for manual operation
Full stainless-steel metering system: Allows for consistent valve operation
Heavy-duty, corrosion and UV-resistant PVC, glass-filled polypropylene and stainless steel construction: Durable, long-term performance
Available in multiple configurations - female NPT, slip, male x male and male x barb: Will handle all regional installation variances (2600 available with NPT threads only)

Added Features

Buna-N valve seat seal
Floating bleed tube allows thermal expansion without affecting performance
Encapsulated injection-molded solenoid with a captive hex plunger
Five-year warranty

Product Details

Flow range: .25-30 GPM
Pressure range: 10-150 psi

Electical Specifications

Solenoid: 24 V ac
Inrush volt-amp: 24 V ac-9.6 VA
Inrush current: .4 amp
Holding volt-amp: 24 V ac-4.8 VA
Holding current: .2 amp

Dimensions

2400: H: 5 1/8", W: 3", L: 4"
2600: H: 6 1/2", W: 3", L: 3 3/4"

PRESSURE LOSS DATA (GPM)
MODEL	SIZE	.25	2	5	10	15	20	30
2400 Series	1"	5.00	4.60	3.50	4.00	2.97	3.26	6.20
2600 Series	1"	5.00	4.60	3.34	2.15	1.78	1.90	3.85

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	Irritrol
Product Type	Inline Valves
Body Material	Glass-Filled Polypropylene
Flow Control	No Flow Control
Valve Type	In-Line
Connection	FPT
Application	Residential
Solenoid	Yes
Warranty	5 Years
Size	1 in.
