The Rain Bird 5000 Series Rotor is designed to deliver superior water distribution and larger water droplets, eliminating tough dry spots.
The 5000 Series Rotor is a rugged mid-range gear-drive rotary sprinkler, offering durability, great performance, and the convenience of arc adjustment from the top. This versatile rotor offers a standard rubber cover and the convenience of reversing full-and part-circle operation (up to 360 degrees) in one unit. And, with a tree of Rain Curtain nozzles, the 5000 Series Rotor offers excellent distribution for top-notch efficiency. All of this and a proven gear-driven design, is what makes the 5000 Series Rotor one head that will Take Performance to the Top.
Includes 1 complete set of standard nozzles per rotor
Adjustment tool not included since standard flat-head screwdriver is sufficient
The 5000 Series Rotor Sprinkler is available in 4", 6", 12" and Shrub models.
Standard Rubber Cover for extra protection and easy identification.
Heavy-duty cover assembly for extra durability in residential and commercial applications.
Enhanced Rain Curtain Nozzles: Increased radius range with less flow per nozzle, New Micro-Ramps for superior close-in watering, Nozzle Extraction Feature for easy rotor maintenance
Heavy-duty retractable spring assures positive pop-down
Tree of nozzles including low angle (Angle of trajectory 10 degrees) and standard angle Rain Curtain nozzles (Angle of trajectory 25 degrees) provides 25 to 50 ft (7 to 15,2 M) distance of throw.
Top-adjust arc adjustment requiring only a flat-bladed screwdriver
Water-lubricated gear-drive design for durable, reliable operation
40- 360 degrees Arc Rotation for reversing Full-and Part-Circle rotation in one. A non-reversing full circle only unit is also available.
Radius adjustment screw allows up to 25% radius reduction without changing nozzles

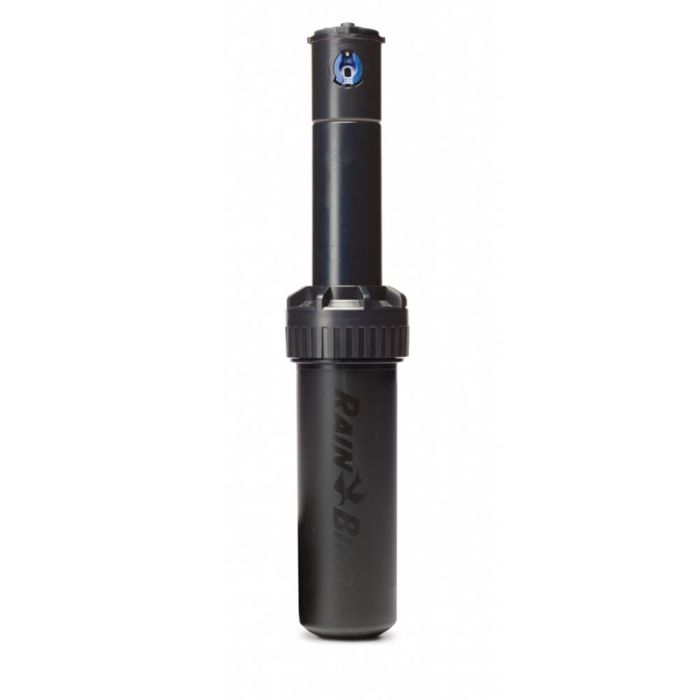

True 4" (10 cm) pop-up (measured from the case cover to the nozzle)
Pressure activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional o-rings and seals for extra protection in "gritty" water
Rain Bird 5004-PC Dimensions & Product Details
Precipitation rate: .20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Exposed surface diameter: 1 5/8" (4,1 cm) *Note: Pop-up height measured from cover to the nozzle. Overall body height is measured popped down.
FAQs for Rain Bird 5004-PC Rotor
How to adjust the Rain Bird 5000?
To adjust your Rain Bird 5000, use a flathead screwdriver or the Rain Bird rotor tool. Insert it into the arc adjustment slot on top of the sprinkler head. Turn it clockwise to increase the spray angle or counterclockwise to decrease it.
How do I adjust the spray pattern on a Rain Bird?
Adjusting the spray pattern involves setting both the arc and the radius. Use the arc adjustment slot to change the spray angle, and the radius screw near the nozzle to control how far the water sprays. Always align the left side of the pattern first, since it’s fixed.
What is the distance control on the Rain Bird 5000?
The distance control sets how far the water sprays from the sprinkler head. It’s located on top of the nozzle and adjusted with a screw. Turning it clockwise shortens the throw; turning it counterclockwise increases the distance.
How to Adjust Rain Bird Sprinkler Heads
Learning how to adjust Rain Bird 5000 Series sprinkler heads is pivotal for efficient watering, saving you money while keeping your lawn luscious and green. To adjust the spray distance, also known as spray radius, you'll need a Rain Bird rotor adjustment tool or a flathead screwdriver.
Rain Bird 5000 Spray Distance Adjustment: Prevent Water Waste
Insert the rotor tool into the radius adjustment screw located on top of the rotor head in the etched arrow point (see above)
To decrease the radius, turn tool clockwise
CAUTION! Turning too far clockwise can shut off the spray completely.
To increase the radius, turn tool counterclockwise
Longer Life = Less Hassle, Less Frequent Replacements
Rain Bird rotors have the longest operating cycle life of any rotor on the market. Specifically, Rain Bird 5000 Series lasts nearly twice as long as the Hunter PGP
