Rain Bird 5000RCTREE Nozzle Set for 5000 Rotor

In stock

SKU

5000RCTREE

Sales Price $0.47 Our Price $1.95 You save 76%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Rain Bird 5000RCTREE Nozzle Set for 5000 Rotor

Rain Bird Nozzle Set
Compatible with the 5000 Rain Bird Rotor Series
8 Blue Standard Nozzles
4 Low Angle Nozzles

Features & Benefits

Rain Bird nozzle sets help you save water and maximize the performance of your Rain Bird 42SA+ and 5000+ Series Rotors and 52SA Series.

Rotors apply different amounts of water depending on the pattern that they are set to water. For example, a rotor set to water just 1/4 of a circle applies more water in that area than a rotor set to water a full 360°, assuming the nozzles are the same.

Changing nozzles can help even out the amount of water being sprayed between rotors that are set for different patterns. This will help maintain a healthier lawn and save water.

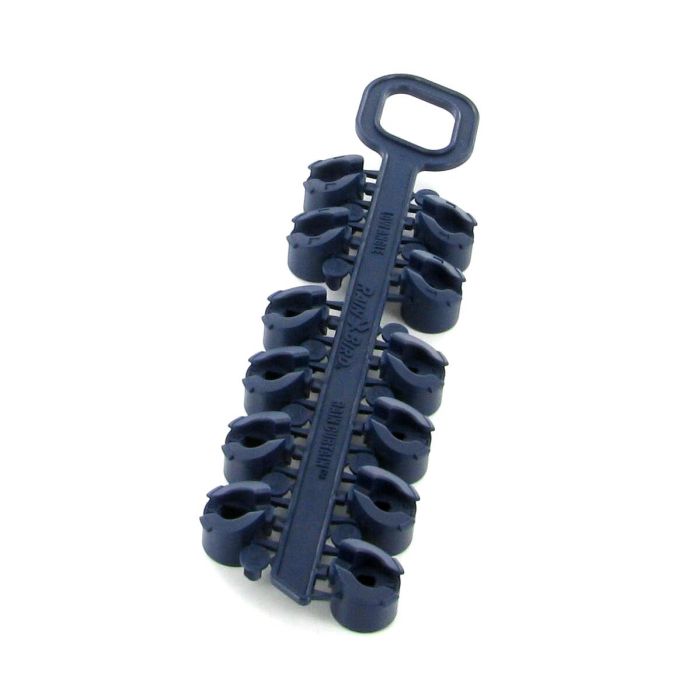

Tree of self-aligning rotor nozzles including four low angle and eight standard angle Rain Curtain Nozzles:
- Low Angle (angle of trajectory 10°): 1.0. 1.5, 2.0 and 3.0
- Rain Curtain (angle of trajectory 25°): 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 and 8.0
Large water droplets for greater wind resistance
Effective close-in watering
Even distribution over the entire radius
Provides 25' to 50' (7.6m to 15.2m) distance of throw
Fits on Rain Bird 5004PL-PC, 5004PL-FC, 5006PL-PC, 5006PL-FC, 5012PL-PC and 5012PL-FC and 42SA+ Plus and 52SA Series Rotors

Product Details

Tree of self-aligning rotor nozzles including four low angle and eight standard angle Rain Curtain Nozzles:
- Low Angle (angle of trajectory 10°): 1.0. 1.5, 2.0 and 3.0
- Rain Curtain (angle of trajectory 25°): 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 and 8.0

Related Articles & Videos

Articles

Videos

5000/5000 Plus Std. Angle Rain CurtainTM Nozzle Performance
PRESSURE PSI	NOZZLE	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
25
	1.5	33	1.12	0.20	0.23
	2.0	35	1.50	0.24	0.27
	2.5	35	1.81	0.28	0.33
	3.0	36	2.26	0.34	0.39
	4.0	37	2.91	0.41	0.47
	5.0	39	3.72	0.47	0.54
	6.0	39	4.25	0.54	0.62
	8.0	36	5.90	0.88	1.01
35
	1.5	34	1.35	0.22	0.26
	2.0	36	1.81	0.27	0.31
	2.5	37	2.17	0.31	0.35
	3.0	38	2.71	0.36	0.42
	4.0	40	3.50	0.42	0.49
	5.0	41	4.47	0.51	0.59
	6.0	43	5.23	0.54	0.63
	8.0	43	7.06	0.74	0.85
45
	1.5	35	1.54	0.24	0.28
	2.0	37	2.07	0.29	0.34
	2.5	37	2.51	0.35	0.41
	3.0	40	3.09	0.37	0.43
	4.0	42	4.01	0.44	0.51
	5.0	45	5.09	0.48	0.56
	6.0	46	6.01	0.55	0.63
	8.0	47	8.03	0.70	0.81

5000/5000 Plus Std. Angle Rain CurtainTM Nozzle Performance
PRESSURE PSI	NOZZLE	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
55
	1.5	35	1.71	0.27	0.31
	2.0	37	2.30	0.32	0.37
	2.5	37	2.76	0.39	0.45
	3.0	40	3.47	0.42	0.48
	4.0	42	4.44	0.48	0.56
	5.0	45	5.66	0.54	0.62
	6.0	47	6.63	0.58	0.67
	8.0	50	8.86	0.68	0.79
65
	1.5	34	1.86	0.31	0.36
	2.0	35	2.52	0.40	0.46
	2.5	37	3.01	0.42	0.49
	3.0	40	3.78	0.45	0.53
	4.0	42	4.83	0.53	0.61
	5.0	45	6.16	0.59	0.68
	6.0	48	7.22	0.60	0.70
	8.0	50	9.63	0.74	0.86"
