Irritrol RAIN DIAL 9 Station Indoor/Outdoor Controller | RD900-EXT-R

Free Shipping on Orders over $149
Sales Price $247.47 Our Price $399.95 You save 38%

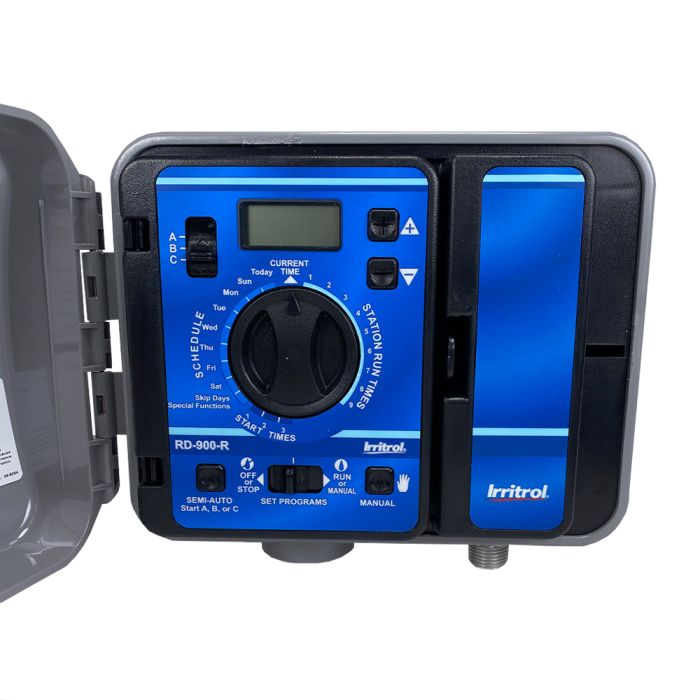

Irritrol RAIN DIAL 9 Station Indoor/Outdoor Controller

  • Zones: 9
  • Expandability: Fixed
  • Enclosure Type: Indoor/Outdoor

Features & Benefits

In addition to the numerous upgrades built into this popular, long-standing controller, the optional CLIMATE LOGIC Wireless Weather Sensing System makes the Rain Dial-R a "smart" controller on the cutting edge of water management.

When governed by Climate Logic, the Rain Dial-R will automatically water more on warm or hot days and less on cooler days. Applying the right amount of water to maintain a healthy landscape, the Rain Dial-R and weather-based Climate Logic Weather System seriously reduce overwatering and its expense.

  • Climate Logic ready Automatically reschedules Rain Dial-R watering based on the weather
  • Remote CONTROL ready Compatible with CRR (Contractor Residential Remote) remote series
  • Rainsensor ready Sensor bypass switch and terminal for sensor hookup
  • Three independent programs Programming flexibility to meet the needs of a wide variety of plant material on the landscape site
  • Three water day choices - Any day of the week, skip days or odd/even dates - Skip days and odd/even dates have day exclusion option
  • Water Budgeting For quick changes to the watering durations of all stations on a program at one time or pre-set a change in water budget for each month.
  • 365-day calendar for Odd/Even date watering Meets the odd/even date watering mandates often used for landscape water reductions
  • Water well recovery (delay between stations) Option of pump circuit ON or OFF during
  • Master Valve/Pump Start circuit Assignable per station Stations requiring a booster pump can be supplied while other stations can run on street water pressure
  • Test All Stations program Allows a quick test of all stations from lowest to highest number
  • Clear/erase memory by program Saves time by quickly erasing only the program desired
  • Program stack or overlap option Allows three programs/stations on at once or restricts operations to no overlapping station runs
  • 5-Year Warranty

Product Details

Operating Specifications

  • Station run times: 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 minute) increments
  • Start times: 3 per program per day for 9 starts total
  • Watering schedules per program - Any day of the week - Skip days from 1 to 31 days between irrigation days - Odd or even date watering
Letter Description Letter Description
A.  SMRT Logic Wireless Gateway F. R102-5476 (16x20 pin adapter) cable
B. RS1000 wireless RainSensor G. CL-100-Wireless Weather Sensing System
C. RFS1000 wireless rain/freeze sensor H. SR-1 pump start relay (Not Pictured)
D. RS500 wired RainSensor I. P-2B standard pedestal
E CRR remote series (R-100-KIT)
More Information
Brand Irritrol
Expandability Fixed
Power Source AC Powered
Type Fixed Controller
Number of Programs 3
Start Times Per Program 9
Max Station Run Time (HRS) 6
Indoor Yes
Outdoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Residential
Warranty 5 Years
Series RainDial
Zones 9
Enclosure Type Indoor/Outdoor
