K-Rain ProPlus Rotor 4 in. | 11003-CV

SKU

11003-CV

Sales Price $13.97 Our Price $23.95 You save 42%

Quantity of 20

$13.17 / each

Overview

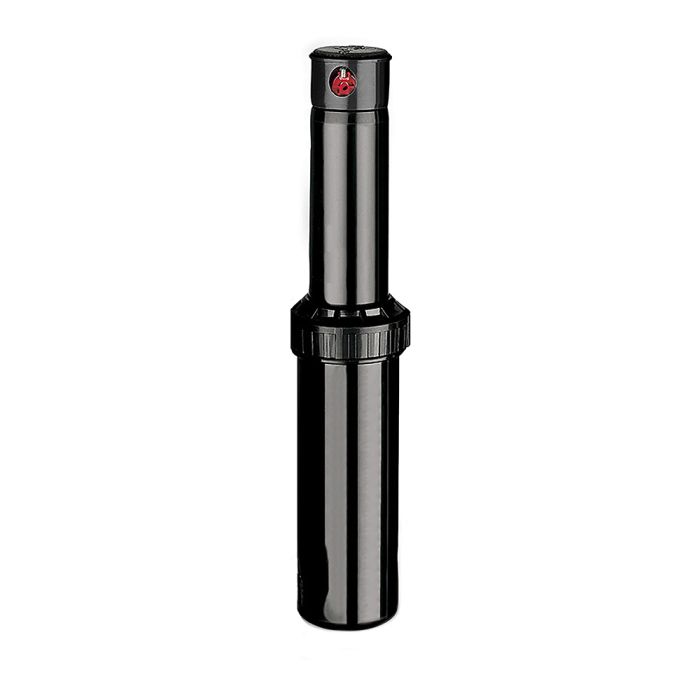

K-Rain 11003-CV 4 in. Pop-Up ProPlus Adjustable Rotor

The PROPLUS adjustable arc and full-circle gear driven rotor comes standard with nine numerically coded interchangeable nozzles. The flagship model in the PRO Series line, the PROPLUS is packed with features that ensure reliability, saving the installer time, money and needless frustration. Excellent nozzle performance delivers an exceptional fall out pattern. In independent testing by C.I.T., the PROPLUS delivered up to 90% uniform coverage. Tough, proven and advanced, the PROPLUS is the lead in its class.

Features and Benefits

Revolutionary Patented Easy Arc Set Simplified arc set allows for wet or dry adjustment in seconds
" Inlet Replaces all standard rotors
2N1 Adjustable or Continuous Rotation - Provides a full range of adjustment from 40 to a continuous full circle.
Patented Arc Set Degree Markings Clearly indicates the current watering pattern and simplifies arc set adjustment
Arc Memory Clutch Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.
Time Proven Patented Reversing Mechanism - Assures continuous reverse and return...over a 20 year history.
Ratcheting Riser Allows for easy adjustment of your left starting position with a simple turn of the riser.
Rubber Cover Seals out dirt and increases product durability
Wide Selection of Nozzles - Including standard and low angle, provides flexibility in system design.
Check Valve with 11003-CV Model - Prevents low head drainage.

Specifications

Inlet: 3/4" Threaded NPT
Arc Adjustment Range: 40 degree to Continuous 360 degree
Flow Range: .5 - 10.0 GPM
Pressure Rating: 20 - 70 PSI
Precipitation Rate: .06 to .50 Inches Per Hour (Depending on Spacing and Nozzle Used)
Overall Height (Popped Down): 7 1/2" / 17" for High Pop
Recommended Spacing: 28' to 44'
Radius: 28' to 50'
Nozzle Trajectory: 26 degree
Low Angle Nozzle Trajectory: 12
Standard and Low Angle Nozzle: Included
Riser Height: 4"

Specs

More Information
Brand	K-Rain
Product Type	Rotors
Application	Residential
Body Height	7-1/2
Inlet Size	3/4 in.
Pressure Range (PSI)	20-70
Warranty	5 Years
Spray Pattern	Part Circle Adjustable (40 - 360)
Spray Radius	28 ft. - 50 ft.
Advanced Features	Check Valve
Series	ProPlus
Pop-Up Height	4 in.
Riser Material	Plastic
Check Valve	Check Valve
