K-Rain SuperPro Rotor (Non-Potable) 5 in. | 10003-RCW

In stock
SKU
10003-RCW
Free Shipping on Orders over $149
Sales Price $9.95 Our Price $16.08 You save 38%
of 20
$9.75 / each
of 1080
$9.55 / each

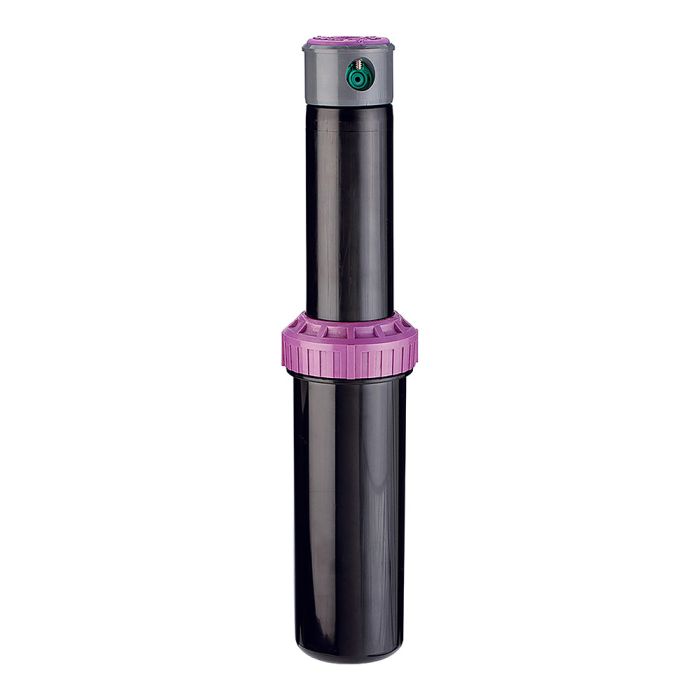

K-Rain SuperPro Rotor (Non-Potable) 5"

  • K-Rain SuperPro Rotor
  • Non-Potable
  • Pop-Up Height: 5 inches

Features & Benefits

SuperPro™ with Intelligent Flow Technology® and patented Flow Control allows the reduction of distance while simultaneously and proportionately reducing the flow rate down 50%! Water savings of up to 30% or more is achievable with this innovative feature. SuperPro™ delivers matched precipitation, eliminates dry spots, and provides better zone performance. Water flow can be turned off during nozzle installation or adjustment, with the riser remaining in a popped-up position.

Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

  • Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
  • 2N1 Adjustable or Continuous Rotation – Provides a full range of adjustment from 40° to continuous 360°.
  • Patented Arc Set Degree Markings – Clearly indicates current watering pattern, simplifies arc set adjustment.
  • Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced out of adjustment.
  • Time-Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35-year history.
  • Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
  • Rubber Cover – Seals out dirt and increases product durability.
  • Rugged Stainless Steel Spring – .093 gauge 302 stainless steel spring extends the life of the rotor.

Product Details

  • Inlet: 3/4" (1,9 cm) Threaded NPT
  • Arc Adjustment Range: 40° to Continuous 360°
  • Flow Range: .5 – 9.5 GPM (1,9 – 36 LPM)
  • Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
  • Precipitation Rate: .21 – 1.17 in/hr (5,39 a 30,89 mm/hr) (Depending on Spacing and Nozzle Used)
  • Overall Height (Popped Down): 7 1/2" (19 cm)
  • Recommended Spacing: 28' – 44' (8,5 a 13,4 m)
  • Radius: 26' – 49' (7,9 a 14,9 m)
  • Nozzle Trajectory: 26°
  • Low Angle Nozzle Trajectory: 12°
  • Standard and Low Angle Nozzles Included
  • Riser Height: 4" (12,7 cm)

Related Articles & Videos

Articles

Videos

Performance Data

Nozzle Pressure PSI Radius ft. Flow GPM Precip In/h Precip In/h
#1
30 33 1.2 0.21 0.25
40 33 1.3 0.23 0.27
50 33 1.5 0.27 0.31
60 33 1.8 0.32 0.37
#1.5
30 36 1.5 0.22 0.26
40 37 1.8 0.25 0.29
50 37 2.0 0.28 0.32
60 38 2.2 0.29 0.34
#2
30 35 1.8 0.28 0.33
40 35 2.2 0.35 0.40
50 36 2.6 0.39 0.45
60 38 2.9 0.39 0.45
#2.5 Pre-installed
30 37 2.5 0.35 0.41
40 38 3.0 0.40 0.46
50 40 3.4 0.41 0.47
60 40 3.8 0.46 0.53
#3
30 36 3.0 0.45 0.51
40 37 3.4 0.48 0.55
50 38 4.0 0.53 0.62
60 41 4.4 0.50 0.58
#4
30 37 4.0 0.56 0.65
40 39 4.5 0.57 0.66
50 39 5.2 0.66 0.76
60 40 5.6 0.67 0.78
#5
30 37 4.8 0.68 0.78
40 38 5.6 0.75 0.86
50 41 6.5 0.74 0.86
60 43 7.2 0.75 0.87
#6
30 40 6.0 0.72 0.83
40 41 6.8 0.78 0.90
50 42 7.5 0.82 0.95
60 44 8.4 0.84 0.96
#8
30 38 7.9 1.05 1.22
40 44 9.2 0.92 1.06
50 45 10.4 0.99 1.14
60 46 11.1 1.01 1.17
*All precipitation rates calculated for 180& operation. For the precipitation rate for a 360& sprinkler, divide by 2.

Low Angle Performance Data

Nozzle Pressure PSI Radius ft. Flow GPM Precip In/h Precip In/h
#1
30 26 1.1 0.31 0.36
40 30 1.3 0.28 0.32
50 30 1.4 0.30 0.35
60 30 1.6 0.34 0.40
#1.5
30 27 1.4 0.37 0.43
40 28 1.7 0.42 0.48
50 31 1.9 0.38 0.44
60 30 2.1 0.45 0.52
#2
30 30 2.1 0.45 0.52
40 31 2.4 0.48 0.56
50 33 2.8 0.50 0.57
60 31 3.1 0.62 0.7
#3
30 32 3.0 0.56 0.65
40 34 3.5 0.58 0.67
50 35 3.9 0.61 0.71
60 35 4.3 0.68 0.78
*All precipitation rates calculated for 180° operation. For the precipitation rate for a 360° sprinkler, divide by 2.
Brand:
K-Rain
Riser Material:
Plastic
Pop-Up Height:
5 in.
Pressure Range (PSI):
20-70
Series:
Super Pro
Spray Radius:
28 ft. - 49 ft.
Spray Pattern:
Part Circle Adjustable (40 - 360)
Type:
Rotor
Body Height:
7-1/2
Application:
Residential
Inlet Size:
3/4
Check Valve:
No Check Valve
Advance Features:
Non-Potable / Reclaimed Water
