K-Rain ProSeries 150 FC In-Line / Angle Valve with Flow Control 1-1/2 in. FPT | 7115

Name: K-Rain ProSeries 150 FC In-Line / Angle Valve with Flow Control 1-1/2 in. FPT | 7115
Brand: K-Rain
SKU: 7115
Price: 43.95 USD
Availability: InStock

In stock

SKU

7115

Sales Price $43.95 Our Price $88.20 You save 50%

Case of 6

$43.07 / each

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

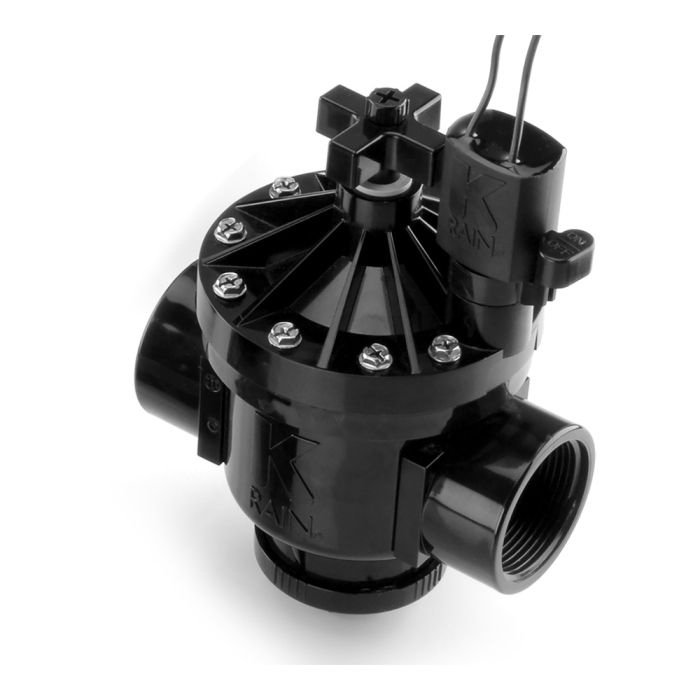

K-Rain ProSeries 150 FC In-Line / Angle Valve with Flow Control 1-1/2 in. FPT

Size: 1-1/2 in.
Connection: Female Pipe Thread
Valve Type: In-Line / Angle

Features & Benefits

K-Rains ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. The 1" valve has a removable metering pin and external bleed screw promoting easy maintenance and manual operation. The 1" Jar-Top valve provides the professional easy servicing access without removing the valve from the system.

Heavy Duty, Corrosion and UV Resistant PVC Construction Increases the life of the valve.
External Bleed Screw with Removable Metering Pin Allows for easy cleaning of the metering pin without disassembling the valve.
Manual External Bleed Screw Provides for manual operation in system start up.
Manual Internal Bleed through Solenoid Provides for manual operation without discharging water outside the valve.
Removable Inlet Cap Allows for easy conversion from globe to angle-style valve.
Flow Control Allows for precise flow adjustment and manual shut off.
Captured Plunger Allows for the solenoid to be removed without losing the internal plunger.
Heavy Duty Santoprene Diaphragm Unique design improves durability of diaphragm.
Five Year Limited Warranty
Removable inlet cap allows for easy conversion from globe to angle-style valve.

Product Details

Pressure range: 20-150 psi
Flow Range: 5-120 GPM

Electrical Specifications

Standard solenoid: 24 VAC 60 Cycle
Inrush current: .4 amp
Holding current: .2 amp

ProSeries 150 1-1/2" VALVE-7115 Dimensions

HEIGHT: 8" WIDTH:4-1/4" LENGTH: 5-1/2"

ProSeries 150 1-1/2" Valve

Flow Rate-GPM	20	30	40	50	60	80
PSI Loss- Globe	3.0	2.6	2.3	2.9	4.1	5.5
PSI Loss- Angle	2.7	2.2	1.9	2.2	3.0	4.4
Pressure Range	10- 150 psi

ProSeries 150 2" Valve

Flow Rate - GPM	20	30	40	50	60	80	100	120
PSI Loss - Globe	2.0	1.9	1.7	1.5	1.6	2.9	4.8	6.2
PSI Loss - Angle	1.9	1.9	1.7	1.5	1.5	2.1	3.2	4.6
4.6Pressure Range	10-150 psi
