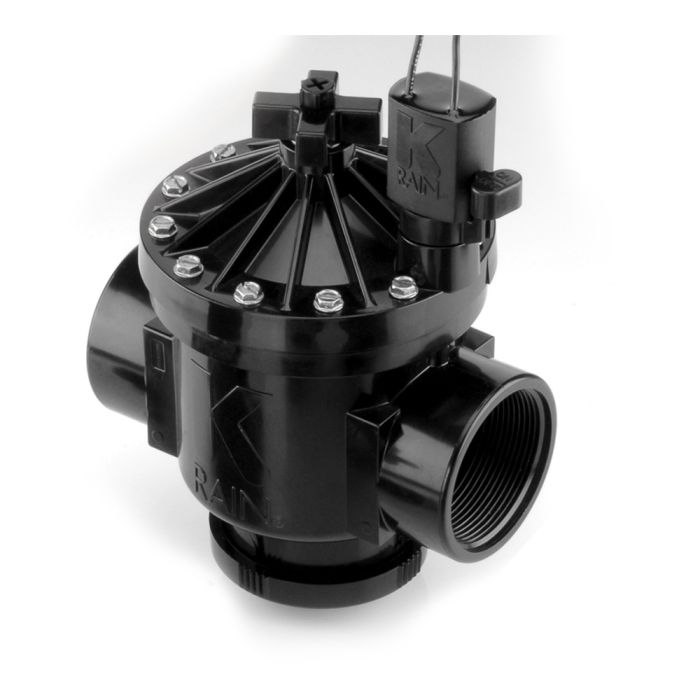

K-Rain ProSeries 150 FC Inline / Angle Valve with Flow Control 2 in. FPT | 7102

SKU
7102
Free Shipping on Orders over $149
Sales Price $77.65 Our Price $139.95 You save 45%

K-Rain ProSeries 150 FC In-Line / Angle Valve with Flow Control 2 in. FPT

  • Size: 2 in.
  • Valve Type: In-Line / Angle
  • Connection: Female Pipe Thread

Features & Benefits

The 1.5" and 2" models feature a removable inlet cap to easily modify the configuration from globe to angle style. They also have a removable metering pin and external bleed screw promoting easy maintenance and manual operation.

  • Heavy Duty, Corrosion and UV Resistant PVC Construction Increases the life of the valve.
  • External Bleed Screw with Removable Metering Pin Allows for easy cleaning of the metering pin without disassembling the valve.
  • Manual External Bleed Screw Provides for manual operation in system start up.
  • Manual Internal Bleed through Solenoid Provides for manual operation without discharging water outside the valve.
  • Removable Inlet Cap Allows for easy conversion from globe to angle-style valve.
  • Flow Control Allows for precise flow adjustment and manual shut off.
  • Captured Plunger Allows for the solenoid to be removed without losing the internal plunger.
  • Heavy Duty Santoprene Diaphragm Unique design improves durability of diaphragm.
  • Five Year Limited Warranty
  • Removable inlet cap allows for easy conversion from globe to angle-style valve.

Product Details

  • Pressure range: 20-150 psi
  • Flow Range: 5-120 GPM


Electrical Specifications

  • Standard solenoid: 24 VAC 60 Cycle
  • Inrush current: .4 amp
  • Holding current: .2 amp
  • HEIGHT: 8-7/8" WIDTH: 4-7/8" LENGTH: 6-1/3"

ProSeries 150 2" Valve

Flow Rate - GPM 2 20 30 40 50 60 80
PSI Loss - Globe 3.0 2.6 2.3 2.9 4.1 5.5
PSI Loss - Angle 2 2.7 2.2 1.9 2.2 3.0 4.4
Pressure range 10-150 psi 10-150 psi 10-150 psi 10-150 psi 10-150 psi 10-150 psi
More Information
Brand K-Rain
Body Material Heavy-Duty PVC
Flow Control Flow Control
Valve Type In-Line / Angle
Connection FPT
Type Valve
Application Residential and Commercial
Solenoid Yes
Warranty 5 Years
Size 2 in.
Specifications (42.75 kB)
Brochure (1.17 MB)
