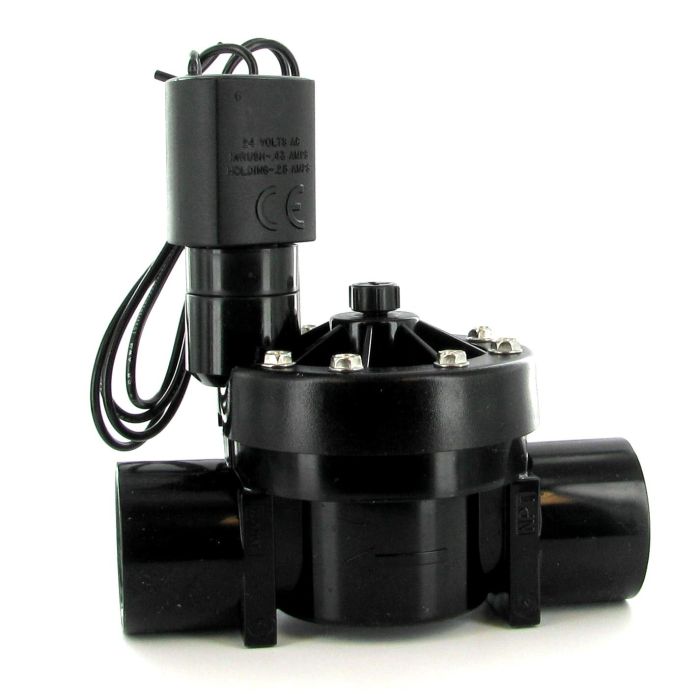

K-Rain ProSeries 150 In-Line Valve 1 in. FPT | 7101

• Size: 1 in.
• Valve Type: In-Line
• Connection: Female Pipe Thread

Features & Benefits

K-Rain's ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. The 1" valve has a removable metering pin and external bleed screw promoting easy maintenance and manual operation. The 1" valve provides the professional easy servicing access without removing the valve from the system.

• The 1", 1-1/2" and 2" models feature a removable external bleed screw and metering pin to simplify cleaning and maintenance. With the External Bleed Screw, manual operation during start up is easy.
• Heavy Duty, Corrosion and UV Resistant PVC
• Construction - Increases the life of the valve.
• Manual External Bleed Screw - Provides for manual operation in system start up.
• Manual Internal Bleed through Solenoid - Provides for manual operation without discharging water outside the valve.
• Captured Plunger - Allows for the solenoid to be removed without losing the internal plunger.
• Heavy Duty Santoprene Diaphragm - Unique design improves durability of diaphragm.
• External Bleed Screw with Removable Metering
• Pin - Allows for easy cleaning of the metering pin without disassembling the valve.
• Two Year Limited Warranty.
• No tools needed
• The K-Rain valve allows for quick and easy servicing after installation.

Product Details

• Pressure range: 10-150 psi
• Flow Range: .25 - 30 GPM

Electrical Specifications

• Standard solenoid: 24 VAC 60 Cycle
• Inrush current: .4 amp
• Holding current: .2 amp

ProSeries 150 1" VALVE-7101 Dimensions

• HEIGHT: 5-1/4" WIDTH: 3-1/8" LENGTH: 5"

ProSeries 150 1" VALVE -7101-J Dimensions

• HEIGHT: 5-1/4" WIDTH: 3" LENGTH: 4-3/8"
