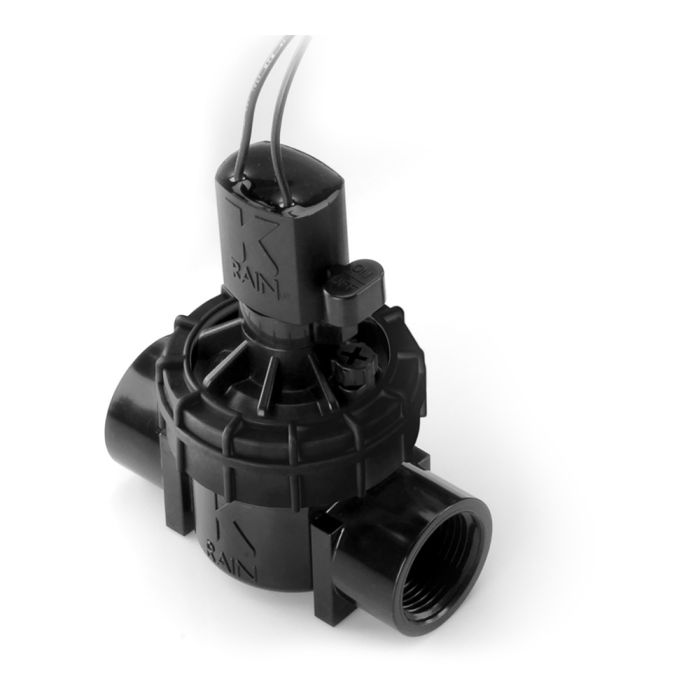

K-Rain ProSeries 150 Jar-Top Valve 1 in. FPT | 7101-J

• Size: 1 in.
• Valve Type: Jar Top
• Connection: Female Pipe Thread

Features & Benefits

• K-Rain's ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits.

• The 1" in. valve has a removable metering pin and external bleed screw promoting easy maintenance and manual operation.

• The 1" in. Jar-Top valve provides the professional easy servicing access without removing the valve from the system.

• Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve.
• Manual External Bleed Screw – Provides for manual operation in system start up.
• Manual Internal Bleed through Solenoid – Provides for manual operation without discharging water outside the valve.
• Captured Plunger – Allows for the solenoid to be removed without losing the internal plunger.
• Flow Control – Allows for precise flow adjustment.
• Threaded Jar-Top – Allows for quick removal of the cap for easy servicing after installation.
• Glass-Filled Nylon Screw Cap – Increased durability.

Product Details

• Standard Solenoid: 24V AC 60 Hz
•  Inrush Current: .43 Amps
• Holding Current: .25 Amps
• 1" Models: Height: 5 1/4" (13,3 cm), Width: 3 1/8" (7,95 cm), Length: 5" (12,7 cm)
•  1" Flow Control Models: Height: 5 7/8" (14,9 cm), Width: 3 1/8" (7,95 cm), Length: 5" (12,7 cm)
• 1" Jar-Top Models: Height: 5 1/4" (13,3 cm), Width: 3" (7,6 cm), Length: 4 3/8" (11,1 cm)
• Pressure Range: 10 - 150 PSI
