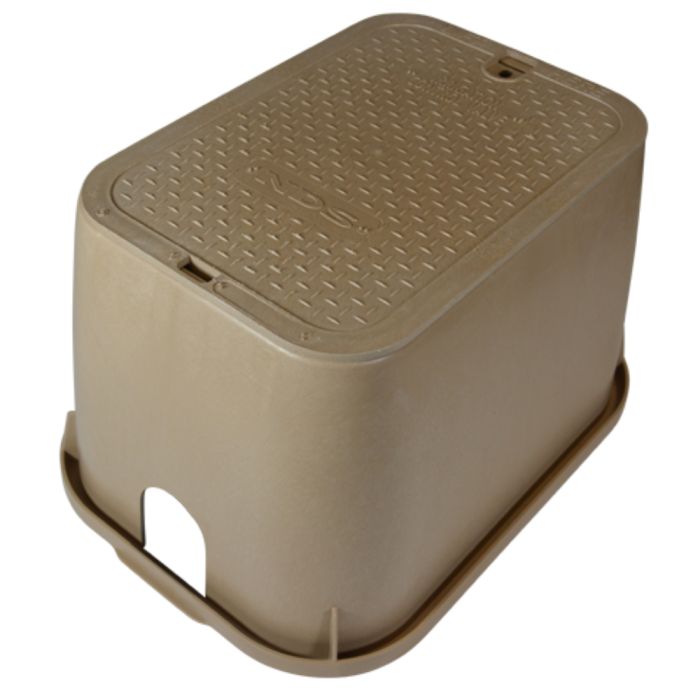

NDS Standard Rectangular Sand Valve Box | NDS-113BCS

• NDS 113BCS Valve Box
• Standard Rectangular Box with Tan Lid
• 14"X19"

Features & Benefits

14"X19" Rectangular structural polyolefin valve box with overlapping lip cover and UV inhibitor.

The NDS STANDARD SERIES 14"X19" rectangular valve box's overlapping covers prevent dirt and grass from settling between body and cover. UV inhibitors are added to prevent discoloration and deterioration; such as cracking or blistering.

• Injection molded of recycled polyolefin material with a melt index between 10-12.

• Coloring and UV stabilizers are added, along with processing lubricants when needed.
• The 14"X19" body shall be tapered and have a minimum wall thickness of .250"
• The body shall have a double wall at the top cover seat with a minimum thickness of .25."
• The cover seat shall have 16 structural ribs on the underside of the seat, each with a minimum thickness of .250"
• The bottom of the body shall have a .500" flange
• The 14"X19" cover shall have a average thickness of .250"
• The valve box shall have a 3/8" 304 SS nut for the bolt-down as a standard feature

The standard 113-BCS Valve Box can comfortably fit a 4-Valve Manifold set (depending on valve design).

Product Details

• Depth: 12 inches
• Lid: 16-3/4 X 11-1/2 inches
• Outside Base: 21 X 16 inches
