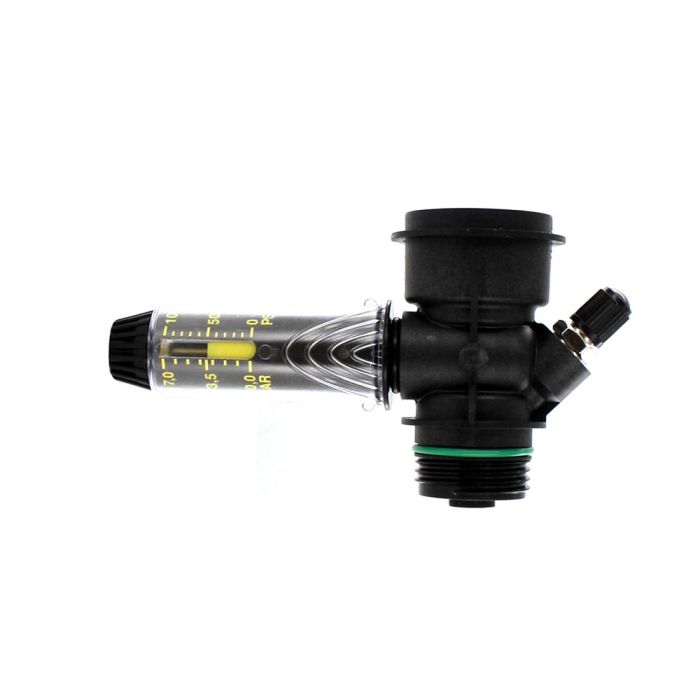

The PRS-Dial is an excellent means of regulating outlet pressure at the valve regardless of incoming pressure fluctuations. The visible scale makes adjustment quick and easy. The regulator fits all Rain Bird PGA, PEB, PESB, PESB-R, GB-R, EFB-CP-R, BPE, and BPES series valves.
The PRS-Dial is an excellent means of regulating outlet pressure at the valve regardless of incoming pressure fluctuations. The visible scale makes adjustment quick and easy. The regulator fits all Rain Bird PGA, PEB, PESB, PESB-R, EFB-CP, and BPES series valves
Regulates and maintains constant outlet pressure between 15 and 100 psi (1.04 to 6.9 bar) within ±3 psi (±0.21 bar)
Ergonomic design with snap-tight cover to prevent vandalism
Waterproof dial cartridge eliminates fogging and binding
Dial cartridge retrofits into all existing PRS-D units
Schrader valve connects pressure hose gauge
Easy field installation. PRS-Dial threads underneath the solenoid and adapter
Corrosion-resistant glass-filled nylon for rugged performance
Product Details
Pressure: Up to 100 psi (6.9 bar)
Regulation: 15 to 100 psi (1.04 to 6.9 bar)
Application Information
Proper operation requires inlet pressure to be a minimum of 15 psi (1.04 bar) higher than the desired outlet pressure
For areas with very high pressure or uneven terrain, install sprinklers with PRS pressure regulating stems and/or SAM check valves
When the inlet pressure exceeds 100 psi (6.9 bar), a pressure regulating master valve or inline pressure regulator is required
Rain Bird does not recommend using the pressure regulating module for applications outside the recommended flow ranges
To reduce the effects of water hammer, Rain Bird recommends flow rates in the supply line not to exceed 7.5 ft/sec (2.29 m/s)
For flows below 10 GPM (2.27 m3/h; 37.8 l/m), Rain Bird recommends the flow control stem be turned down two full turns from the fully open position
Minimizes Wind Drift
Larger water droplets resist wind drift and evaporation, so you always hit your target zone
Quick and Easy Installation
Typically less than 15 minutes to control pressure of an entire zone
