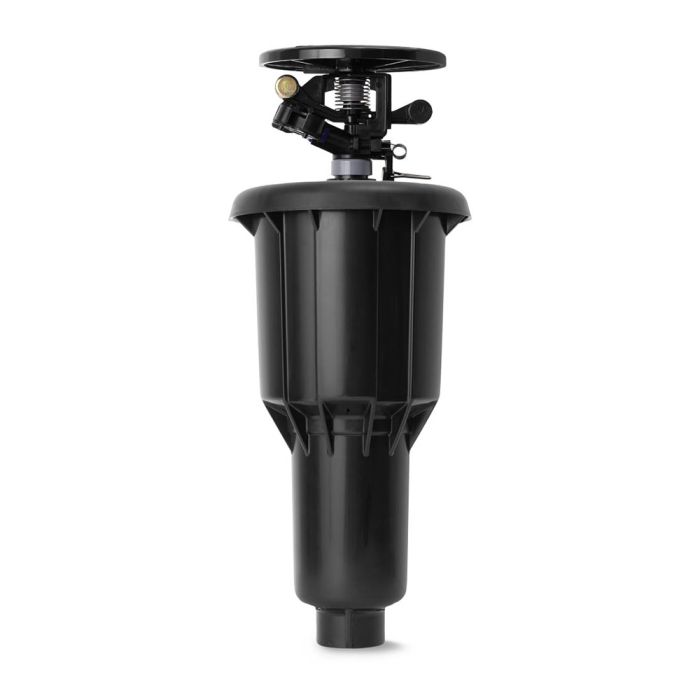

Rain Bird 2045 Maxi-Paw Closed-Case Impact Rotor 3 in. | 2045A

• Rain Bird Closed-Case Impact Rotor
• Series: 2045
• Pop-Up Height: 3 inches

Features & Benefits

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.

The optional Seal - A - Matic prevents run - off, puddling, and erosion caused by low head drainage.And most important, it 's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.The Maxi-Paw Rotor a tradition of excellence.

• Proven impact drive.
• Straight-through flow for superior performance in dirty water.
• Five interchangeable, color-coded MPR nozzles with standard trajectory.
• Two interchangeable low angle (LA) nozzles.
• Easy to adjust, easy to service.
• No tools required to change nozzles.
• Heavy-duty plastic case with sturdy, reinforced ribbed design.
• Double-weighted arm for slower rotation and increased distance of throw.
• Self-flushing inner trip with improved inner trip lever.
• Powerful reverse action.
• Adjustable arm spring for low-pressure and low-gallonage operation.
• Energy efficient, low pressure and low-gallonage operation.
• 360° Full-circle OR arc adjustable from 20° to 340°.
• Precision Jet tube (PJ) minimizes side splash.
• Hooded bearing for longer life.
• Distance control diffuser pin.
• Multi-function, pressure-activated wiper seal.
• Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
• Combination 1/2"" (15/21) or 3/4"" (20/27) bottom inlet.
• Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.

Product Details

• Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)
• Radius: 22 to 45 feet (6,7 to 13,7 m)
• Radius with Radius Reduction Screw: 18 ft (5,4 m)
• Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
• Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
• Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet1/2"" (15/21) FPT side inlet
• Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
• Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
• Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
• LA nozzle outlet trajectory is 11°.

Dimensions

• Overall height: 9 3/10" (23,6 cm)
• Pop-up height: 3" (7,6 cm)
• Exposed surface diameter: 5" (12,7 cm)
