Rain Bird EFB-CP In-Line Valve with Flow Control 1-1/2 in. FPT | EFB-CP-150

In stock
SKU
EFB-CP-150
Free Shipping on Orders over $149
Sales Price $254.95 Our Price $385.95 You save 34%
Quantity of 10
$242.20 / each

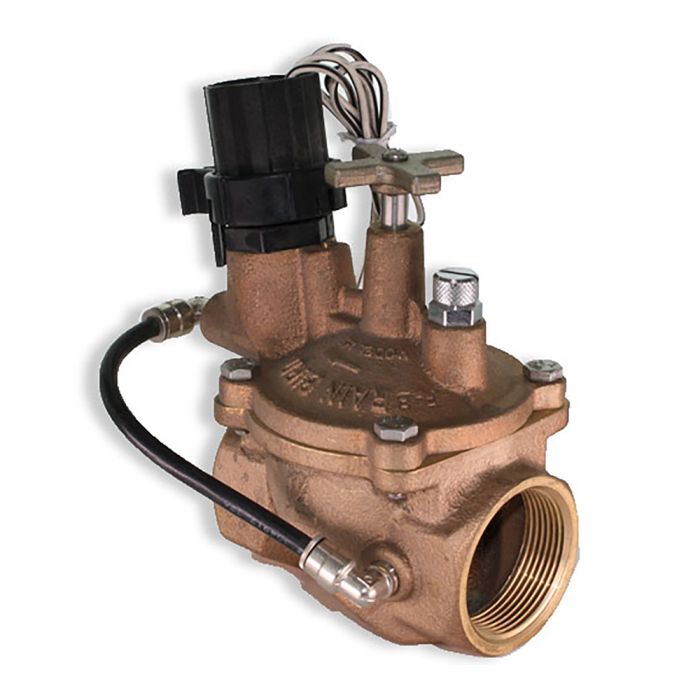

Rain Bird EFB-CP In-Line Valve with Flow Control 1-1/2 in. FPT

  • Size: 1-1/2 in.
  • Valve Type: In-Line
  • Connection: Female Pipe Thread

Features & Benefits

Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water? The EFB-CP's the one!

Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems.

EFB-CP Series valves offer long life and superior performance in high pressure applications.

  • Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs. Prevents flooding, water waste and landscape damage.
  • Slow closing to prevent water hammer and subsequent system damage.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Flow control handle adjusts water flow as needed.
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning on the controller.
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and other repairs.
  • Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
  • Globe configuration.
  • Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment.
  • Purple handle cover included to designate non-potable water.
  • Three-year trade warranty.

Product Details

Dimensions

  • Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6.9 bar)
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
  • Compatible with ESP-LXD decoders.
  • 100-EFB-CP 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
  • 125-EFB-CP 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
  • 150-EFB-CP 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
  • 200-EFB-CP 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.

Operating Range

  • Pressure: 15 to 200 psi (1,04 to 13,80 bar)
  • Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
  • Temperature: up to 150 F (66 C)

Electrical Specifications

  • 24 VAC 50/60 Hz (cycles per second) solenoid
  • Inrush current: 0.41A (9.9VA)
  • Holding current: 0.14A (3.43VA)
  • Coil resistance: 30-39 ohms
More Information
Brand Rain Bird
Body Material Red Brass
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Type Valve
Application Residential and Commercial
Solenoid Yes
Warranty 3 Years
Size 1-1/2 in.
Specifications (166.87 kB)
