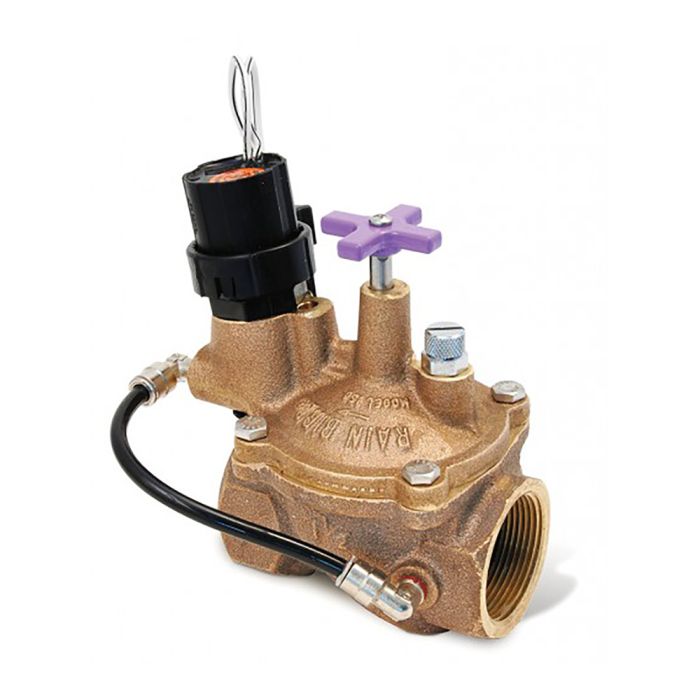

Rain Bird EFB-CP In-Line Valve with Flow Control 1 in. FPT
Size: 1 in.
Valve Type: In-Line
Connection: Female Pipe Thread
Features & Benefits
Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water The EFB-CP's the one! Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems. EFB-CP Series valves offer long life and superior performance in high pressure applications.
Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs. Prevents flooding, water waste and landscape damage.
Slow closing to prevent water hammer and subsequent system damage.
One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
Flow control handle adjusts water flow as needed.
Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning on the controller.
Manual external bleed permits flushing debris from the system. Recommended for system start up and other repairs.
Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment.
Purple handle cover included to designate non-potable water.
Three-year trade warranty.
Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6.9 bar)
Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
Compatible with ESP-LXD decoders.
100-EFB-CP 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
125-EFB-CP 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
150-EFB-CP 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
200-EFB-CP 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.
Pressure: 15 to 200 psi (1,04 to 13,80 bar)
Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
