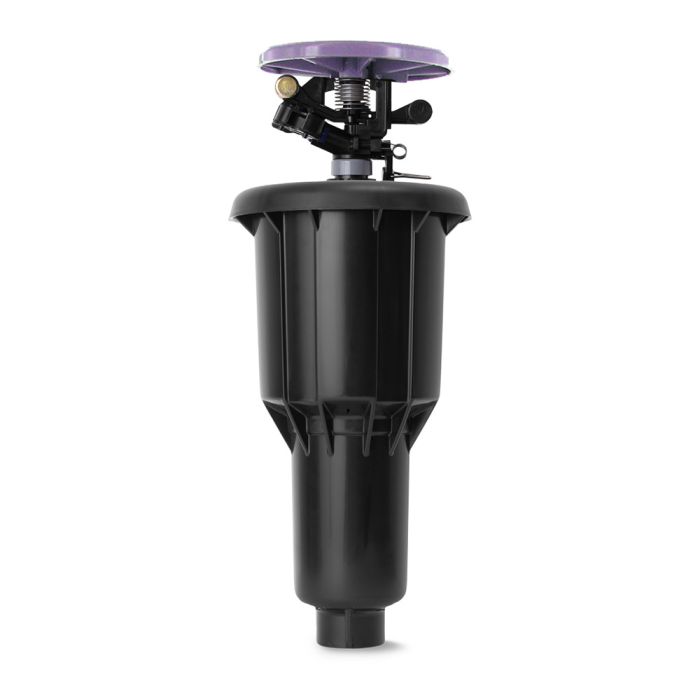

Rain Bird Impact Rotor with Seal-A-Matic (Non-Potable) 3 in. | 2045-08SAM-NP

In stock
SKU
204508SAMNP
Free Shipping on Orders over $149
Sales Price $27.45 Our Price $58.59 You save 53%
Case of 20
$26.90 / each
Case of 240
$26.35 / each

Rain Bird 2045-08SAM-NP Maxi-Paw SAM Impact Rotor for Non-Potable

  • Rain Bird Impact Rotor
  • Check Valve SAM: Seal-A-Matic
  • Non-Potable
  • Pop-Up Height: 3 inches

Features & Benefits

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications. The optional Seal-A-Matic prevents run-off, puddling, and erosion caused by low head drainage. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.The Maxi-Paw Rotor -- a tradition of excellence.

  • Proven impact drive.
  • Straight-through flow for superior performance in dirty water.
  • Five interchangeable, color-coded MPR nozzles with standard trajectory.
  • Two interchangeable low angle (LA) nozzles.
  • Easy to adjust, easy to service.
  • No tools required to change nozzles.
  • Heavy-duty plastic case with sturdy, reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient, low pressure and low-gallonage operation.
  • 360° Full-circle OR arc adjustable from 20° to 340°.
  • Precision Jet tube (PJ) minimizes side splash.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function, pressure-activated wiper seal.
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
  • Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet.
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.

Product Details

  • Overall height: 9 3/10" (23,6 cm)
  • Pop-up height: 3"" (7,6 cm)
  • Exposed surface diameter: 5" (12,7 cm)
  • Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)
  • Radius: 22 to 45 feet (6,7 to 13,7 m)
  • Radius with Radius Reduction Screw: 18 ft (5,4 m)
  • Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
  • Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
  • Combination 1/2" (15/21) or 3/4"" (20/27) FPT bottom inlet1/2"" (15/21) FPT side inlet
  • Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
  • LA nozzle outlet trajectory is 11°.

Related Articles & Videos

Articles

Videos

Maxi-PawTM / Maxi-Paw SAM Performance

PRESSURE PSI NOZZLE RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
25
06  - - - -
07 LA  22 1.5 0.60 0.69
07  32 2.2 0.41 0.48
08  35 2.8 0.44 0.51
10 LA  25 3.4 1.05 1.21
10  38 4.2 0.56 0.65
12  39 5.5 0.70 0.8
35
06  37 2.0 0.28 0.32
07 LA  23 1.9 0.69 0.8
07  37 2.7 0.38 0.44
08  38 3.3 0.44 0.51
10 LA  29 4.0 0.92 1.06
10  41 4.8 0.55 0.64
12  42 6.3 0.69 0.79
45
06  38 2.3 0.31 0.35
07 LA  25 2.1 0.65 0.75
07  39 3.0 0.38 0.44
08  40 3.7 0.45 0.51
10 LA  31 4.5 0.90 1.04
10  42 5.4 0.59 0.68
12  44 7.1 0.71 0.82
55
06  38 2.5 0.33 0.39
07 LA  25 2.3 0.71 0.82
07  41 3.3 0.38 0.44
08  41 4.1 0.47 0.54
10 LA  32 5.0 0.94 1.09
10  43 6.0 0.62 0.72
12  45 7.9 0.75 0.87
60
06  38 2.6 0.35 0.4
07 LA  25 2.4 0.74 0.85
07  41 3.5 0.40 0.46
08  42 4.2 0.46 0.53
10 LA  32 5.4 1.02 1.17
10  44 6.4 0.64 0.74
12  45 8.4 0.80 0.92

Precipitation rates based on half-circle operation

  •  Square spacing based on 50% diameter of throw
  •  Triangular spacing based on 50% diameter of throw

Performance data collected in zero wind conditions Performance data derived from tests that conform with ASAE Standards; ASAE S398.1.

Brand:
Rain Bird
Type:
Impact Rotor
Application:
Residential
Inlet Size:
1/2 or 3/4
Body Height:
9-3/10
Pressure Range (PSI):
25-60
Trajectory Angle:
23°
Warranty:
3 Years
Pop-Up Height:
3 in.
Check Valve:
Check Valve
Riser Material:
Plastic
Spray Pattern:
Part Circle Adjustable (20 - 340)
Advance Features:
Check Valve, Non-Potable / Reclaimed Water
