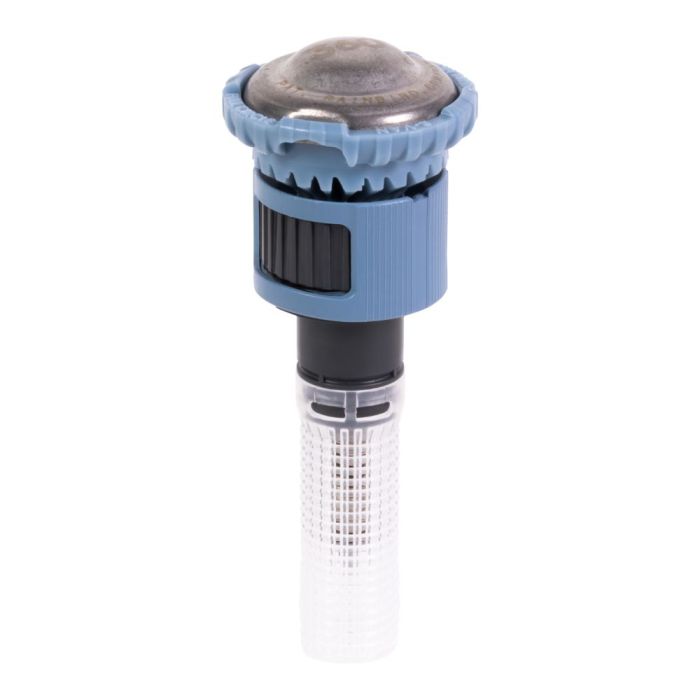

Rain Bird R-VAN14-360 8'-14' Full Circle Rotary Nozzle (360 Degree)
- Fixed 360-degree pattern
- Radius Adjustment: 8 ft - 14 ft
- Delivers water at a low precipitation rate
Features & Benefits
Rotary Nozzles provide unsurpassed design flexibility and highly efficient water distribution from 8 to 14 feet. Rain Bird Rotary Nozzles help reduce water waste and make it easier to design systems.
The Rotary Nozzle is a truly remarkable innovation with a low precipitation rate, highly uniform distribution, and increased radius range, all in a nozzle that fits on a Rain Bird spray head.
- Fewer zones, faster installs - System complexity and cost are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
- Efficient water distribution - multiple rotating streams deliver close-in watering and even coverage throughout the radius range. The low precipitation rate significantly reduces wasteful run-off and erosion
- Ultimate retrofit solution - low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing.
- Low precipitation rate - 0.60 in/hr (15,2 mm/hr) - reduces run-off and erosion.
- Multiple, rotating streams uniformly distribute water throughout the radius range.
- Matched precipitation rates across radii and patterns simplify the design process.
- With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost.
- Can reduce flow by up to 60% and improve water efficiency by up to 30%
Product Details
Operating Range
- Pressure range: 20 - 55 psi
- Spacing: 8' to 14' (based on zero wind conditions)
- The Rotary Nozzle shall have multiple arced streams and have a matched precipitation rate of 0.60 in/hr.
- The Rotary Nozzle shall be constructed of UV-resistant plastic. The radius adjustment screw shall be of stainless steel.
