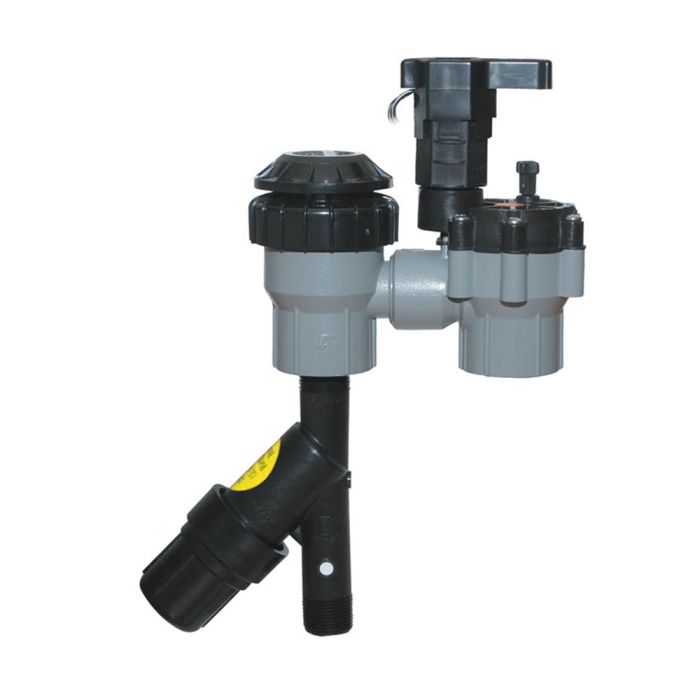

Rain Bird XACZ 3 - 15 GPM Drip Zone Assembly 1 in. FPT | XACZ100PRF

In stock
SKU
XACZ100PRF
Free Shipping on Orders over $149
Sales Price $51.95 Our Price $82.26 You save 37%

Rain Bird XACZ 3 - 15 GPM Drip Zone Assembly 1 in. FPT

  • Size: 1 in.
  • Flow Rate: 3 - 15 GPM
  • Connection: Female Pipe Thread

Features & Benefits

Rain Bird Control Zone Kits provide all of the components necessary for on/off control, filtration, and pressure regulation in a single package, making them simple to order and easy to install.

  • Complete, two-piece Control Zone Kits include the field-proven ASVF valve which has an atmospheric vacuum breaker for backflow prevention and an IAPMO rating
  • These PR Filter kits provide on/off control, filtration, and pressure regulation with only two parts; so there is less chance of leakage at the connections, both at installation and over the life of the system

Product Details

Operating Range

  • Flow: 3.0 to 15.0 gpm (11.4 to 56.8 l/m)
  • Inlet pressure: 20 to 150 psi (1.4 to 10.3 bar)
  • Filtration: 200 mesh stainless steel screen (75 micron)
  • Regulated pressure: 40 psi (2.8 bar)

Installation Note:

When installing indoors or on a design where the emission points are more than 5ft. above the Control Zone Kit, you must install a check valve after the pressure-regulating filter (RBY or Basket Filter).  The regulator has a permeable white dot that is designed to relieve excess pressure by slowly releasing water droplets.

  • Filter must be installed downstream of any valve; warranty will be void if installed under constant pressure
Flow (GPM) Flow (I/m) Inlet Pressure (psi)  Inlet Pressure (bar)
3.0 11.4 43.3 3.0
5.0 18.9 44.7 3.1
7.0 26.5 46.2 3.2
9.0 34.1 47.3 3.3
11.0 41.6 50.8 3.5
13.0 49.2 55.4 3.8
15.0 56.8 59.7 4.1
More Information
Brand Rain Bird
Operating PSI 20 - 150 PSI
Filter 200 Mesh
Warranty 3 Years
Size 1 in.
Flow Rate 3 - 15 GPM
Connection FPT
Pressure Regulator 40 PSI
Type Drip Zone Assembly
Specifications (91.61 kB)
