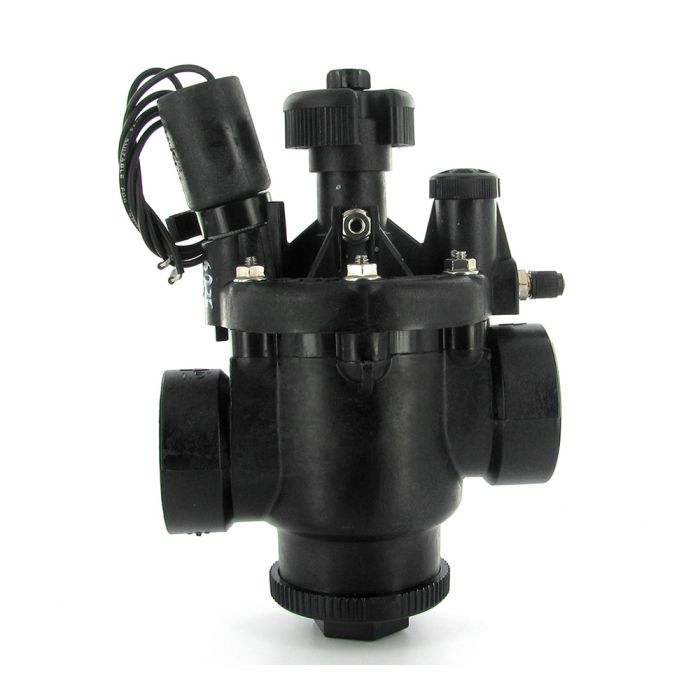

Toro P200 In-Line / Angle Valve with Flow Control 1-1/2 in. FPT | P220-26-06

In stock
SKU
P220-26-06
Free Shipping on Orders over $149
Sales Price $96.95 Our Price $155.95 You save 38%
Quantity of 12
$95.01 / each

Toro P200 In-Line / Angle Valve with Flow Control 1-1/2 in. FPT

Overview

  • Size: 1-1/2 in.
  • Connection: Female Pipe Thread
  • Valve Type: In-Line / Angle

Features & Benefits

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi, but also have the ability to pressure regulate the flow through the valve anywhere from 5-100 psi.

  • Globe/Angle configuration
  • Rugged, reinforced bonnet design withstands tough and high-pressure applications
  • Precise pressure control option with compact EZReg dial-design technology (factory- or field-installed - no need to remove solenoid)
  • Pressure regulates in electric and manual modes, serviceable under pressure
  • Forward-flow design for more precise regulation
  • Standard, built-in Schrader-type valve for downstream pressure verification
  • Anti-vandal dust cap on pressure-regulating models
  • No external tubing for either electric or pressureregulating models
  • Internal downstream manual bleed keeps valve box dry
  • External manual bleed for system flushing
  • Ergonomic manual flow control: adjustable to zero flow
  • Flow control independent of solenoid
  • Tough, double-beaded, fabricreinforced rubber diaphragm rated at 750-psi (50 Bar) burst pressure
  • Self-aligning bonnet to ensure correct installation
  • Stainless steel spare nut for convenience
  • Skirt on flow control for debris resistance
  • Self-cleaning, stainless steel metering rod
  • Brass flow control stem - 2" and 3" (50mm and 75mm) models
  • Positive O-ring seal on inlet plug prevents leaks
  • Low-flow capability down to 5 GPM (20 LPM)
  • Low-power requirement for longer wire runs

Product Details

  • Five-year warranty
  • 18" (45cm) lead wires for easy installation
  • 220-psi (15 Bar) maximum pressure rating

Flow range:

  • 1-1/2" - 30 - 110 GPM (40mm - 120 - 400 LPM)

Operating pressure:

  • Electric: 10 - 220 psi (0,7 - 15 Bar)
  • Pressure regulating models:
  • Outlet: EZR - 30 5 - 30 psi, +/- 3 psi (0,3 - 2,0 Bar, +/- 0,2 Bar)
  • Outlet: EZR-100 5 - 100 psi, +/- 3 psi (0,3 - 7,0 Bar, +/- 0,2 Bar)
  • Inlet: 15 - 220 psi (1,0 - 15 Bar)
  • Minimum pressure differential (between inlet and outlet required for regulation): 10 psi (0,7 Bar)
  • Burst pressure safety rating: 750 psi (50 Bar)

Solenoid: 24 V ac (standard)

  • Inrush: 0.40 amps, 11.50 VA
  • Holding: 0.20 amps, 5.75 VA

Dimensions:

  • 1-1/2" - 7-1/4" H x 3-5/8" W (40mm - 184mm x 92mm)
More Information
Brand Toro
Flow Control Flow Control
Valve Type In-Line / Angle
Connection FPT
Type Valve
Body Material Glass-Filled Nylon
Pressure Regulated Yes
Application Commercial
Solenoid Yes
Warranty 5 Years
Size 1-1/2 in.
