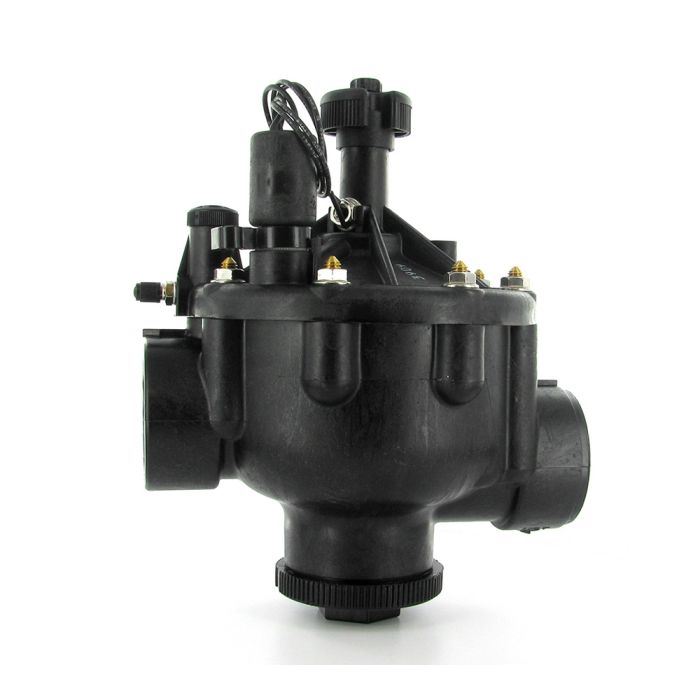

Toro P200 Inline / Angle Valve with Flow Control 2 in. FPT | P220-26-08

SKU
P220-26-08
Free Shipping on Orders over $149
Sales Price $189.64 Our Price $255.95 You save 26%

Toro P200 In-Line / Angle Valve with Flow Control 2 in. FPT

Overview

  • Size: 2 in.
  • Valve Type: In-Line / Angle
  • Connection: Female Pipe Thread

Features & Benefits

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi, but also have the ability to pressure regulate the flow through the valve anywhere from 5-100 psi.

  • Tough, 33% glass-filled nylon (GFN) and stainless steel construction
  • Globe/Angle configuration
  • Rugged, reinforced bonnet design withstands tough and high-pressure applications
  • Precise pressure control option with compact EZReg dial-design technology (factory- or field-installed - no need to remove solenoid)
  • Pressure regulates in electric and manual modes, serviceable under pressure
  • Forward-flow design for more precise regulation
  • Standard, built-in Schrader-type valve for downstream pressure verification
  • Anti-vandal dust cap on pressure-regulating models
  • No external tubing for either electric or pressureregulating models
  • Internal downstream manual bleed keeps valve box dry
  • External manual bleed for system flushing
  • Ergonomic manual flow control: adjustable to zero flow
  • Flow control independent of solenoid
  • Tough, double-beaded, fabricreinforced rubber diaphragm rated at 750-psi (50 Bar) burst pressure
  • Self-aligning bonnet to ensure correct installation
  • Stainless steel spare nut for convenience
  • Skirt on flow control for debris resistance
  • Self-cleaning, stainless steel metering rod
  • Brass flow control stem - 2" and 3" (50mm and 75mm) models
  • Positive O-ring seal on inlet plug prevents leaks
  • Easily serviced without system removal
  • Proven, encapsulated, injectionmolded solenoid with captured hex plunger and spring
  • Low-power requirement for longer wire runs
  • 18" (45cm) lead wires for easy installation
  • Recycled water solenoid with tag assembly available as a service kit (Part No. RW60-Kit)

Product Details

  • 220-psi (15 Bar) maximum pressure rating
  • Five-year warranty
  • Low-flow capability down to 5 GPM (20 LPM)

Flow range:

  • 2" - 80 - 180 GPM (50mm - 300 - 680 LPM)

Operating pressure:

  • Electric: 10 - 220 psi (0,7 - 15 Bar)

Pressure regulating models:

  • Outlet: EZR - 30 5 - 30 psi, +/- 3 psi (0,3 - 2,0 Bar, +/- 0,2 Bar)
  • Outlet: EZR-100 5 - 100 psi, +/- 3 psi (0,3 - 7,0 Bar, +/- 0,2 Bar)
  • Inlet: 15 - 220 psi (1,0 - 15 Bar)
  • Minimum pressure differential (between inlet and outlet required for regulation): 10 psi (0,7 Bar)
  • Burst pressure safety rating: 750 psi (50 Bar)

Body styles:

  • Globe/angle valve - 1", 1-1/2", 2" and 3" (25mm, 40mm, 50mm, 75mm) female-threaded inlet and outlet
  • BSP threads available
  • E2003 DC-latching solenoid available
  • Solenoid: 24 V ac (standard)
  • Inrush: 0.40 amps, 11.50 VA
  • Holding: 0.20 amps, 5.75 VA

Dimensions:

  • 2" - 9-1/2" H x 6-1/8" W (50mm - 241mm x 156mm)
More Information
Brand Toro
Product Type Angle Valves
Body Material Glass-Filled Nylon
Flow Control Flow Control
Valve Type In-Line / Angle
Connection FPT
Pressure Regulated Yes
Application Commercial
Solenoid Yes
Warranty 5 Years
Size 2 in.
