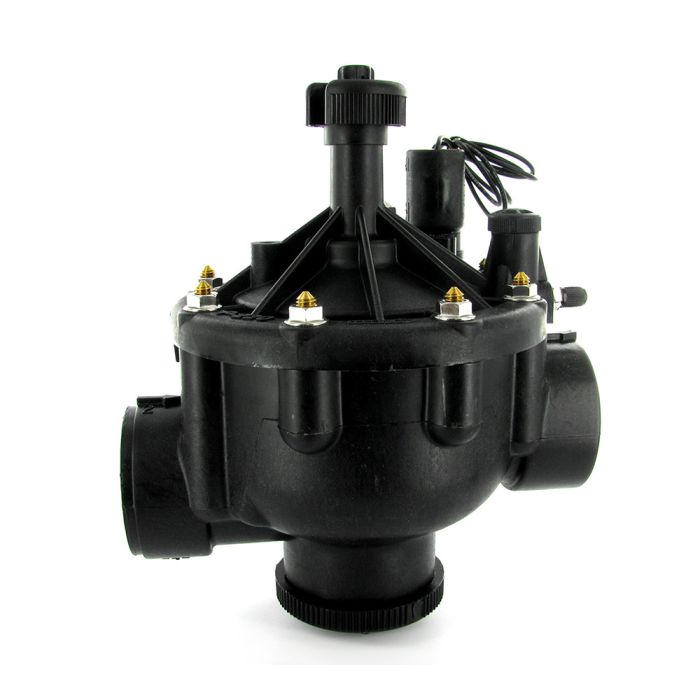

Toro P220 In-Line / Angle Valve with Scrubber and Flow Control 2 in. FPT | P220S-26-08

Features & Benefits

• 220-psi (15 Bar) maximum pressure rating
• Tough, 33% glass-filled nylon (GFN) and stainless steel construction
• Globe/Angle configuration
• Rugged, reinforced bonnet design withstands tough and high-pressure applications
• Precise pressure control option with compact EZReg dial-design technology (factory- or field-installed - no need to remove solenoid)
• Pressure regulates in electric and manual modes, serviceable under pressure
• Forward-flow design for more precise regulation
• Standard, built-in Schrader-type valve for downstream pressure verification
• Anti-vandal dust cap on pressure-regulating models
• No external tubing for either electric or pressureregulating models
• Internal downstream manual bleed keeps valve box dry
• External manual bleed for system flushing
• Ergonomic manual flow control: adjustable to zero flow
• Flow control independent of solenoid
• Tough, double-beaded, fabricreinforced rubber diaphragm rated at 750-psi (50 Bar) burst pressure
• Self-aligning bonnet to ensure correct installation
• Stainless steel spare nut for convenience
• Skirt on flow control for debris resistance
• Self-cleaning, stainless steel metering rod
• Brass flow control stem - 2" and 3" (50mm and 75mm) models
• Positive O-ring seal on inlet plug prevents leaks
• Low-flow capability down to 5 GPM (20 LPM)
• Easily serviced without system removal
• Proven, encapsulated, injectionmolded solenoid with captured hex plunger and spring
• Low-power requirement for longer wire runs
• 18" (45cm) lead wires for easy installation
• Recycled water solenoid with tag assembly available as a service kit (Part No. RW60-Kit)
• Five-year warranty

Specifications

• Flow range:
  • 1" - 5 - 50 GPM (25mm - 20 - 200 LPM)
  • 1-1/2" - 30 - 110 GPM (40mm - 120 - 400 LPM)
  • 2" - 80 - 180 GPM (50mm - 300 - 680 LPM)
  • 3" - 150 - 300 GPM (75mm - 600 - 1100 LPM)
• Operating pressure:
  • Electric: 10 - 220 psi (0,7 - 15 Bar)
• Pressure regulating models:
  • Outlet: EZR - 30 5 - 30 psi, +/- 3 psi (0,3 - 2,0 Bar, +/- 0,2 Bar)
  • Outlet: EZR-100 5 - 100 psi, +/- 3 psi (0,3 - 7,0 Bar, +/- 0,2 Bar)
  • Inlet: 15 - 220 psi (1,0 - 15 Bar)
  • Minimum pressure differential (between inlet and outlet required for regulation): 10 psi (0,7 Bar)
• Burst pressure safety rating: 750 psi (50 Bar)
• Body styles:
  • Globe/angle valve - 1", 1-1/2", 2" and 3" (25mm, 40mm, 50mm, 75mm) female-threaded inlet and outlet
• BSP threads available
• E2003 DC-latching solenoid available
• Solenoid: 24 V ac (standard)
  • Inrush: 0.40 amps, 11.50 VA
  • Holding: 0.20 amps, 5.75 VA
• Dimensions:
  • 1" - 6-3/4" H x 3-5/8" W (25mm - 171mm x 92mm)
  • 1-1/2" - 7-1/4" H x 3-5/8" W (40mm - 184mm x 92mm)
  • 2" - 9-1/2" H x 6-1/8" W (50mm - 241mm x 156mm)
  • 3" - 10-3/4" H x 6-1/8" W (75mm - 273mm x 156mm)
