Wilkins 14-ZWFR Freeze Prevention Valve 1/4 in. MPT x FPT with 1/8 in. Test Cock | WK14-ZWFR

Wilkins 14-ZWFR 1/4" in. Freeze Prevention Valve With Test Cock

Designed to prevent freeze damage to backflow preventers installed above ground in geographical regions subject to oc- casional freezing. The model ZWFR senses water tempera- ture and opens at 35°F to discharge near freezing water from the backflow device and draw warmer supply water through the valve. The model ZWFR closes when water temperature reaches 40°F.

Features & Benefits

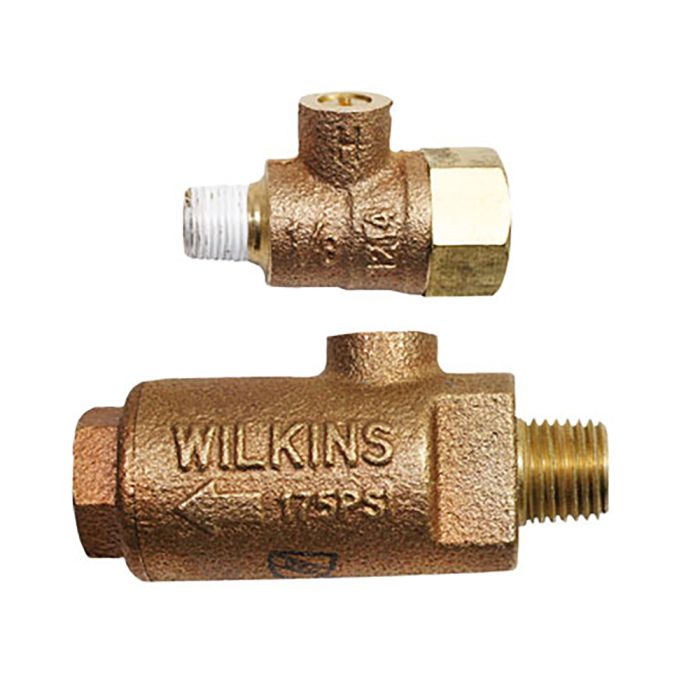

Kit Includes

• 1- Freeze Relief Valve
• 1- 1/8" Test Cock

Installation

• The Model ZWFR should be installed on the downstream test cock or downstream attached piping of any backflow device installed above ground where freezing is a concern.
• NOTICE: If the Model ZWFR is installed on a test cock, the test cock must be left in the open position to allow the ZWFR to function properly.
• The device is best suited to be installed in the vertical down position, but may also be installed at any orientation up to horizontal. Orientations above horizontal may cause an ice dam during operation and impair valve function.
• The device is not intended to replace the standard winteriza- tion process.
• WARNING: Under freezing conditions the Model ZWFR will discharge water from the outlet port. Provisions must be made to insure that discharge will not damage surrounding property or equipment.
• Ideal for regions where occasional/unexpected freezes occur, yet winterization (flushout) is not common
• Compact size and shape allow for ease of installation
• Hassle Free design requires no periodic maintenance, and can be used with all major brands of backflow preventer
• Ideally suited for double-check and RP assemblies, vacuum breakers, and detector assemblies on large backflow products

HCV Product Installation

• Flush the system until water from lateral line runs clean.
• Use only Teflon paste or tape on all threaded connections ( note: Do not use Pipe Dope or solvent cement on threaded connections.) Apply the Teflon around the male adapter or nipple threads, then insert it into the HCV. Tighten by hand and then using a wrench, turn the adapter/nipple 1/2 turn to ensure a good seal. Overtighting may break the valve.
• Glue the male adapters to the pipe, or thread the nipple into the PVC fitting.
• Connect either the spray head or rotor to the HCV also using Teflon paste or tape.
