DIG 305DC Inline Valve with Flow Control and DC Latching Solenoid 3/4 in. FPT | 305DC-075

Name: DIG 305DC Inline Valve with Flow Control and DC Latching Solenoid 3/4 in. FPT | 305DC-075
Brand: DIG
SKU: 305DC-075
Price: 48.78 USD
Availability: InStock

SKU

305DC-075

Sales Price $48.78 Our Price $63.95 You save 24%

Overview

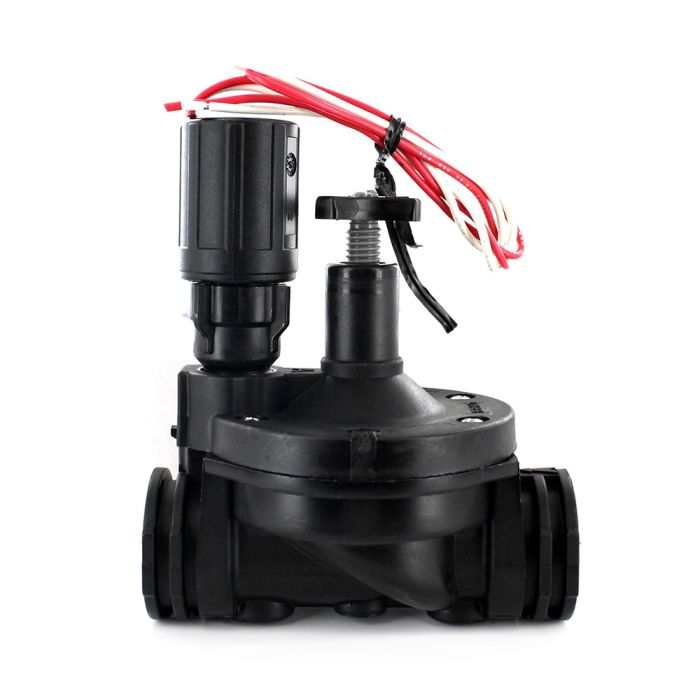

DIG 305DC In-Line Valve with Flow Control and DC Latching Solenoid 3/4 in. FPT

Size: 3/4 in.
Valve Type: In-Line
Connection: Female Pipe Thread

Features & Benefits

DIG 305DC Series in-line valves and actuators operates with the LEIT-2 and LEIT-2ET controllers. They are designed to perform in a wide range of field conditions providing a reliable solution in alternative power. These valves feature a heavy-duty construction with internal manual bleed, encapsulated plunger and a supportive diaphragm, ensuring dependable operation.

Adaptable to many brand name valves using DIG valve adapters
Sealed plastic over molding technique for waterproof construction
Encapsulated plunger and spring for reliable operation
Internal bleed, manual override for manual ON/OFF
Constructed of glass reinforced nylon with a stainless steel spring
High flow with low pressure loss
Normally closed

Easy in-line maintenance
Smooth valve opening and closing prevents pressure surge hazards
Rugged, reinforced self cleaning diaphragm provides reliable operation even with contaminated water
Flow control handle for water flow adjustment and manual shutoff
Manual internal bleed override beneath the LEMA solenoid for opening the valve without external water spill

Product Details

Flow Rate: 3/4": 0.1-28 GPM 1": 0.2-35 GPM 1-1/2": 20-132 GPM 2": 30-160 GPM
Operating Pressure: 10-150 PSI
Temperature Range: up to 170 F degrees
Body Style: Globe
Dimensions: 11.25"L x 9"H
3/4", 1", 1-1/2", and 2" FNPT inlet and outlet
Electrical Specs: 2-way magnetic latching, normally closed, bidirectional pulse
Materials: Valve Body and Cover: Glass Reinforced Nylon

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	DIG
Product Type	Inline Valves
Body Material	Glass-Reinforced Nylon
Flow Control	Flow Control
Valve Type	In-Line
Connection	FPT
Application	Residential and Commercial
Solenoid	Yes
Warranty	3 Years
Size	3/4 in.
