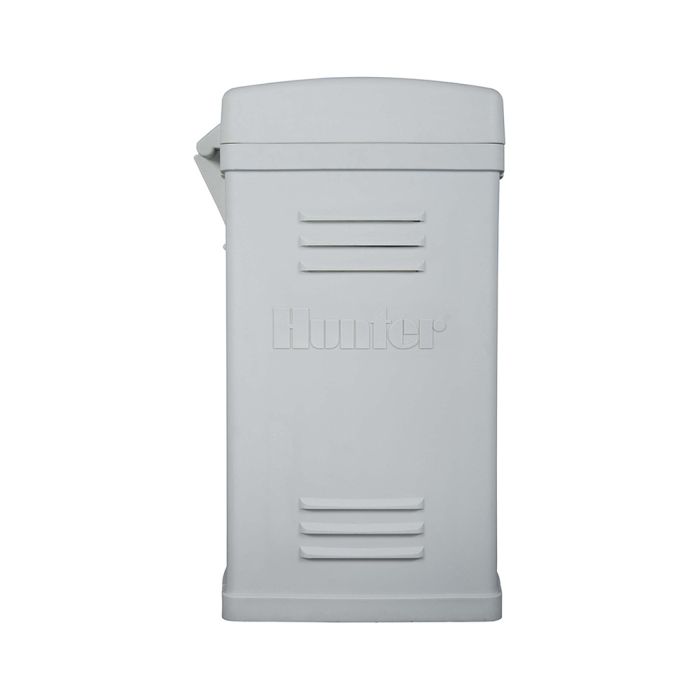

Hunter ICC2 8 Station Outdoor Plastic Pedestal Controller | I2C-800-PP

SKU
I2C-800-PP
Free Shipping on Orders over $149
Sales Price $2,265.37 Our Price $4,005.95 You save 43%

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.

Hunter I2C-800-PP ICC2 Plastic Pedestal 8 Station Controller

8 station, plastic pedestal

ICC2 is a value-packed, light-to-mid size commercial irrigation controller that delivers more than you expect, just like its famous predecessor. It is designed to control larger projects (up to 54 stations) and offers the water savings you expect from a Hunter controller.

ICC2 can run any two of its four automatic programs simultaneously. The ICC2 facepack and station output modules (with enhanced surge protection) are compatible with the original ICC controllers, in four and eight station increments. An optional expansion module allows up to 54 stations in ICC2 metal enclosures and 38 stations in plastic enclosures.

ICC2 offers simple programming with a high-visibility backlit display and customizable language overlays. It also includes advanced features like Easy RetrieveTM memory backup, Cycle and Soak, and Seasonal Adjustment.

ICC2 controllers are prewired for remote control with Hunter ROAM and ROAM XL transmitters, and have built-in Solar Sync for automatic water savings, with an optional sensor. ICC2 is available as a plastic outdoor wall mount, metal outdoor wall mount, stainless steel wall mount, or plastic pedestal. Optional matching metal pedestals in gray or stainless are also available.

Features & Benefits

  • Number of stations: Up to 54 (metal enclosure) or 38 (plastic enclosure)
  • Type: Modular, expansion modules in 4 and 8 station increments, plus 22-station super module
  • Enclosures: Outdoor, metal, plastic, stainless steel, and plastic pedestal (120/230 VAC)
  • Independent programs: 4, any two may run simultaneously
  • Start times: 8 per program
  • Max station run time: 12 hours
  • Warranty period: 5 years

Electrical Specifications

  • Transformer input: 120/230 VAC, dual tap Transformer output: 1.4 A
  • Current draw: 120 VAC, Standby 0.13 A (3.9W), Max 0.35 A, (19.85 W)
  • Current draw: 230 VAC, Standby 0.12 A (5.56W), Max 0.22 A (23.5 W)
  • Station output: Up to .56 A
  • P/MV output: Up to .56 A
  • Sensor inputs: 1 (Clik or Solar Sync)
  • Operating temperature: 0 Degrees to 140 Degrees F

Approvals

  • CE, UL, cUL, RCM, FCC
  • Enclosure rating:
    • Plastic, IP-54,
    • Steel, IP-54
    • Plastic Pedestal, IP-24

Manuals and Literature

ICC2 Submittal Sheet ICC2 Brochure ICC2 Installation Guide ICC2 Quick Start Guide ICC2 Door Card ICC2 Wiring Card ICC2 Written Specifications
More Information
Brand Hunter
Expandability Modular
Power Source AC Powered
Type Modular Controller
Number of Programs 4
Start Times Per Program 8
Max Station Run Time (HRS) 12
Sensor Inputs 1
Indoor Yes
Outdoor Yes
Sensor Compatible Rain, Freeze, Solar
Rain Sensor Compatible Yes
Solar Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Residential|Light Commercial|Commercial
Warranty 5 Years
Series ICC2
Zones 8
Enclosure Type Indoor/Outdoor
Manual (6.12 MB)
