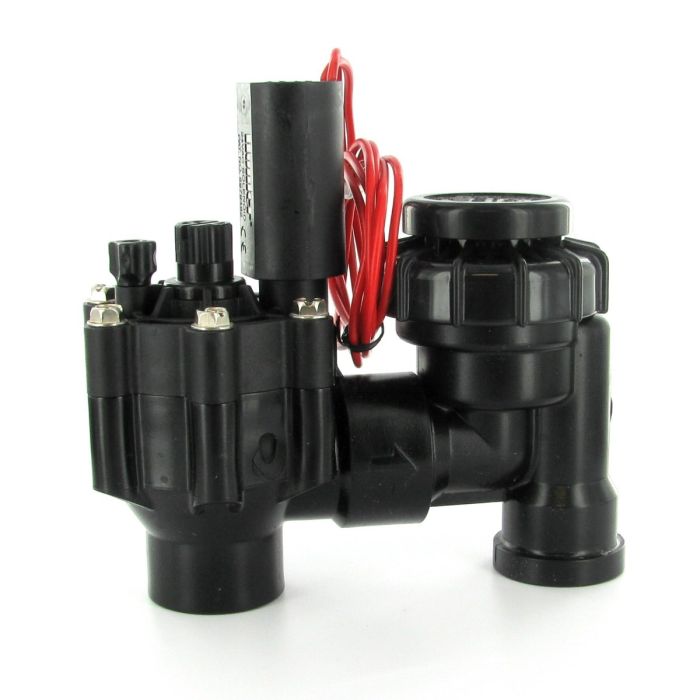

Hunter PGV Anti-Siphon Valve with Flow Control 3/4 in. FPT | PGV-075-ASV

SKU
PGV-075-ASV
Free Shipping on Orders over $149
Sales Price $19.25 Our Price $40.95 You save 53%
Quantity of 10
$16.89 / each

Hunter PGV Anti-Siphon Valve with Flow Control 3/4 in. FPT

  • Size: 3/4 in.
  • Valve Type: Anti-Siphon
  • Connection: Female Pipe Thread
  • 1 removable flow control handle included per order

Features & Benefits

The Hunter ASV-Series Anti-Siphon Valve is a backflow prevention device designed for residential and light commercial sprinkler and irrigation systems. This all-in-one anti-siphon valve unit provides features and benefits such as stainless steel bonnet, screws, hardware and springs, a leak-proof diaphragm, heavy-duty PVC construction that is UV and corrosion resistant and internal bleed. The Hunter ASV-Series Valve also features flow control and manual shutoff attributes.

Saving time at a job site whether for installation or a maintenance call - is always a primary concern. The slip version of the Hunter ASV-Series Valve makes new installs as well as retrofits a speedy task.

The slip configuration permits a solvent-weld connection directly to PVC pipe and eliminates the chance for threaded fitting leaks, thus it's a very adaptable valve for the residential market. Not to mention, the Hunter ASV-Series Valve is perfectly sized to replace existing valves without reworking piping. Now that's fast!

  • Heavy-duty Hunter solenoid Provides extended life and dependability
  • High grade construction Stainless steel and durable PVC to resist wear
  • Internal manual bleed Easy to use and keeps valve area dry
  • Standard flow control Adjust the flow of each zone on a system
  • Optional slip configuration Permits direct solvent connection to PVC pipe
  • Rigid diaphragm support Works to prevent stress failure in tough conditions
  • Captive solenoid plunger and anti-siphon poppet No lost parts during routine service

Product Details

  • Flow: 1 to 30 GPM (0.23 to 6.8 m3/hr; 3.8 to 114 l/min)
  • Pressure: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
  • Heavy-duty solenoid: 24VAC, 370mA inrush current, 190mA holding current, 60 cycles; 475mA inrush current, 230mA holding current, 50 cycles
  • IAPMO, ASSE 1001 and City of Los Angeles approved
  • Internal Manual Bleed: All Hunter valves feature internal manual bleed, ensuring a neat, dry valve box.

More Information
Brand Hunter
Body Material Durable PVC
Flow Control Flow Control
Valve Type Anti-Siphon
Connection FPT
Type Valve
Application Residential
Solenoid Yes
Warranty 2 Years
Size 3/4 in.
Brochure (436.57 kB)
Specifications (106.12 kB)
