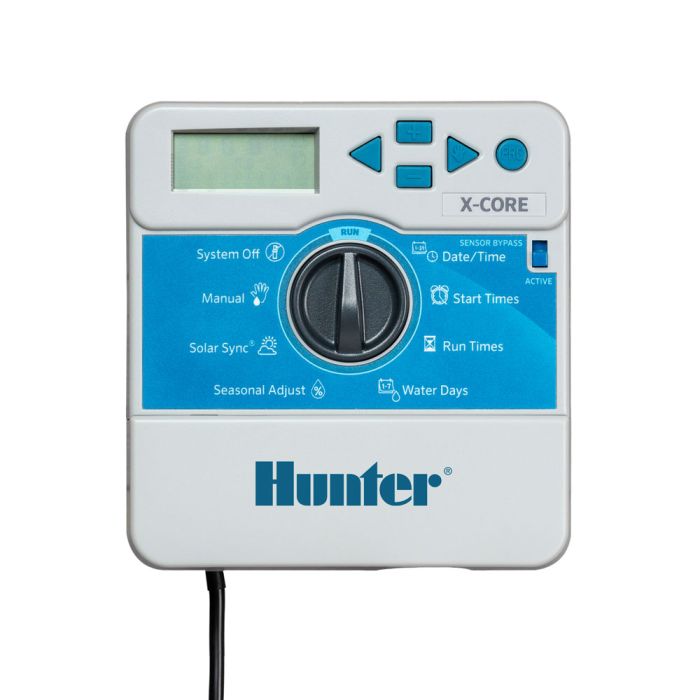

Hunter X-CORE 6 Station Indoor Controller | XC-600i

In stock
SKU
XC-600i
Free Shipping on Orders over $149
Sales Price $76.70 Our Price $126.00 You save 39%

Hunter X-CORE 6 Station Indoor Controller

  • Hunter X-CORE Indoor Controller (XC-600i)
  • 6 Station (Fixed)
  • Standard Controller

Features & Benefits

This entry-level residential controller offers simple operation with Solar Sync compatibility. With easy-to-configure control for up to 8 stations, including 3 programs and 4 start times each, the X-Core is the perfect solution for residential applications. Install the revolutionary Solar Sync ET sensor that regulates irrigation run times daily based on locally measured weather. X-Core is also compatible with Hunter remotes for quick, wireless activation of irrigation. Installation, operation, and maintenance are designed to be simple while still delivering optimal efficiency and reliabilit

WaterSense Smart Watering Controller By Adding Solar Sync

By adding a Solar Sync to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller.

Easy Retrieve Memory

A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

Programmable Rain Delay

The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.

Quick Check

The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.

Non-Volatile Memory

This feature offers protection against unreliable power, retaining current time, date, and program data.

Automatic Short Circuit Protection

Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.

Seasonal Adjustment: Global or Automatic Updates with Solar Sync

This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program. This model offers two different ways to use Seasonal Adjustment to reduce water usage: Global and Daily.

Key Benefits

  • Number of stations:
  • 2, 4, 6, or 8 (fixed models)
  • Solar Sync® accessory saves water based on local weather conditions
  • Built-in key lock on outdoor models protects against vandalism
  • 3 flexible programs with 4 start times each and up to 4-hour run times
  • QuickCheck provides simple diagnostics of faulty field wiring
  • Hide Programs setting shows 1 program and 1 start time for simplification
  • Suspend irrigation up to 99 days during the off-season
  • Short-circuit protection detects wiring faults and skips the station without system damage
  • Easy Retrieve memory backs up the full irrigation schedule
  • Delay Between Stations for slow-closing valves or pump recharge
  • Cycle and Soak prevents water waste and runoff in areas with elevation changes or tight soils
  • Seasonal adjustment for quicker schedule adjustments without changing run times

Global: The Global option provides a Seasonal Adjustment percentage to all station Run Times on all of the controller's Programs.

Daily: With the addition of a Solar Sync ET Sensor, the controller has the ability to automatically implement daily adjustments based on measured local weather.

Delay Between Stations

Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.

Sensor Programmability

The ability to specify which program will be shut down in response to a specific sensor alarm. This allows programs unaffected by the sensor to continue automatic operations.

Product Details

  • Number of stations: 2, 4, 6, 8
  • Type: Fixed
  • Enclosures: Indoor and outdoor
  • Independent programs: 3
  • Start times per program: 4
  • Max. station run time: 4 hrs
  • Transformer input: 120 VAC, 60 Hz
  • Transformer output: 24 VAC, 1 A
  • Station output: 24 VAC, 0.56 A
  • P/MV output: 24 VAC, 0.28 A
  • Sensor inputs: 1
  • Approvals: Plastic IP54, UL, c-UL, FCC, CE, RCM
  • Warranty period: 2 years

Purchase An X-Core 6 Station Controller At Sprinkler Warehouse For Low Prices And Great Deals

The Hunter X-CORE 6 Station Indoor Controller Benefits

The Hunter X-Core series controller is an entry-level timer that offers easy-to-use operation and weather sensor compatibility. These timers are available in 2, 4,6, or 8 stations that are not expandable. The XC-600i is a 6 station indoor version of these remarkable irrigation controllers. For more information about these durable controllers check out Sprinkler Warehouse's irrigation tutorial videos and articles.

Learn More About The X-Core Series Compatible Sensors

The X-Core controller is compatible with a variety of weather sensors including the Solar-Sync, Rain-Clik, Freeze-Clik, and Wind-Clik. These sensors are available in wired and wireless options on the Sprinkler Warehouse website and in-store. These sensors are designed to interrupt automatic watering programs in the event that local weather conditions require it. For example, if the rain sensor indicates heavy rainfall, it will automatically override the pre-programmed instructions.

Hunter X-Core Series Controller Advanced Features:

  • Easy Retrieve Memory
  • Programmable Rain Delay
  • Quick Check
  • Non-Volatile Memory
  • Seasonal Adjustment

Take Control Of Your X-Core 6-Station Timer With These Remote Kits

Control your irrigation system from a distance with the compatible ROAM and ROAM XL remotes. The standard ROAM remote allows the user to operate their controller from a distance up to 1,000 feet while the ROAM XL allows for a distance up to 2 miles. Each of these remotes requires that the user is in the line of sight to the controller but does not require them to be any closer than the indicated distances.

The Hunter X-Core Series Has Top Quality Advanced Features

Like many of the Hunter controller series, the X-Core 6 station controller comes equipped with a variety of top-quality features that are favored by homeowners. This entry-level controller includes easy to retrieve memory technology, programmable rain delay, automatic short circuit protection, and seasonal adjustment options. Each of these advanced features is included to make programming and general irrigation operation easier for our customers.

Frequently Asked Questions

Is the Hunter X-Core Series expandable?

The X-Core series is available in 2, 4, 6, and 8 station fixed models. This means that these controllers are not modular and cannot be expanded with the addition of any expansion modules. If these stations are not preferred for your project, Sprinkler Warehouse recommends the Pro-C expandable controller, the PC-400 or PC-400i. These controllers include a base module of 4 stations and can be expanded with the additional purchase of the PCM-300 and PCM-900 expansion modules.

Which remotes work with the Hunter X-Core controller?

The X-Core series controller is compatible with the ROAM and ROAM XL remotes. Each of these remotes can be purchased separately at Sprinkler Warehouse's online irrigation store. The ROAM remote allows the user to operate their X-Core controller from a distance up to 1000 feet while the ROAM XL allows for operation up to 2 miles.

Does the X-Core series controller support Hydrawise software?

Unlike the Hunter X2, HC, Pro-HC and HPC controllers, the X-Core series does not support Hydrawise technology. For basic control and simple station numbering, the X-Core series is the solution. This controller has reliable features including seasonal adjustments, cycle and soak options, delay between stations and many more.

More Information
Brand Hunter
Expandability Fixed
Power Source AC Powered
Number of Programs 3
Start Times Per Program 4
Max Station Run Time (HRS) 4
Indoor Yes
Sensor Compatible Rain, Freeze
Rain Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Residential
Warranty 2 Years
Series XC
Zones 6
Enclosure Type Indoor
Manual (2.09 MB)
Guide (789.71 kB)
