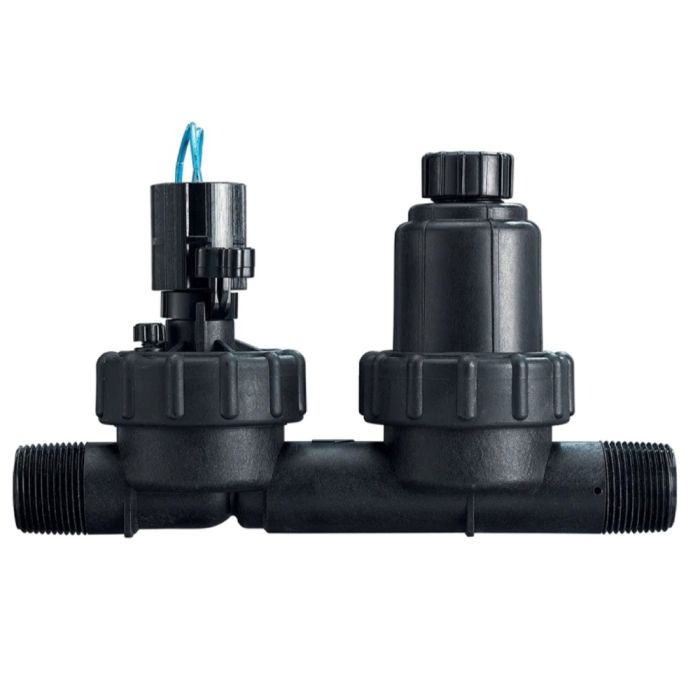

Hydro-Rain 0.1 - 5 GPM Drip Zone Assembly 1 in. MNPT | HRZ-100-MM-30

In stock
SKU
HRZ-100-MM-30
Free Shipping on Orders over $149
Sales Price $31.85 Our Price $47.25 You save 33%

Hydro-Rain 0.1 - 5 GPM Drip Zone Assembly 1 in. MNPT

  • Size: 1 in.
  • Connection: MNPT
  • Flow Rate: 0.1 - 5 GPM

Features & Benefits

An industry first. The HRZ Series all-in-one drip control zone lays claim to being the industry’s first “one-piece” low-flow irrigation zone valve, filter, and regulator combination—so compact that it fits snugly in a 6" round valve box, and two fit comfortably in a 10" box. On the outside, the HRZ control zone beats competition’s PVC construction hands down by offering the strength, durability, and environmental friendliness of commercial-grade, glass-filled polypropylene. The internals is just as impressive.

The valve design allows it to handle flows as low as 0.1 GPM and as high as 5.0 GPM while withstanding pressures up to 120 PSI. The filter module contains a 200 mesh filter that keeps lines free of debris and features the easy serviceability of a jar top with a flush port. The integrated pressure regulator module provides a constant pressure of 30 PSI. Best of all, the HRZ micro-irrigation control zone comes "drip-ready" with a Drip-Lock adapter that enables true Built for Speed installation. Also available in universal valve-less versions that include only the regulator, filter, and Drip-lock adapter, adaptable to most brands of  1" or 3/4" irrigation valves.

Product Details

  • Ultra Low-flow allows operation at the lowest possible flows to boost water savings.
  • The smallest overall footprint reduces control zone kit and valve box waste.
  • 100% Recyclable materials, PVC-free!
  • Stainless Steel 200 mesh filter provides a large surface area for low maintenance.
  • Compact designs fit snugly in 6" round valve box or you can fit four in a standard box.
  • One-piece construction features a low-flow valve, filter, and pressure regulator (HRZ-100-VFR-30 only).
  • 1" Low-flow valve operates efficiently from 0.1~5 GPM (HRZ-100-VFR-30 only).
  • Stainless steel metering ensures optimal diaphragm performance (HRZ-100-VFR-30 only).
  • Manual internal bleed enables water-efficient manual operation (HRZ-100-VFR-30 only).
  • Fast valve service pairs standard diaphragm with easy-to-service jar top (HRZ-100-VFR-30 only).
  • Fast filter service combines the speed of flush port with an easy-to-service jar top (HRZ-100-VFR-30 only).
Operating Range
  • Flow: 0.1~5.0 GPM (0.4~18.9 LPM)
  • Inlet Pressure: 20~120 PSI (1.4~8.3 BAR)
  • Regulated Pressure: 30 PSI (2.1 BAR)
  • Filtration: 200 mesh filter
Dimensions
  • Height: 5½" (13.9 cm)
  • Length: 9 3/8" (23.8 cm) HRZ-100-VFR-30 only
  • Length: 4 1/2" (11 cm)
  • Width: 3" (7.6 cm)


Electrical Specifications (HRZ-100-VFR-30 ONLY)

  • 24 VAC 50/60 HZ (Cycles/Sec) Solenoid
  • Inrush Current: .30 A (7.2VA) at 60 HZ
  • Holding Current: .19 A (4.6VA) at 60 HZ
  • Coil Resistance: 32 OHMS
Inlet Pressure (PSI) Flow (GPM)
31.3 0.2
32.1 1.0
35.3 2.0
40.2 3.0
46.0 4.0
52.3 5.0
More Information
Brand Hydro-Rain
Operating PSI 20 - 120 PSI
Filter 200 Mesh
Warranty 3 Years
Size 1 in.
Flow Rate 0.1 - 5 GPM
Connection MNPT
Pressure Regulator 30 PSI
Type Drip Zone Assembly
