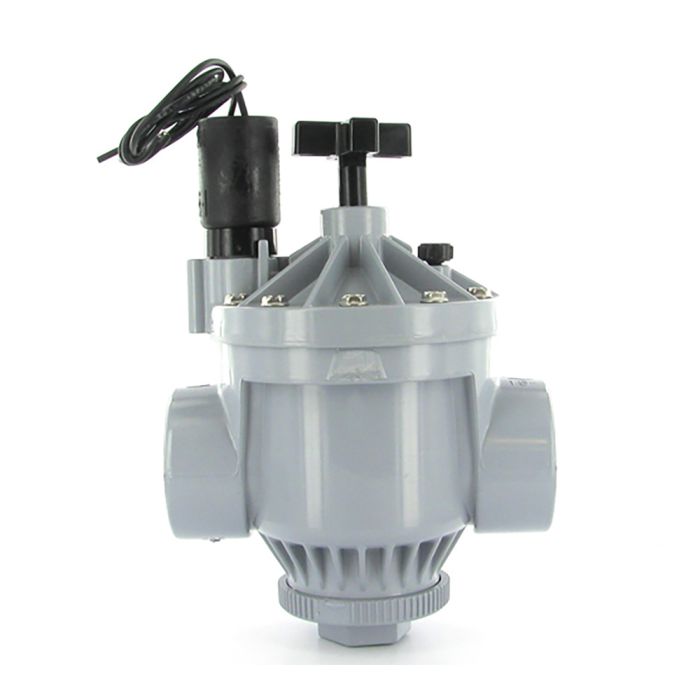

Irritrol 200B Inline / Angle Valve with Flow Control 1-1/2 in. FPT | 216B

SKU

216B

Sales Price $85.33 Our Price $130.95 You save 35%

Overview

Irritrol 216B 1.5 inch Globe/Angle Valve with Flow Control

1½" Irritrol 216B Valve
With Flow Control
1½" Female Threaded Inlet/Outlet

Features & Benefits

The Irritrol 200B Series globe/angle valves have built their popularity on a proven record of reliability and a reputation for offering valuable features at an affordable price. The 200B Series provides manual internal and external bleed, heavy-duty, UV-resistant PVC construction, stainless steel hardware, a double-beaded diaphragm and a captive solenoid plunger.

Heavy-duty, corrosion- and UV-resistant PVC construction with stainless steel spring and hardware provides consistent operation
Slow-closing design reduces water hammer and resulting stress on the system
Rugged, double-beaded SANTOPRENE diaphragm ensures a leak-proof seal
Internal and external bleed (flush mode) allows for manual operation
Accepts OmniReg modular pressure regulator ensures consistent performance
High-strength ribbed bonnet and bottom inlet increases durability
Unique three-way stainless steel Bonnet: Screws accept Phillips, flat-blade and hex-driver tools for easy servicing without removal from the system

Added Features

Flow control allows precise adjustment and manual shutoff
Buna-N valve seat seal
Unique threaded inlet plug O-ring seal prevents leaks
Encapsulated injection-molded solenoid with a captive hex plunger
Five-year warranty

Product Details

Operations Specifications

Flow range: 5-120 GPM
Pressure range: 20-150 psi

Electical Specifications

Solenoid: 24 V ac
Inrush volt-amp: 24 V ac-9.6 VA
Inrush current: .4 amp
Holding volt-amp: 24 V ac-4.8 VA
Holding current: .2 amp

Dimensions

214B: H: 6 12", W: 2 12", L: 4 12"
216B: H: 7 34", W: 4 14", L: 5 12"
217B: H: 8 34", W: 5 38", L: 6 14"

Friction Loss Data
FLOW RATE - GPM
MODEL	SIZE	GLOBE ANGLE	5	10	15	13	30	40	50	60	80	100	120
214B	1"	G	3.36	2.60	1.82	2.35	5.40
214B	1"	A	3.09	2.20	1.48	1.98	4.00
216B	1 ½"	G				3.04	2.66	2.33	2.97	4.14	5.62
216B	1 ½"	A				2.76	2.24	1.99	2.30	3.10	4.42
217B	2"	G				2.00	1.93	1.73	1.55	1.68	2.99	4.85	6.31
217B	2"	A				2.00	1.93	1.73	1.55	1.59	2.15	3.27	4.88
Pressure loss data are derived from valves independently tested by CIT, Fresno, CA.

Related Articles & Videos

Articles

Videos

Specs

More Information
Brand	Irritrol
Product Type	Angle Valves
Body Material	Heavy-Duty PVC
Flow Control	Flow Control
Valve Type	In-Line / Angle
Connection	FPT
Application	Residential
Solenoid	Yes
Warranty	5 Years
Size	1-1/2 in.
