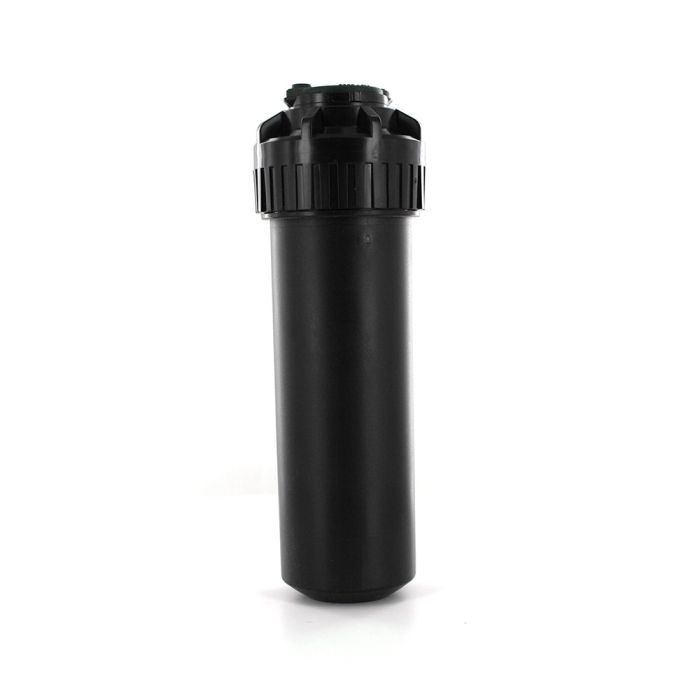

Rain Bird 5000 PLUS Pressure Regulated Rotor 4 in. | 5004-PLPCS-R

In stock
SKU
5004-PLPCS-R
Free Shipping on Orders over $149
Sales Price $17.95 Our Price $35.68 You save 50%
of 20
$17.59 / each
of 800
$17.23 / each

Rain Bird 5000 PLUS Pressure Regulated Rotor 4"

  • Rain Bird 5000 PLUS Pressure Regulated Rotor
  • Series: 5000 PL R
  • Pop-Up Height: 4 inches

Features & Benefits

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet. The 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout. The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money. Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Purple cover for non-potable water use
  • Heavy-duty cover assembly for extra durability in residential or commercial applications
  • Rain Curtain Nozzles
  • The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down
  • Tree of nozzles including four low angle (Angle of Trajectory 10) and eight standard angle Rain Curtain Nozzles (Angle of Trajectory 25) provides 25 to 50 (7,6 to 15,2 m) distance of throw (Included)
  • Award-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25' to 35' (7,6 to 10,7 m)
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Five-year trade warranty
  • 40 - 360 arc rotation and reversing full circle rotation in one
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • True 4" (10 cm), 6" (15,2 cm) and 12" (30,5 cm) pop-up (measured from the cover to the nozzle)
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in "gritty" water
  • Seal-A-Matic (SAM) check valve holds up to 7 feet (2,1 m) of elevation change, to prevent puddling and erosion caused by low head drainage
  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance

  • PRS saves water by:
    • Eliminating head-to-head pressure variations
    • Eliminating misting due to high pressure
  • Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter PGP (using UPG model) rotor cases without digging up the entire body
  • Pressure: 25-75 psi (1,7 to 5,2 bar)

Product Details

  • Pop-up Height: 4 (10,2 cm)
  • Overall body height: 4: 7 3/8 (18, 5 cm)
  • Exposed surface diameter: 1-5/8" (4,1 cm)
  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
  • 3/4" (20/27) NPT female bottom threaded inlet
  • PLPC Models: Reversing full and part circle adjustment 40 360
  • PLFC Models: Full circle only adjustment 360
Brand:
Rain Bird
Type:
Rotor
Application:
Residential And Commercial
Inlet Size:
3/4
Body Height:
7-3/8
Pressure Range (PSI):
25-75
Warranty:
5 Years
Pop-Up Height:
4 in.
Check Valve:
Check Valve
Flow Control:
Flow Shut-off
Riser Material:
Plastic
Spray Pattern:
Part Circle Adjustable (40 - 360)
Advance Features:
Check Valve, Pressure Regulation, Flow Shut-Off
Manual (1.38 MB)
Cutsheet (1.73 MB)
Cutsheet (729.07 kB)
