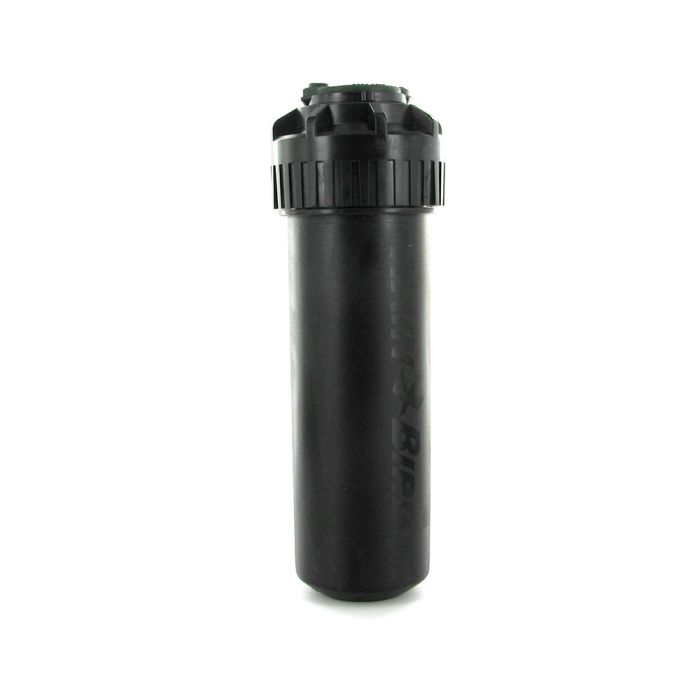

Rain Bird 5000 PLUS Pressure Regulated Rotor 4 in. | 5004-PLPC-R

In stock
SKU
5004-PLPC-R
Free Shipping on Orders over $149
Sales Price $12.95 Our Price $32.67 You save 60%
Case of 20
$12.69 / each
Case of 800
$12.43 / each

Rain Bird 5000 PLUS Pressure Regulated Rotor 4"

  • Flow Rate: 0.73 - 9.63 GPM
  • Check Valve: No Seal-A-Matic
  • Pop-Up Height: 4 inches

Features & Benefits

The Rain Bird 5000 Series Rotor is designed to deliver superior water distribution and larger water droplets, eliminating tough dry spots. The 5000 Series Rotor is a rugged mid-range gear-drive rotary sprinkler, offering durability, great performance, and the convenience of arc adjustment from the top. This versatile rotor offers a standard rubber cover and the convenience of reversing full-and part-circle operation (up to 360 degrees) in one unit. And, with a tree of Rain Curtain nozzles, the 5000 Series Rotor offers excellent distribution for top-notch efficiency. All of this and a proven gear-driven design, is what makes the 5000 Series Rotor one head that will "Take Performance to the Top."

  • The 5000 Series Rotor Sprinkler is available in 4", 6", 12" and Shrub models.
  • Standard Rubber Cover for extra protection and easy identification.
  • Heavy-duty cover assembly for extra durability in residential and commercial applications.
  • Enhanced Rain Curtain Nozzles - Increased radius range with less flow per nozzle - New Micro-Ramps for superior close-in watering - Nozzle Extraction Feature for easy rotor maintenance
  • Heavy-duty retractable spring assures positive pop-down
  • Tree of nozzles including low angle (Angle of trajectory 10 degrees) and standard angle Rain Curtain nozzles (Angle of trajectory 25 degrees) provides 25 to 50 ft (7 to 15,2 M) distance of throw.
  • Top-adjust arc adjustment requiring only a flat-bladed screwdriver
  • Water-lubricated gear-drive design for durable, reliable operation
  • 40- 360 degrees Arc Rotation for reversing Full-and Part-Circle rotation in one. (A non-reversing full circle only unit is also available).
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • True 4" (10 cm) pop-up (measured from the case cover to the nozzle)
  • Pressure activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional o-rings and seals for extra protection in "gritty" water

Product Details

  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
  • PRS saves water by: - Eliminating head-to-head pressure variations - Eliminating misting due to high pressure - Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter PGP (using UPG model) rotor cases without digging up the entire body
  • Pressure: 25-75 psi (1,7 to 5,2 bar)
  • Pop-up height: Shrub: 4" (10 cm); 6" (15 cm); 12" (30 cm)
  • Overall body height: Shrub: 7 ¾" (19,7 cm), 4": 7 ⅜" (18, 5 cm); 6": 9 ⅝" (24,5 cm); 12": 16 ⅞" (42,9 cm)
  • Exposed surface diameter: 1 ⅝" (4,1 cm) *Note: Pop-up height measured from cover to the nozzle. Overall body height is measured popped down.
  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
  • Precipitation rate: .20 to 1.01 inches per hour (5 to 26 mm/h)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: .73 to 9.63 gpm (0,17 to 2,19 m3/h)
  • ¾" (20/27) NPT female bottom threaded inlet
  • Reversing full-and part-circle adjustment 40 - 360 degrees
  • Full circle only adjustment 360 degrees

Includes:

  • 1 complete set of standard nozzles per rotor
  • 1 Set of Instructions (1 per shipment)
  • Adjustment tool not included since standard flat-head screwdriver is sufficient

Related Articles & Videos

Articles

Videos

Standard Angle Rain Curtain Nozzle Performance

PRESSURE PSI NOZZLE RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
25
1.5 33 1.12 0.20 0.23
2.0 35 1.50 0.24 0.27
2.5 35 1.81 0.28 0.33
3.0 36 2.26 0.34 0.39
4.0 37 2.91 0.41 0.47
5.0 39 3.72 0.47 0.54
6.0 39 4.25 0.54 0.62
8.0 36 5.90 0.88 1.01
35
1.5 34 1.35 0.22 0.26
2.0 36 1.81 0.27 0.31
2.5 37 2.17 0.31 0.35
3.0 38 2.71 0.36 0.41
4.0 40 3.50 0.42 0.49
5.0 41 4.47 0.51 0.59
6.0 43 5.23 0.54 0.63
8.0 43 7.06 0.74 0.85
45
1.5 35 1.54 0.24 0.28
2.0 37 2.07 0.29 0.34
2.5 37 2.51 0.35 0.41
3.0 40 3.09 0.37 0.43
4.0 42 4.01 0.44 0.51
5.0 45 5.09 0.48 0.56
6.0 46 6.01 0.55 0.63
8.0 47 8.03 0.70 0.81
55
1.5 35 1.71 0.27 0.31
2.0 37 2.30 0.32 0.37
2.5 37 2.76 0.39 0.45
3.0 40 3.47 0.42 0.48
4.0 42 4.44 0.48 0.56
5.0 45 5.66 0.54 0.62
6.0 47 6.63 0.58 0.67
8.0 50 8.86 0.68 0.79
65
1.5 34 1.86 0.31 0.36
2.0 35 2.52 0.40 0.46
2.5 37 3.01 0.42 0.49
3.0 40 3.78 0.45 0.53
4.0 42 4.83 0.53 0.61
5.0 45 6.16 0.59 0.68
6.0 48 7.22 0.60 0.70
8.0 50 9.63 0.74 0.86

Low Angle Nozzle Performance

PRESSURE PSI NOZZLE RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
25
1.0 LA 25 0.76 0.22 0.26
1.5 LA 27 1.15 0.30 0.35
2.0 LA 29 1.47 0.34 0.39
3.0 LA 29 2.23 0.51 0.59
35
1.0 LA 28 0.92 0.21 0.25
1.5 LA 30 1.38 0.30 0.34
2.0 LA 31 1.77 0.35 0.41
3.0 LA 33 2.68 0.47 0.55
45
1.0 LA 29 1.05 0.23 0.26
1.5 LA 31 1.58 0.32 0.37
2.0 LA 32 2.02 0.38 0.44
3.0 LA 35 3.07 0.48 0.56
55
1.0 LA 29 1.17 0.25 0.29
1.5 LA 31 1.76 0.35 0.41
2.0 LA 33 2.24 0.40 0.46
3.0 LA 36 3.41 0.51 0.58
65
1.0 LA 29 1.27 0.27 0.32
1.5 LA 31 1.92 0.38 0.44
2.0 LA 33 2.45 0.43 0.5
3.0 LA 36 3.72 0.55 0.64
Brand:
Rain Bird
Type:
Rotor
Application:
Residential And Commercial
Inlet Size:
3/4
Body Height:
7-3/8
Pressure Range (PSI):
25-65
Warranty:
5 Years
Pop-Up Height:
4 in.
Check Valve:
No Check Valve
Flow Control:
Flow Shut-off
Riser Material:
Plastic
Spray Pattern:
Part Circle Adjustable (40 - 360)
Advance Features:
Pressure Regulation, Flow Shut-Off
Brochure (975.33 kB)
Extra Info (263.36 kB)
Manual (1.38 MB)
Specifications (558.12 kB)
