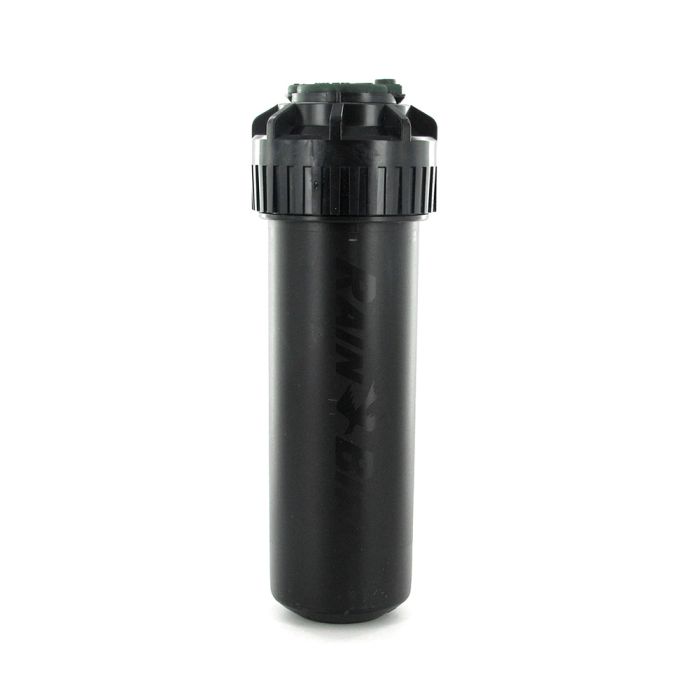

Rain Bird 5000 PLUS Rotor 4 in. | 5004-PLFC

Name: Rain Bird 5000 PLUS Rotor 4 in. | 5004-PLFC
Brand: Rain Bird
SKU: 5004-PLFC
Price: 12.29 USD
Availability: InStock

SKU

5004-PLFC

Sales Price $12.29 Our Price $20.75 You save 41%

Quantity of 20

$11.98 / each

Overview

Rain Bird 5004-PLFC 4 in. Pop-Up Full Circle Rotor

Series: 5000 PL
Pop-Up Height: 4 inches
Rotor Tool Sold Separately

Features & Benefits

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet. The 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout. The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money. Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Faster maintenance with a new self-cleaning arc adjustment screw
Standard rubber cover for extra protection. 5000 Plus/5000 Plus PRS feature a green cover while the 5000 features a black cover
Heavy-duty cover assembly for extra durability in residential or commercial applications
Rain Curtain Nozzles
The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
Slip clutch mechanism for quick adjustment on installation
Heavy-duty retract spring assures positive pop-down
Tree of nozzles including four low angle (Angle of Trajectory 10) and eight standard angle Rain Curtain Nozzles (Angle of Trajectory 25) provides 25 to 50 (7,6 to 15,2 m) distance of throw
ward-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25to 35 (7,6 to 10,7 m)
Top-adjust arc adjustment requiring only a flat-blade screwdriver
Five-year trade warranty
Non-adjusting 360 degree spray pattern full circle only
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
True 4 (10 cm), 6 (15,2 cm) and 12 (30,5 cm) pop-up (measured from the cover to the nozzle)
Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional O-rings and seals for extra protection in gritty water

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Product Details

4 in. 5000 Series Full-Circle Pattern Pop-up Rotor with Flow Shut-Off
Heavy-duty cover assembly for extra durability
Rain Curtain™ Nozzles
Slip clutch mechanism for quick adjustment on installation
Heavy-duty retract spring assures positive pop-down
360° full circle arc rotation
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional O-rings and seals for extra protection in "gritty" water

Includes:

1 complete set of standard nozzles per rotor.
1 Set of Instructions (1 per shipment).
Adjustment tool not included since standard flat-head screwdriver is sufficient.

Standard Angle Rain Curtain Nozzle Performance

PRESSURE PSI	NOZZLE	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
25
	1.5	33	1.12	0.20	0.23
	2.0	35	1.50	0.24	0.27
	2.5	35	1.81	0.28	0.33
	3.0	36	2.26	0.34	0.39
	4.0	37	2.91	0.41	0.47
	5.0	39	3.72	0.47	0.54
	6.0	39	4.25	0.54	0.62
	8.0	36	5.90	0.88	1.01
35
	1.5	34	1.35	0.22	0.26
	2.0	36	1.81	0.27	0.31
	2.5	37	2.17	0.31	0.35
	3.0	38	2.71	0.36	0.41
	4.0	40	3.50	0.42	0.49
	5.0	41	4.47	0.51	0.59
	6.0	43	5.23	0.54	0.63
	8.0	43	7.06	0.74	0.85
45
	1.5	35	1.54	0.24	0.28
	2.0	37	2.07	0.29	0.34
	2.5	37	2.51	0.35	0.41
	3.0	40	3.09	0.37	0.43
	4.0	42	4.01	0.44	0.51
	5.0	45	5.09	0.48	0.56
	6.0	46	6.01	0.55	0.63
	8.0	47	8.03	0.70	0.81
55
	1.5	35	1.71	0.27	0.31
	2.0	37	2.30	0.32	0.37
	2.5	37	2.76	0.39	0.45
	3.0	40	3.47	0.42	0.48
	4.0	42	4.44	0.48	0.56
	5.0	45	5.66	0.54	0.62
	6.0	47	6.63	0.58	0.67
	8.0	50	8.86	0.68	0.79
65
	1.5	34	1.86	0.31	0.36
	2.0	35	2.52	0.40	0.46
	2.5	37	3.01	0.42	0.49
	3.0	40	3.78	0.45	0.53
	4.0	42	4.83	0.53	0.61
	5.0	45	6.16	0.59	0.68
	6.0	48	7.22	0.60	0.70
	8.0	50	9.63	0.74	0.86

Low Angle Nozzle Performance

PRESSURE PSI	NOZZLE	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
25
	1.0 LA	25	0.76	0.22	0.26
	1.5 LA	27	1.15	0.30	0.35
	2.0 LA	29	1.47	0.34	0.39
	3.0 LA	29	2.23	0.51	0.59
35
	1.0 LA	28	0.92	0.21	0.25
	1.5 LA	30	1.38	0.30	0.34
	2.0 LA	31	1.77	0.35	0.41
	3.0 LA	33	2.68	0.47	0.55
45
	1.0 LA	29	1.05	0.23	0.26
	1.5 LA	31	1.58	0.32	0.37
	2.0 LA	32	2.02	0.38	0.44
	3.0 LA	35	3.07	0.48	0.56
55
	1.0 LA	29	1.17	0.25	0.29
	1.5 LA	31	1.76	0.35	0.41
	2.0 LA	33	2.24	0.40	0.46
	3.0 LA	36	3.41	0.51	0.58
65
	1.0 LA	29	1.27	0.27	0.32
	1.5 LA	31	1.92	0.38	0.44
	2.0 LA	33	2.45	0.43	0.5
	3.0 LA	36	3.72	0.55	0.64

Specs

More Information
Brand	Rain Bird
Product Type	Rotors
Application	Residential And Commercial
Body Height	7-3/8
Inlet Size	3/4 in.
Pressure Range (PSI)	25-65
Warranty	5 Years
Spray Pattern	Full Circle (360)
Spray Radius	25 ft. - 50 ft.
Advanced Features	Flow Shut-Off
Series	5000 PLUS
Pop-Up Height	4 in.
Riser Material	Plastic
Flow Control	Flow Shut-off
Check Valve	No Check Valve
