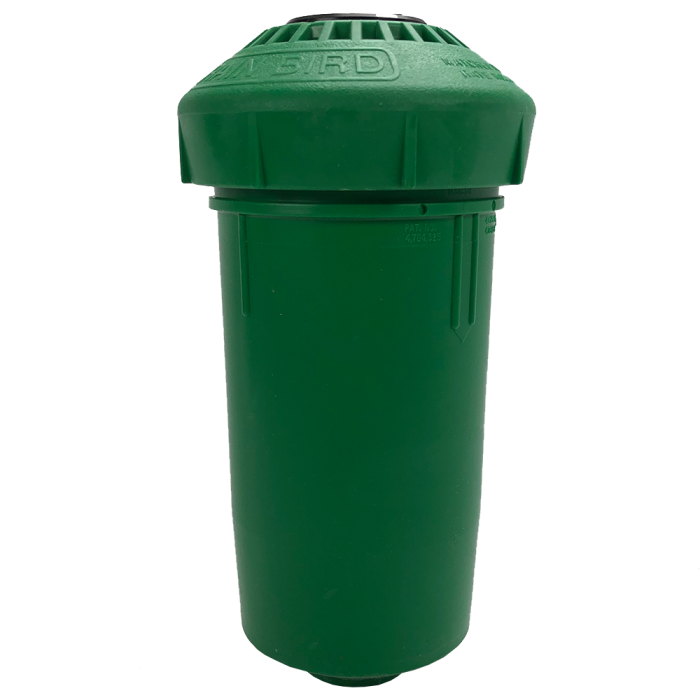

Rain Bird Rotor (TDR-50)
Features & Benefits
Closed case for trouble free performance
Quiet operation
Keeps dirt and debris out
Efficient use of water
Works with all major brands
Product Details
Applications
Covers medium to large areas- 24' x 24' or larger
Ideal for lawns or ground cover areas
Best suited for open areas with few obstructions
Excellent in grit, sand and heavy grass environment
Memory Arc automatically returns the water stream to the set pattern if vandalized
Water lubricated drive requires no oil and can't be stripped or inadvertently damaged
Tall 3 5/8" Pop-up stem clears tall grasses
Operating Ranges
Pattern Adjustment of 24 degrees to 360 degrees, preset at 180 degrees
Radius varies with pressure and nozzle size. Maximum (unadjusted) radius is 31' to 40'. Minimum (adjusted) radius is 24' to 32'. Three color coded nozzles included-Low, Medium and High
Recommend pressure range of 25 to 60 psi
Recommend overlap of 100% (head to head spacing)
