K-Rain ProSeries 150 FC Inline Valve with Flow Control 1 in. Slip | 7101-SL-FC

Name: K-Rain ProSeries 150 FC Inline Valve with Flow Control 1 in. Slip | 7101-SL-FC
SKU: 7101-SL-FC
Price: 17.95 USD
Availability: InStock

SKU

7101-SL-FC

Sales Price $17.95 Our Price $35.99 You save 50%

Overview

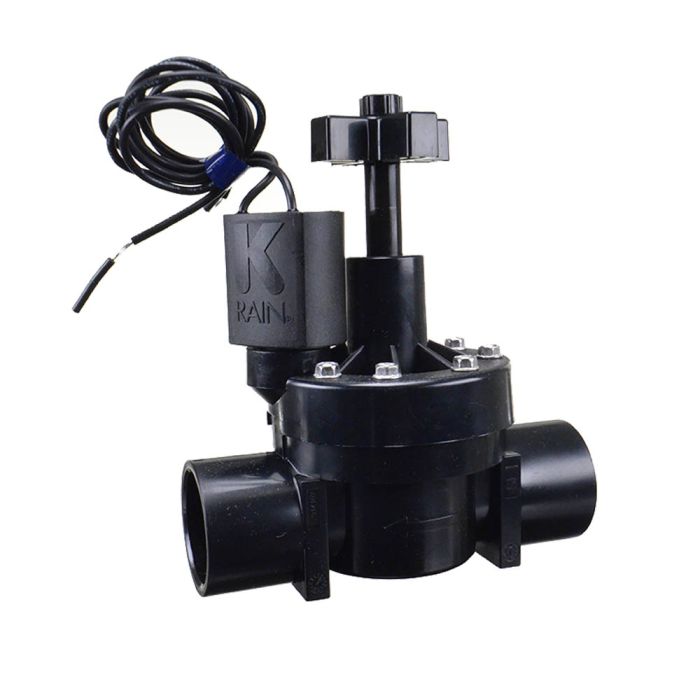

K-Rain ProSeries 150 FC In-Line Valve with Flow Control 1 in. Slip

Size: 1 in.
Connection: Slip
Application: Residential and Commercial

Features & Benefits

K-Rain's ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. The 1" valve has a removable metering pin and external bleed screw promoting easy maintenance and manual operation. The 1" valve provides the professional easy servicing access without removing the valve from the system.

Heavy-Duty, Corrosion and UV Resistant PVC
Construction - Increases the life of the valve.
Manual External Bleed Screw - Provides for manual operation in system start up.
Manual Internal Bleed through Solenoid - Provides for manual operation without discharging water outside the valve.
Captured Plunger - Allows for the solenoid to be removed without losing the internal plunger.
Heavy Duty Santoprene Diaphragm - Unique design improves durability of diaphragm.
External Bleed Screw with Removable Metering
Pin - Allows for easy cleaning of the metering pin without disassembling the valve.
Two Year Limited Warranty.

Specifications

Operating Specifications

Pressure range: 10-150 psi
Flow Range: .25 - 30 GPM

Electrical Specifications

Standard solenoid: 24 VAC 60 Cycle
Inrush current: .4 amp
Holding current: .2 amp

ProSeries 150 1" VALVE-7101 Dimensions

HEIGHT: 5-1/4" WIDTH: 3-1/8" LENGTH: 5"

ProSeries 150 1" VALVE-7101-J Dimensions

HEIGHT: 5-1/4" WIDTH: 3" LENGTH: 4-3/8"

NO TOOLS NEEDED

The K-Rain valve allows for quick and easy servicing after installation.

MANUAL EXTERNAL BLEED SCREW

The 1", 1-1/2", and 2" models feature a removable external bleed screw and metering pin to simplify cleaning and maintenance. With the External Bleed Screw, manual operation during start-up is easy.
