Rain Bird 3500 Rotor 4 in. | 3504-PC

In stock
Free Shipping on Orders over $149
Sales Price $10.95 Our Price $24.93 You save 56%
Case of 20
$10.73 / each
Pallet of 1500
$10.51 / each

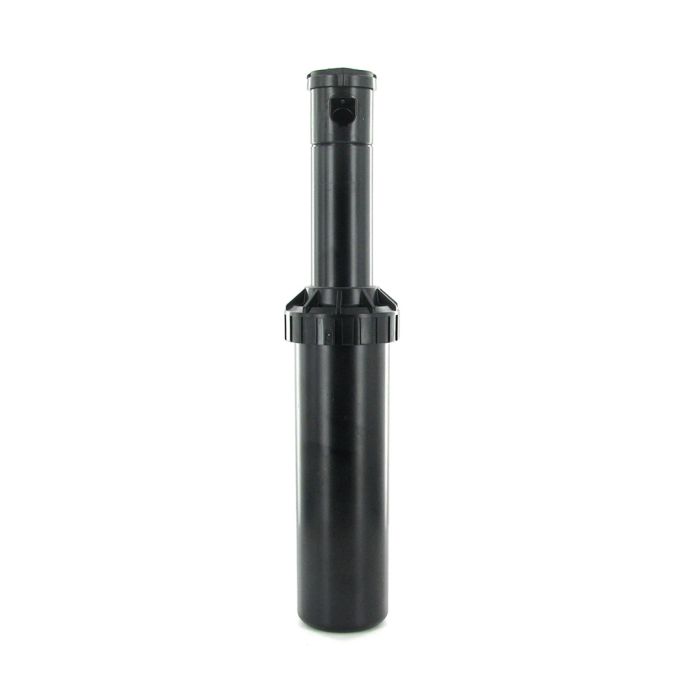

Rain Bird 3504-PC 4 in. Pop-Up Adjustable Arc Rotor

  • Rain Bird Rotor
  • Series: 3500
  • Pop-Up Height: 4 inch
  • Check Valve: No Seal-A-Matic


Features & Benefits

The Rain Bird 3500 Series Sprinkler Head is feature-packed and convenient irrigation rotor ready to take on the everyday requirements of residential and light commercial sprinkler systems.

The Rain Bird 3500 Series Rotor offers gear-drive technology for short to mid-ranges and adjusting the rotor's arc is a snap when using a flat head screwdriver. The versatility this rotor offers is second to none. With a nozzle tree of six Rain Curtain nozzles and the capability of reversing full and part circle operation, the Rain Bird 3500 Series Rotor offers versatility and convenience in one package. But that is just the tip of the iceberg with the Rain Bird 3500 Series Rotor!


    • 1 complete set of standard nozzles per rotor
    • 1 Set of Instructions (1 per shipment)
    • Adjustment tool not included since standard flat-head screwdriver is sufficient
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Three year professional customer satisfaction policy.
  • Shrub and 4" models available
  • True 4" (10 cm) pop-up (measured from center of nozzle)
  • 40- 360 degree Arc Part-Circle arc rotation and reversing Full-Circle rotation in one
  • Attachable nozzle tree of six Rain Curtain nozzles
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles
  • Quick Check Arc/Fast Forward
  • Dual action; positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Self-adjusting stator does not require replacement when changing nozzles
  • Water-lubricated gear-drive design for durable; reliable operation
  • Easily removable filter screen


  • Nozzle removal feature
  • Arc setting factory preset at 18 degrees for installation convenience
  • Optional non-potable cover for easy identification of reclaimed water
  • Optional Seal-A-Matic (SAM) check valve holds up to 7 feet (2;1m) of elevation change; to prevent puddling and erosion caused by low head drainage

Product Details

  • Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)
  • Radius: 15 to 35 feet (4;6 to 10;7 m)
  • Radius may be reduced up to 35% with Radius Reduction Screw
  • Pressure: 25-55 psi (1;7 to 3;8 Bars)
  • Flow Rate: .54 to 4.6 gpm (;12 to 1;04 m 3/h)
  • 1/2" NPT female bottom threaded inlet
  • Reversing Full-and Part-circle adjustment 40 degrees - 360 degrees
  • Pop-up height shrub: 4" (10;2 cm)
  • Overall body height shrub: 6.6" (16;8 cm)
  • Exposed surface diameter: 1.16" (2;9 cm)
  • Note: Pop-up height measured from cover to center of nozzle. Overall body height is measured popped down.
More Information
Brand Rain Bird
Type Rotor
Application Residential
Inlet Size 1/2
Body Height 6-3/5
Pressure Range (PSI) 25-55
Warranty 3 Years
Pop-Up Height 4 in.
Check Valve No Check Valve
Riser Material Plastic
Spray Pattern Part Circle Adjustable (40 - 360)
