Rain Bird 3500 Rotor Shrub | 3500S-PC-SAM

SKU
3500S-PC-SAM
Free Shipping on Orders over $149
Sales Price $12.78 Our Price $21.95 You save 42%

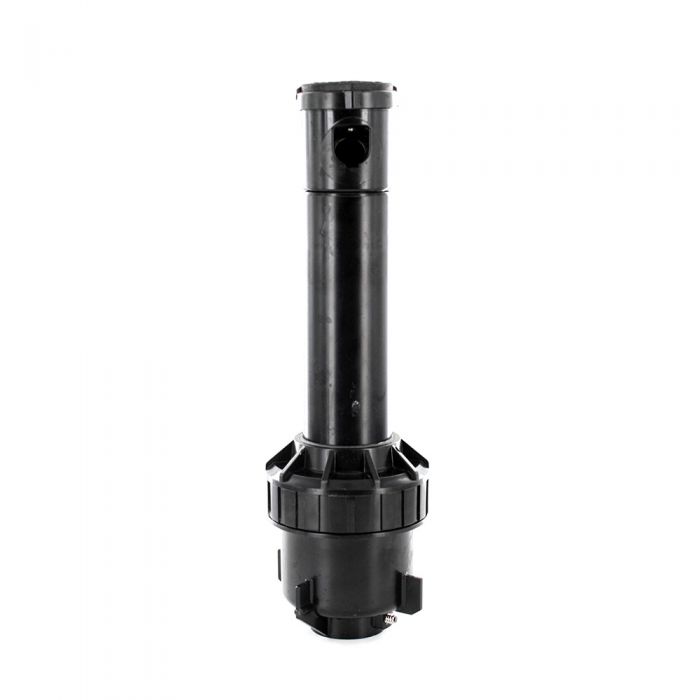

Rain Bird 3500S-PC-SAM Shrub Rotor with Seal-A-Matic Check Valve

The 3500 Series Rotor is an easy to use short to mid-range 1/2" gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy.

This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles and the convenience of reversing full and part circle operation (up to 360 degrees) in one unit. Plus, a nozzle removal feature and easily removable filter screen makes maintenance a breeze.

All of this, an affordable price and a 3-year factory warranty makes the 3500 Series one rotor that is easy to use, easy to buy and tough to beat.

Features / Benefits

  • Top-adjust arc adjustment requiring only a flat-blade screwdriver.
  • Three year professional customer satisfaction policy.
  • 40- 360? Arc Part-Circle arc rotation and reversing Full-Circle rotation in one.
  • Attachable nozzle tree of six Rain Curtain™ nozzles.
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles.
  • Quick Check Arc/Fast Forward.
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction.
  • Self-adjusting stator does not require replacement when changing nozzles.
  • Water-lubricated gear-drive design for durable, reliable operation.
  • Easily removable filter screen.
  • Nozzle removal feature.
  • Arc setting factory preset at 180? for installation convenience.
  • Seal-A-Matic (SAM™) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage.

Manuals and Literature

  • Overall body height shrub: 6.6" (16,8 cm)
  • Exposed surface diameter: 1.16" (2,9 cm)
  • Note: Pop-up height measured from cover to center of nozzle. Overall body height is measured popped down

Specifications

  • Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)
  • Radius: 15 to 35 feet (4,6 to 10,7 m)
  • Radius may be reduced up to 35% with Radius Reduction Screw
  • Pressure: 25-55 psi (1,7 to 3,8 Bars)
  • Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)
  • 1/2" NPT female bottom threaded inlet
  • Reversing Full-and Part-circle adjustment 40? – 360?
More Information
Brand Rain Bird
Type Rotor
Application Residential
Body Height 6-3/5
Inlet Size 1/2 in.
Pressure Range (PSI) 25-55
Warranty 3 Years
Spray Pattern Part Circle Adjustable (40 - 360)
Spray Radius 15 ft. - 35 ft.
Advanced Features Check Valve
Series 3500
Pop-Up Height Shrub
Riser Material Plastic
Check Valve Check Valve
Specifications (558.12 kB)
