Rain Bird DVF In-Line Valve with Flow Control 1 in. Slip | 100-DVF-SS

In stock
SKU
100-DVF-SS
Free Shipping on Orders over $149
Sales Price $17.85 Our Price $38.69 You save 54%
Case of 20
$17.49 / each

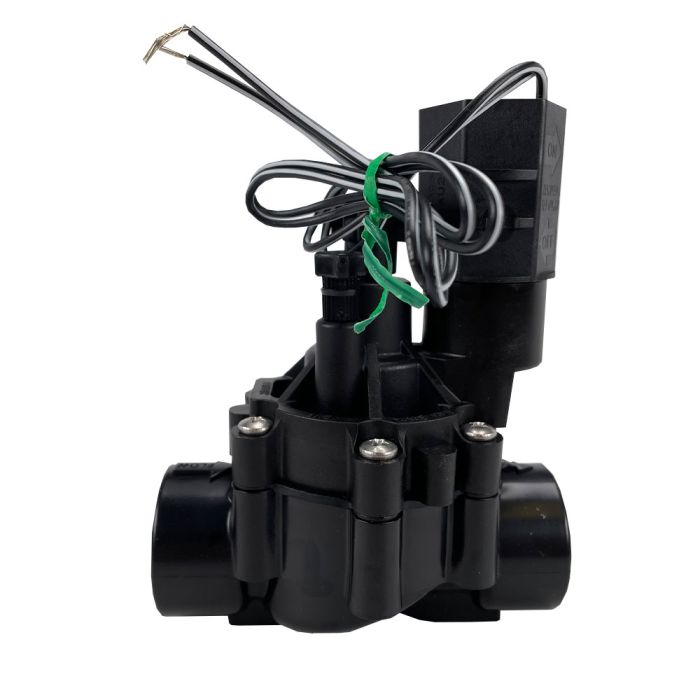

Rain Bird DVF-SS 1" Slip Valve with Flow Control

  • 1" Rain Bird 100-DVF-SS Valve
  • With Flow Control
  • 1" Slip Inlet/ Outlet

The Industry's #1 Plastic Residential Irrigation Valves

Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required. All of our valves work with any standard sprinkler timer.

Features & Benefits

  • 1 in. Slip Valve with Flow Control
  • Double-filtered (Diaphragm and Solenoid) pilot-flow design for maximum reliability and grit resistance.
  • Balanced-pressure diaphragm for long life.
  • External bleed to manually flush the system of dirt and debris during installation and system start-up.
  • Internal bleed for spray-free manual operation.
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 microns) solenoid filter.
  • Buna-N diaphragm with self-cleaning 90 mesh (200 microns) pilot water filter and captive spring.
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream.
  • 1.25" (3,2 cm) stainless steel phillips head screws.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Unique, easy-to-turn pressure assisted flow control mechanism (DVF Models Only)
  • Five-year trade warranty.
  • One solenoid handle per order
  • Not recommended for use with two-wire control systems

Product Details

  • Pressure: 15 to 150 psi (1.0 to 10.4 bar)

  • 075-DV Non-Flow Control Model: 0.2 to 22 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.

  • 100-DV Non-Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.

  • 100-DVF Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.

  • Temperature: Up to 110° F (43° C)

  • Ambient air temperature: Up to 125° F (52° C)

  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.450A inrush current; 0.250A holding current

  • Solenoid coil resistance: 38 Ohms

Dimensions

DV Valves

  • Height: 4 1/2;" (11.4 cm)
  • Height (Angle): 5 1/2;" (14 cm)
  • Length:4 3/8;" (11.1 cm)
  • Length (Angle): 3 3/4;" (9.5 cm)
  • Length (MB): 5 3/4;" (14.6 cm)
  • Width: 3 1/3;" (8.4 cm)

DVF Valves

  • Height:5 3/5;" (14.2 cm)
  • Length:4 3/8;" (11.1 cm)
  • Length (MB):5 3/4;" (14.6 cm)
  • Width:3 1/3;" (8.4 cm)

Models

  • 075-DV: 3/4;" (20/27) NPT
  • 100-DV-NPT: 1" (26/34) NPT female x female*
  • 100-DV-SS: 1" (26/34) slip x slip
  • 100-DV-A: 1" (26/34) NPT female x female
  • 100-DV-MB: 1" (26/34) male x barb
  • 100-DVF-NPT: 1" (26/34) NPT female x female*
  • 100-DVF-SS: 1" (26/34) slip x slip
  • 100-DVF-MB: 1" (26/34) male x barb
  • *Available with BSP threads
DV and DVF Valve Pressure Loss (psi)
Flow GPM 075-DV 3/4 in. psi 100-DV/100-DVF 1 in. psi
1 3.2 3.3
3 3.9 3.6
5 4.2 3.8
10 5.0 3.8
20 7.7 5.1
30 - 6.4
40 - 8.6

DV and DVF Valve Pressure Loss (bar)
Flow m3/h l/m 075-DV 3/4 in. bar 100-DV/100-DVF 1 in. bar
0.23 4 0.22 0.23
0.60 10 0.26 0.24
1.20 20 0.29 0.26
3.60 60 0.45 0.32
4.50 75 0.53 0.35
6.00 100 - 0.41
9.00 150 - 0.59

100-DV Angle, MxB Valve Pressure Loss (psi)
Flow GPM 075-DV 3/4 in. psi 100-DV/100-DVF 1 in. psi
1 2.8 2.5
3 3.0 2.9
5 3.2 3.0
10 3.9 3.1
20 4.3 4.3
30 5.4 7.4
40 8.2 12.7
100-DV Angle, MxB Valve Pressure Loss (bar)
Flow GPM l/m 075-DV 3/4 in. bar 100-DV/100-DVF 1 in. bar
0.23 4 0.19 0.17
0.60 10 0.20 0.19
1.20 20 0.22 0.21
3.60 60 0.28 0.26
4.50 75 0.30 0.30
6.00 100 0.35 0.44
9.00 150 0.56 0.86
Brand:
Rain Bird
Type:
Valve
Body Material:
Heavy-Duty Plastic Body
Application:
Residential
Solenoid:
Yes
Size:
1 in.
Connection:
Slip
Flow Control:
Flow Control
Valve Type:
In-Line
Brochure (528.28 kB)
Manual (549.90 kB)
Manual (398.89 kB)
Specifications (337.36 kB)
