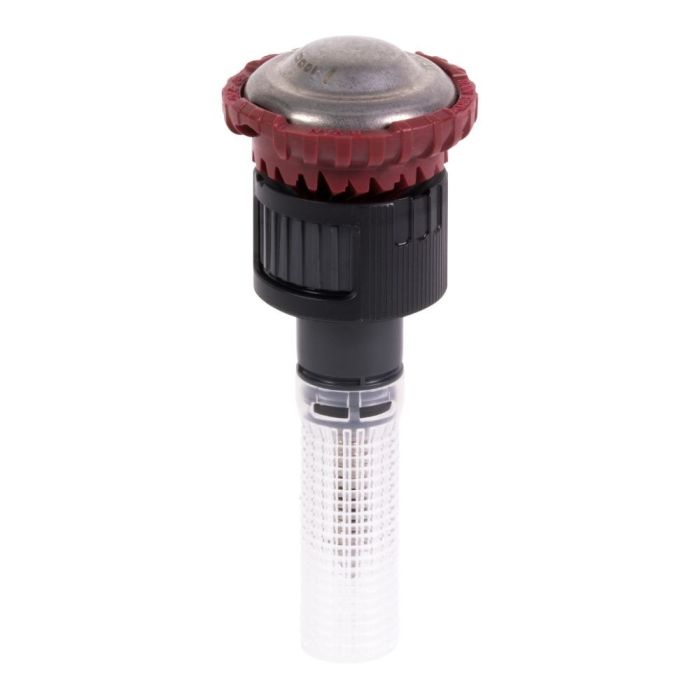

Rain Bird R-VAN 45 - 270 Degree Adjustable Rotary Spray Nozzle (17 - 24 ft.) | R-VAN24

Name: Rain Bird R-VAN 45 - 270 Degree Adjustable Rotary Spray Nozzle (17 - 24 ft.) | R-VAN24
Brand: Rain Bird
SKU: R-VAN24
Price: 4.44 USD
Availability: InStock

SKU

R-VAN24

Sales Price $4.44 Our Price $9.95 You save 55%

Quantity of 10

$4.41 / each

Quantity of 50

$4.32 / each

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Rain Bird R-VAN24 17-24 ft. Adjustable Rotary Nozzle (45 to 270 Degrees)

Type: Rotary Nozzle
PSI: 55
Radius: 17-24 Feet

Features & Benefits

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

Thick wind-resistant streams ensure efficient performance in adverse real world conditions. R-VAN's large water droplets cut through the wind so water stays in the target zone without misting or fogging. An exclusive manual flush feature keeps nozzles clear of dirt and debris even in extreme conditions.

Adjust arc and radius without tools.
Color coded for easy identification of R-VAN model
Low precipitation rate reduces run-off and erosion
Maintains efficient performance at high operating pressures without misting or fogging
Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
Matched precipitation rates across radius and arcs simplify the design process
Coverage up to 24' but when paired with Rain Bird 5000 Series Rotor matched precipitation rate (MPR) nozzles, irrigation designs from 13' to 35' (4.0 m to 10.7 m) can be easily handled

Operating Range

Pressure Range: 30 to 55 psi (2,1 to 3,8 bar)
Recommended Operating Pressure: 45 psi (3,1 bar)
Spacing: 13' to 24' (4.0 to 7.3 m)
Adjustments: Arc and radius should be adjusted while water is running

Realted Articles & Videos

Articles

Videos

Choosing A Spray Head

R-VAN24 17’ - 24’ (5.2 to 7.3m)
ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
270°
	30	19	1.80	0.64	0.74
	35	20	1.95	0.63	0.72
	40	22	2.31	0.61	0.71
	45	23	2.52	0.61	0.71
	50	24	2.82	0.63	0.73
	55	24	2.88	0.64	0.74

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
210°
	30	19	1.40	0.64	0.74
	35	20	1.52	0.63	0.72
	40	22	1.80	0.61	0.71
	45	23	1.96	0.61	0.71
	50	24	2.19	0.63	0.73
	55	24	2.24	0.64	0.74

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
180°
	30	19	1.20	0.64	0.74
	35	20	1.30	0.63	0.72
	40	22	1.54	0.61	0.71
	45	23	1.68	0.61	0.71
	50	24	1.88	0.63	0.73
	55	24	1.92	0.64	0.74

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
90°
	30	19	0.60	0.64	0.74
	35	20	0.65	0.63	0.72
	40	22	0.77	0.61	0.71
	45	23	0.84	0.61	0.71
	50	24	0.94	0.63	0.73
	55	24	0.96	0.64	0.74

Specs

More Information
Brand	Rain Bird
Type	Adjustable Rotary Nozzle
Max PSI	55 PSI
Operating PSI	30 - 55 PSI
Warranty	3 Years
Spray Pattern	Adjustable Arc
Connection	Female
Spray Radius	17 - 24 ft (R-VAN24)
