Irritrol CL-100-WIRELESS Climate Logic Wireless Weather Sensor System

Irritrol CL-100-WIRELESS Climate Logic

Wireless Weather Sensor System

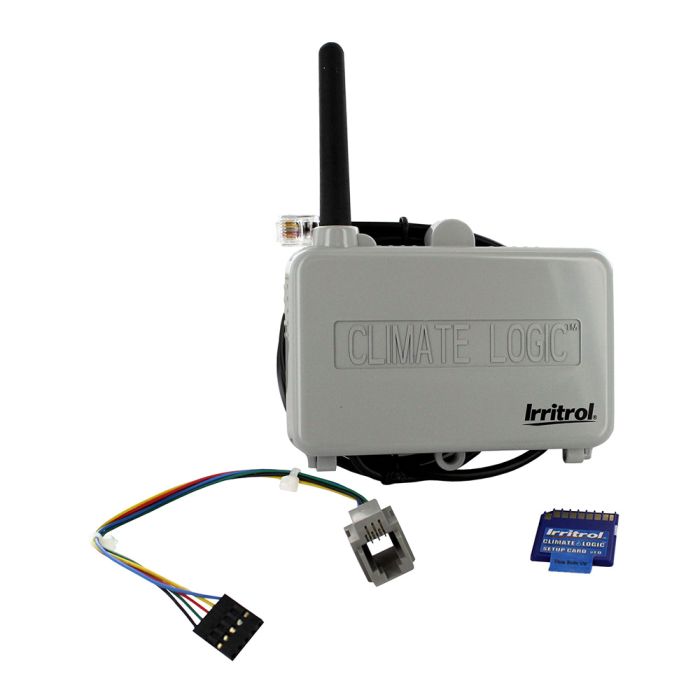

For simple, water saving, weather-following, automatic irrigation control, Irritrol introduces the Climate Logic weather system. Consisting of three components; a wireless transmitting weather sensor for installation outdoors, a receiver module to attach to the Irritrol controller, and an SD card with the 40 year, average, historical, weather information by zip code (or LAT/LON), the system monitors weather data, transmits them to the module then alters the controller's watering time to follow the weather. As for compatibility, the Climate Logic weather system works with the Rain Dial-R, the Total Control-R, KwikDial, and MC-E (blue) version 5.02 or later controllers. These controllers, installed with CLIMATE LOGIC, proved in official testing, they meet the criteria for the EPA WaterSense label.

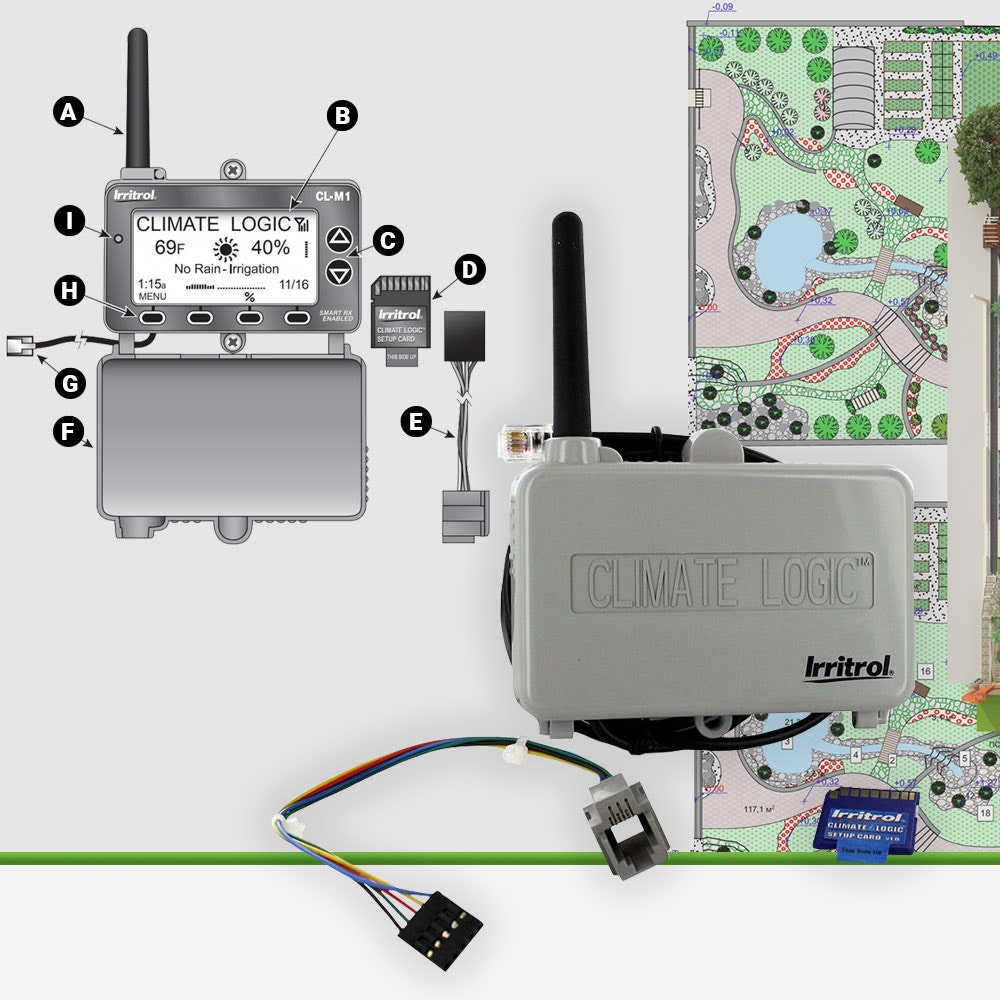

Diagram Details

• A Antenna
• B LCD Screen: Large-format LCD screen provides enhanced clarity and use of text and graphics.
• C Up/Down Arrow Keys: Control Menu cursor position, and adjust definable screen values.
• D Setup Card: Provides historical weather data for regional location specified by ZIP code or Lat/Lon coordinates.
• E CMR-ADP KwikDial Adaptor Cable: Adapts RJ25 connector to KwikDial controllers 5-pin receptacle.
• F Cover: Provides weather-resistance and display protection in closed position.
• G Connector Cable: Plugs into controllers remote control receptacle.
• H Multifunction Keys: Key function is configured for each screen as required.
• I LED Status Indicator: Remains On when irrigation is suspended; flashes when bypassed.
