Irritrol CL-W1 Wireless Climate Logic Weather Sensor

Free Shipping on Orders over $149
Sales Price $84.42 Our Price $147.95 You save 43%

Irritrol CL-W1 Wireless Climate Logic Weather Sensor

For simple, water saving, weather-following, automatic irrigation control, Irritrol introduces the Climate Logic weather system. Consisting of three components; a wireless transmitting weather sensor for installation outdoors, a receiver module to attach to the Irritrol controller, and an SD card with the 40 year, average, historical, weather information by zip code (or LAT/LON), the system monitors weather data, transmits them to the module then alters the controller's watering time to follow the weather. As for compatibility, the Climate Logic weather system works with the Rain Dial-R, the Total Control-R, KwikDial, and MC-E (blue) version 5.02 or later controllers. These controllers, installed with CLIMATE LOGIC, proved in official testing, they meet the criteria for the EPA WaterSense label.

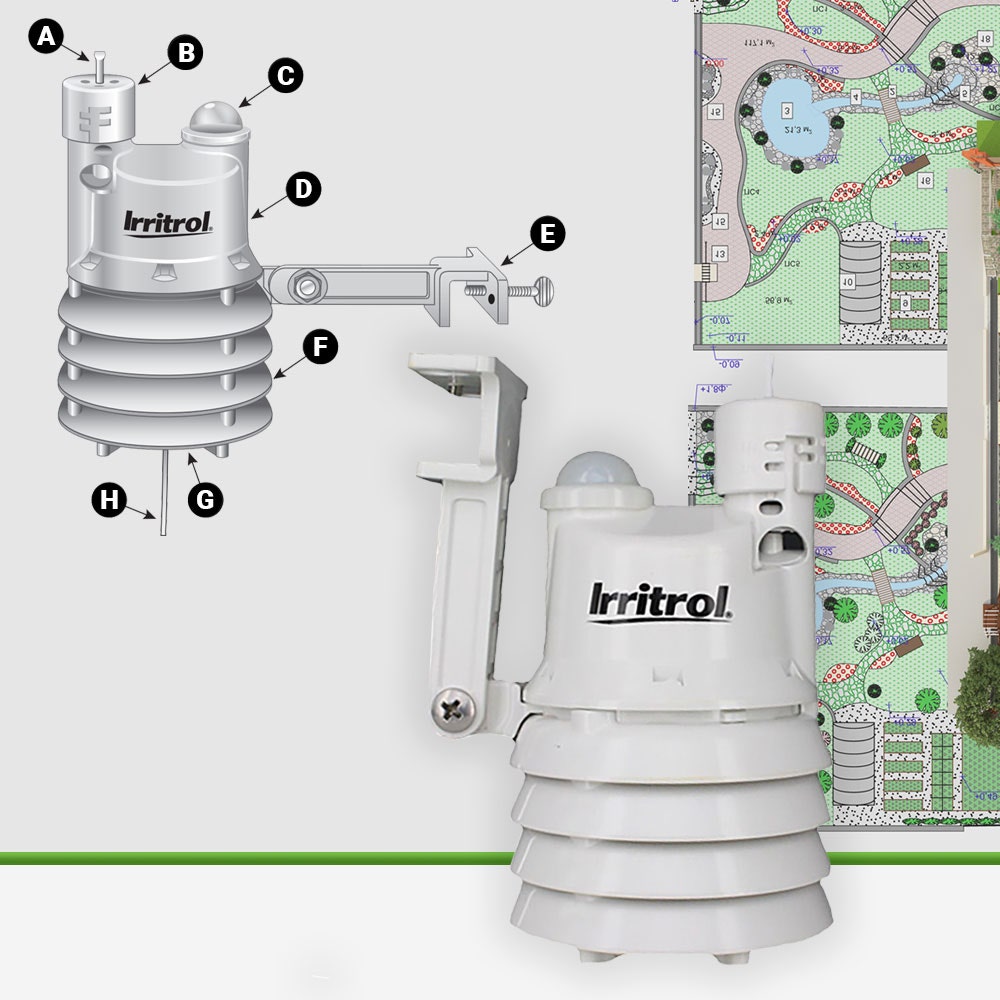

Diagram Details

  • A - Weather Sensor Test Pin - Pressed to simulate rain sensor operation and test communication.
  • B Rain Sensor Adjustment Cap - Adjusts Rain Sensor threshold to a nominal setting of 1/8" inc., 1/4" inc., 1/2" inc. or 3/4" inc. (3 mm, 6 mm, 12 mm or 19 mm) of accumulated rainfall.
  • C Solar Collector - Collects and measures solar radiation. Requires full exposure to sunlight.
  • D Battery Compartment - the factory-installed 9V-Alkaline battery can sustain normal Weather Sensor operations up to five years.
  • E QuickClipTM Mounting Bracket - Convenient QuickClip mounting bracket provides quick and easy Weather Sensor installation.
  • F Temperature Sensor (not shown)
  • G RF Transmission LED (not shown)
  • H Antenna Wire
Irritrol CL-W1 Wireless Climate Logic Weather Sensor
More Information
Brand Irritrol
Rain Yes
Freeze Yes
Solar Yes
Sensor Connection Wireless
Type Weather Sensor
Warranty 5 Years
Manual (8.52 MB)
